The Commercial pack - Bring High-Quality Audio into Your Business

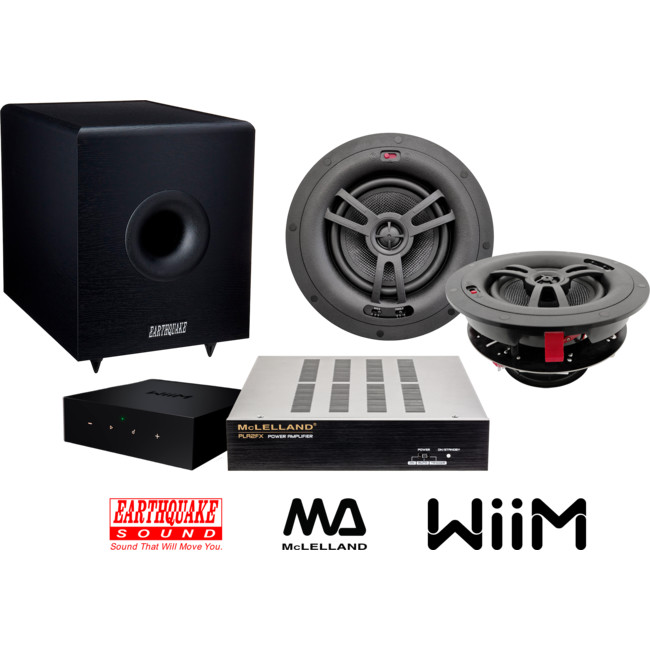

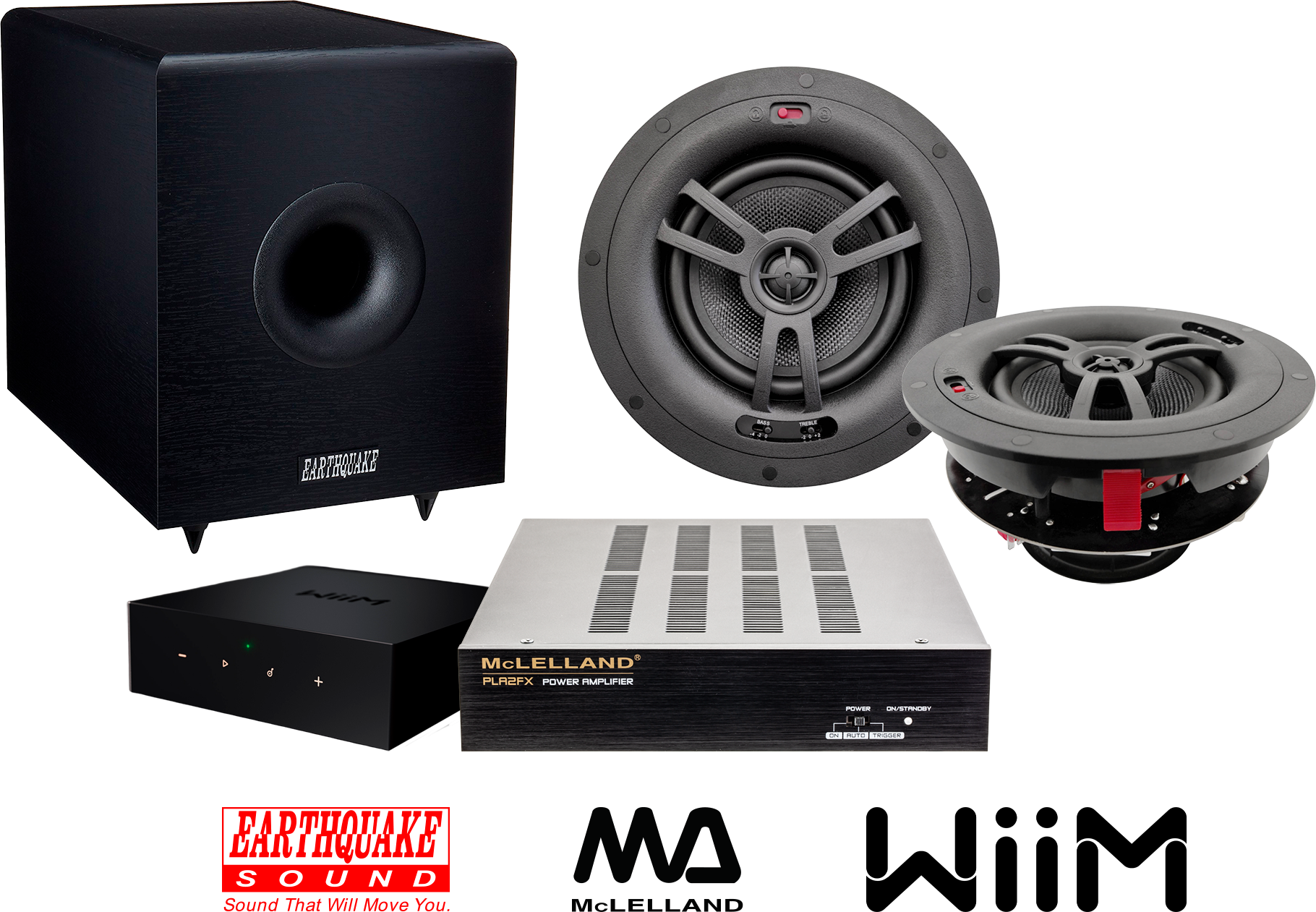

Kit Comprises:
- 1 x WIIM CIMODS Custom Install Audio Streamer (01614880)
- 1 x PLA2FX 2 x 120w DSP Amplifier (01458215)
- 1 x Pair Earthquake OH6 Ceiling Speakers (39816106)
- 1 x Earthquake SUB80 150W sub woofer (39816145)

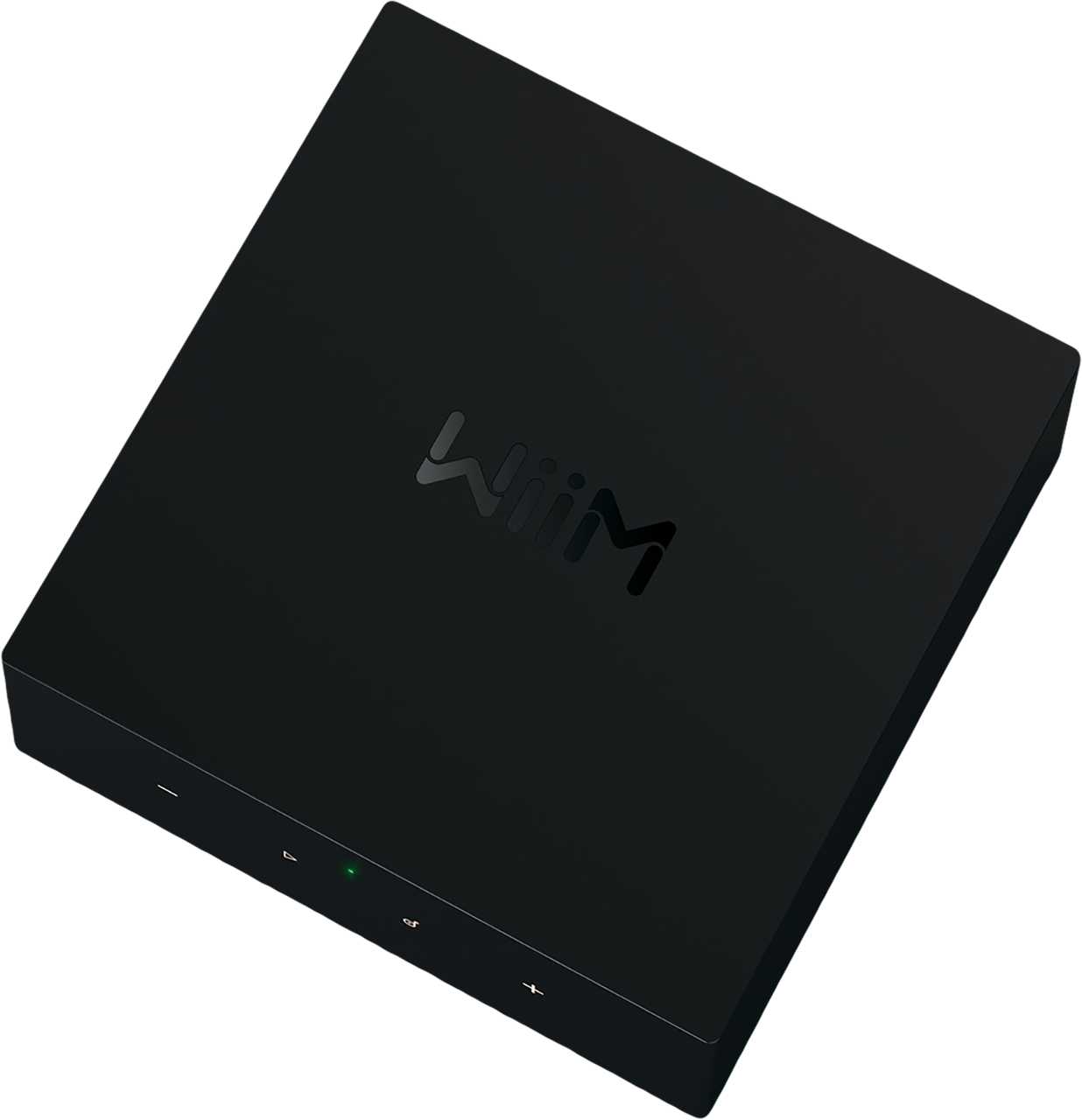

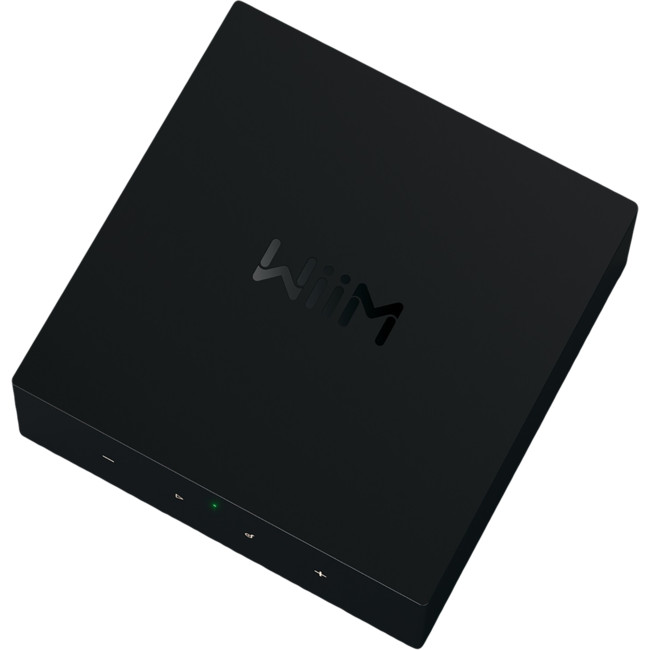

WiiM CI MOD S Custom Install Audio Streamer
The WiiM CI MOD S, an avant-garde lineup of streaming products meticulously tailored for the Custom Installation (CI) industry. This pioneering collection boasts exceptional features, including a trigger out, and a sleekly designed rack-mountable form factor, optimising space usage and perfectly aligning with the needs of modern integrators.
Compatible with Google Chromecast, Alexa Cast, and more, it serves as your gateway to Hi-Res streaming. Transform your current speakers and systems into intelligent hubs, effortlessly accessing your preferred music app, the WiiM Home App, or controlling it with your voice via Alexa, Google Assistant.
TheWiiM CI MOD Sis designed to elevate existing audio systems into intelligent hubs. It features:
- High-Quality DAC:Incorporates the AKM AK4493SEQ DAC for superior digital-to-analog conversion and pristine audio clarity.

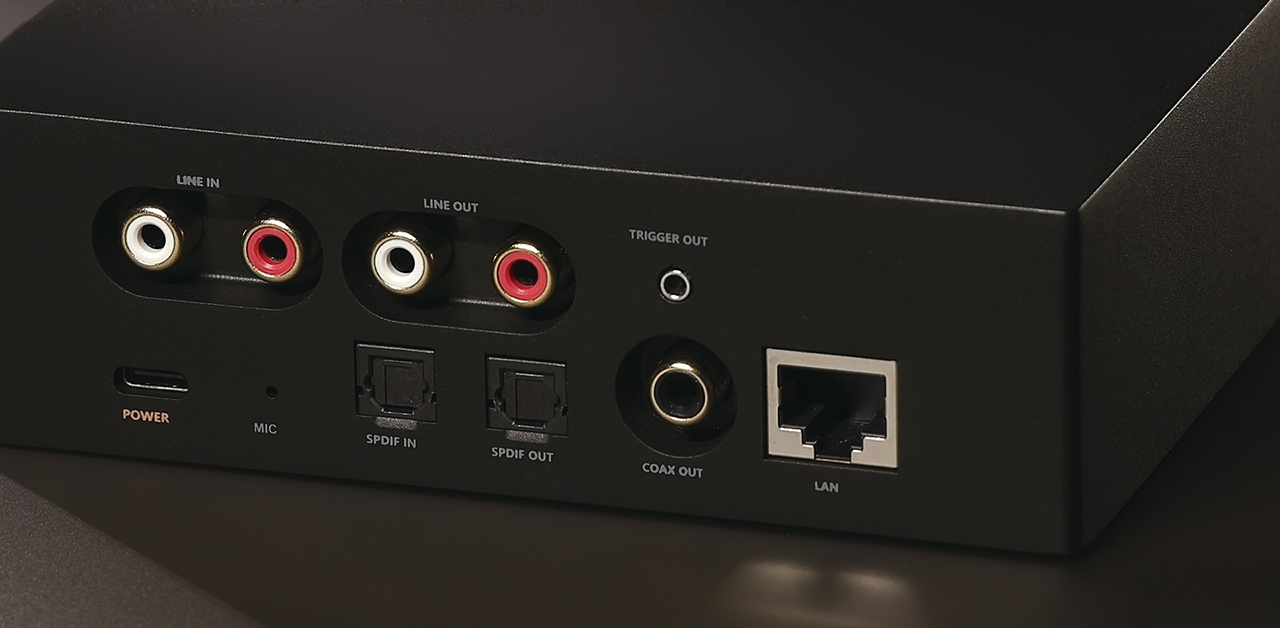

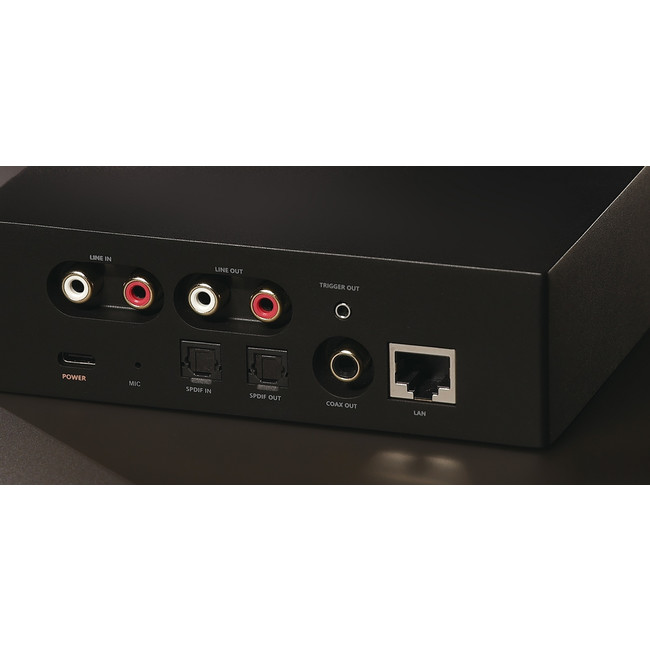

- Comprehensive Inputs and Outputs:Offers Line-In, Optical inputs, and Line-Out, Optical, Coax outputs, plus a 3.5mm trigger out.
- Rack-Mountable:Efficient design suitable for space-saving professional installations.
- Multiroom Streaming:Compatible with Amazon Echo, Google Home, and other WiiM devices.
- Advanced Streaming Services:Supports Chromecast Audio, Spotify, TIDAL Connect, Alexa Cast, and DLNA.
- Hi-Res Audio Playback:Allows gapless playback of Hi-Res music up to 24-bit/192 kHz.
- Dual Band Wi-Fi and Bluetooth® 5.0:Provides reliable wireless connectivity.
- Single Zone Control:Designed for single-zone audio management with ease.
PLA2FX 2 x 120w DSP Amplifier
ThePLA2FXpower amplifier is designed to provide powerful output to speakers used in stereo sound system, 2.1 home theaters, gaming media system and some other listening applications. With Class-D output circuitry, the switching mode power supply offers high efficiency and excellent performance. PLA2FX can be used as two channels, 2.1 channels or bridge as one channel amplifier.
With the LPF switch, it could also be used as a subwoofer amplifier. Built-in DSP (Digital Signal processing) microprocessor to adjust the audio input signal digitally for any kind of speaker and music. Therefore, with its compact size and extremely flexible, the PLA2FX can be used in many different applications.
Features
- Output power: 120W x 2 (@4 / 8 Ohm) 240W(Bridged)
- Class D circuit design in a compact size
- Built-in DSP with Ethernet interface
- RCA analog audio inputs
- Audio RCA PRE-OUT connector to additional amplifier
- Low Pass Filter (LPF) switch sets the amplifier as a subwoofer amplifier.
- Speaker output binding post connectors
- Selection for Power-Up mode (ON/AUTO/TRIGGER)
- TRIGGER IN/OUT could be an external remote ON/OFF
- Natural cooling without Fan
- Activated standby mode active after 15 minutes of no signal detected
- Red LED (Front Panel) to indicate Standby mode is active
- Protection: Short circuit, Overheating, Overvoltage, Overcurrent

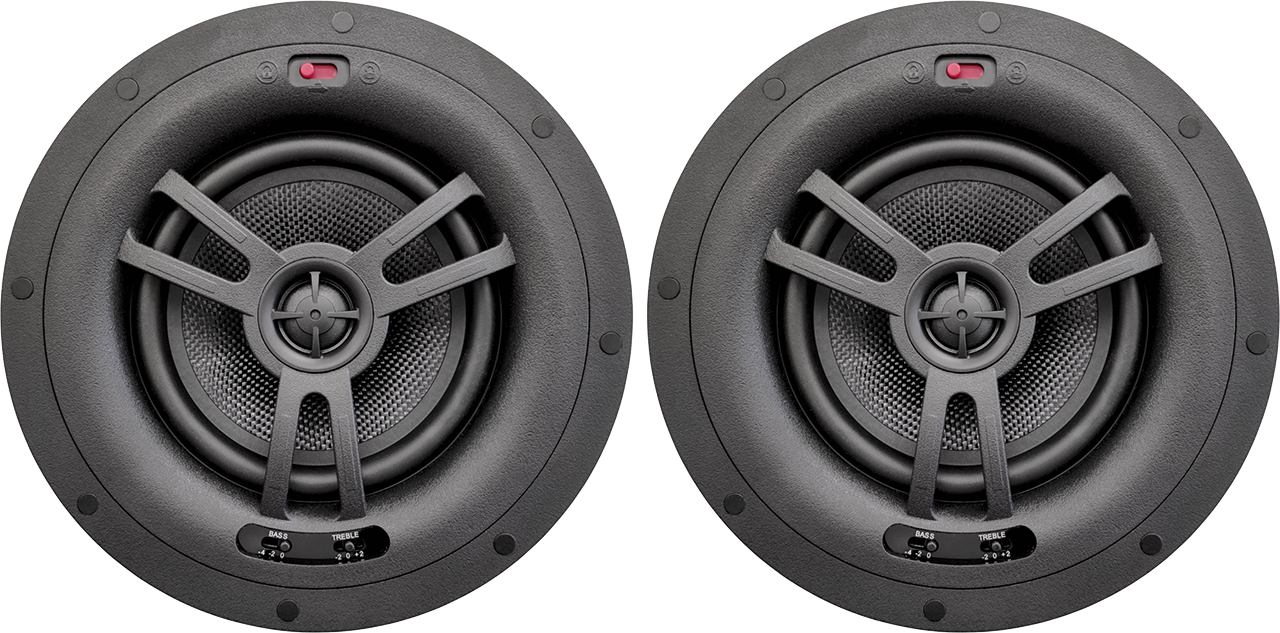

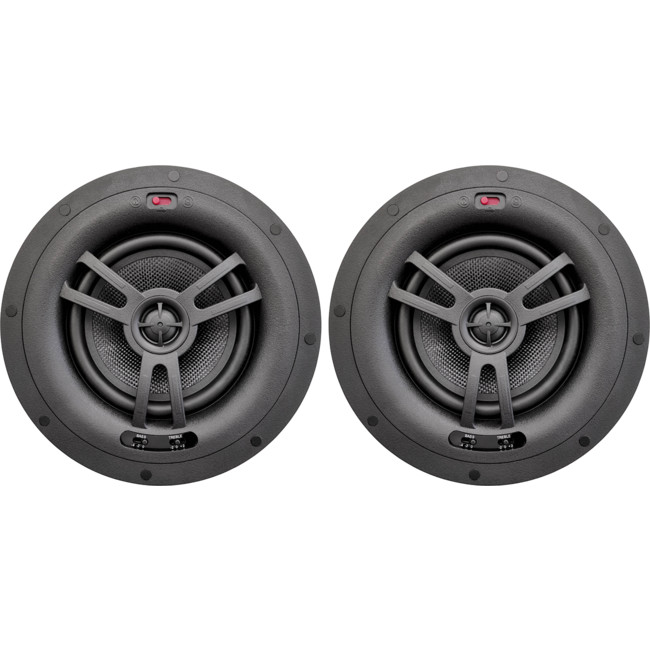

Earthquake OH6 Ceiling Speakers
Earthquake Sound recognizes that standing on top of a ladder to install speakers can be an aggravating task for anyone. The newest member of Earthquake’s line of architectural speakers addresses this issue and gives to you the OH6. Designed for a broad audience from the DIYer to the audio integrator, this in-wall/in-ceiling speaker is the perfect choice for any audio project. The 6.5" 2-way coaxial was made for both performance and ease of installation in mind.
Fitted with a revolutionary EZ Mount System, it sets itself apart from others in that it offers a frustration-free experience for all skill levels making yourinstallations ultra-fast and stupid simple. Constructed withquality components and compatible with a variety of wall thicknesses, the OH6 is an ideal choice for those who desirea more invisible or discrete integration. The OH6 is excellent whether it uses for music or home theater applications and will complement any new or pre-existing construction. Make your audio jobs a breeze and enjoy a rich, full-bodied sound with the all-new Earthquake Sound OH6.
Key Features
- Trimless round magnetically attached paintable Anti-Rust Magnetic Grilles
- 1" (25mm) adjustable pivoting silk dome neodymiumtweeter
- Low mass stiff carbon fiber cone woofer for a smooth, accurate, and detailed output
- In-wall or in-ceiling applications
- Dog ear locking mechanism

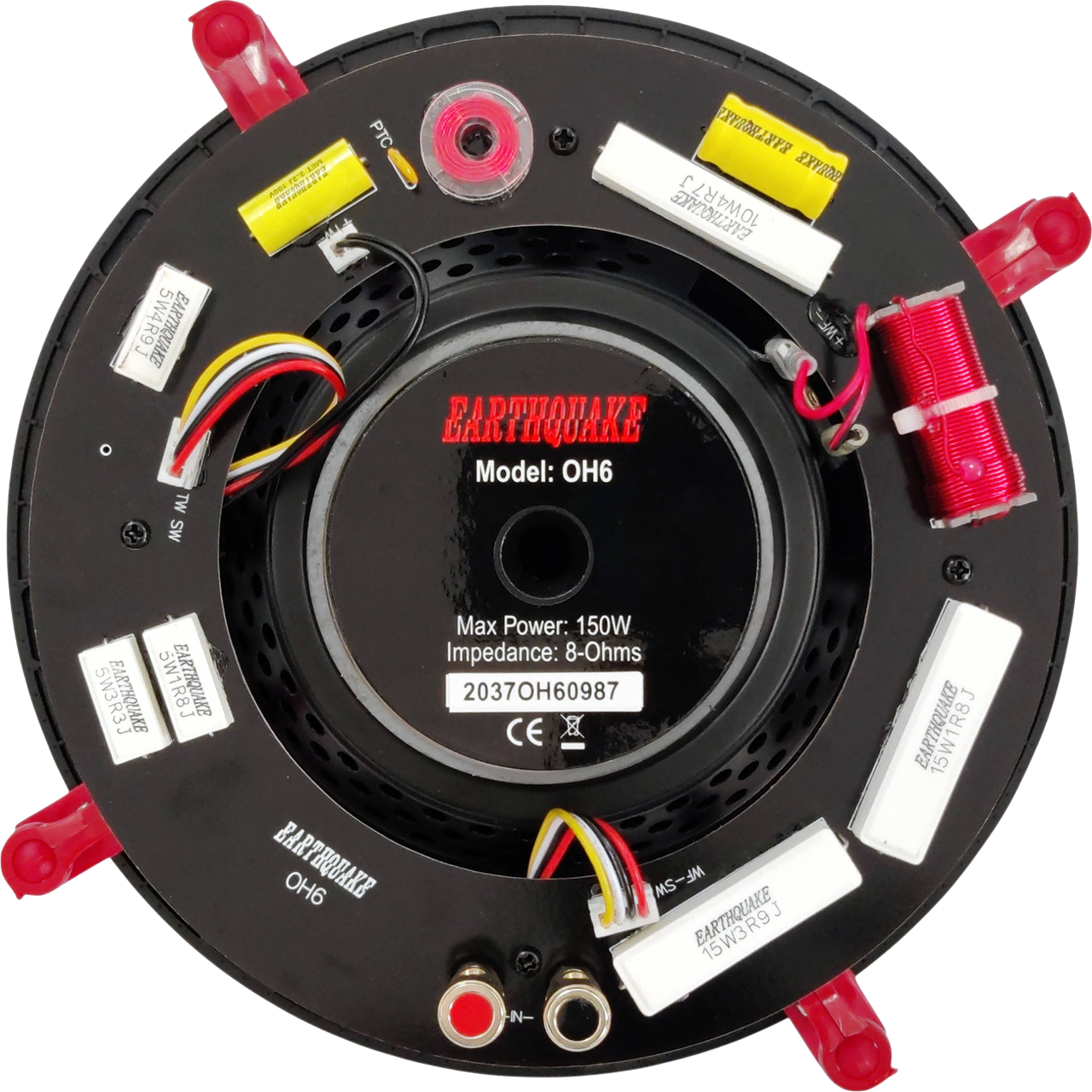

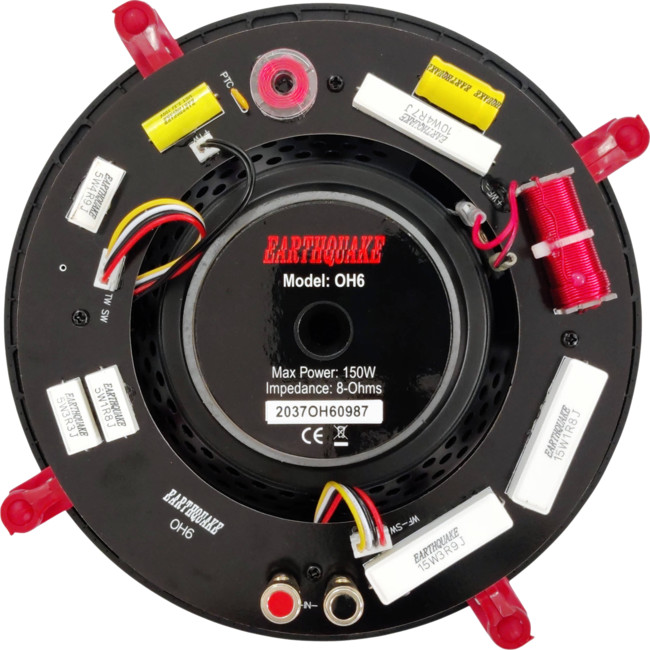

- Elaborate crossover network With Polyswitch Protection
- Gold plated spring-loaded terminals
- Grille removal tool included
- Sold by the pair
Earthquake SUB80
Is simply one of the best small subwoofers available today. This compact high powered sub is perfect for homes such as apartments, condos or even town homes where people cannot have 10", 12" or 15" subs.
The SUB80 has the capability to utilize ts amplifier power correctly and efficiently to deliver some serious basswithout the ugly and distorted bass often produced by other drivers of this size.The SUB80 has the potential to fill very large rooms with excellent bass response and thunderingsound effects.
{tab Specifications}
PLA2FX 2 x 120w DSP Amplifier
- Stereo Output : 120W x 2, 8Ω 120W x 2, 4Ω
- Bridged Output : 240W, 8Ω
- Frequency Response : 20 Hz ~ 20 kHz, /- 2 dB @ 4Ω Load
- Low Pass Filter: 150 Hz
- Signal to Noise : >90dB A WTD
- THD: < 0.05%
- Input Sensitivity : 500m V (-4 dBu)
- Gain Value : 36 dB @ 8Ω
- Input Impedance : >10k, unbalanced
- Maximum Input Level : 2.5V ( 10 dBu)
- Trigger In/Out: DC 12V
- Input Connectors: RCA jacks
- Trigger Connectors: 3.5 mm Jacks
- Output Connectors: Binding Posts, RCA (PRE-OUT)
- Power Requirements : 100 - 240 VAC, 50 - 60 Hz, 350W
- Standby Power Consumption : <3.0W
- Dimensions : 214mm(W) x 249.8mm(D) x 44mm(H)
- Net Weight: 1.9 Kg
Earthquake OH6 Ceiling Speakers
- Power Handling: 150W MAX
- Frequency Response: 50Hz–15kHz
- Impedance: 8-Ohm
- Sensitivity: 87dB 1W/1M
- Midrange/bass Size: 6.5"
- Woofer Material: Carbon Fiber
- Surround Material: Butyl Rubber
- Tweeter Size: 1" (25mm) Pivoting
- Tweeter Material: Silk Dome, Neodymium
- Grille Removal Tool Included
- Grille Finish: White/Paintable
- Rough-In Kit Ready
- Enclosure Material/Type Impact resistant ABS plastic
- Frame Diameter: 9.05" (230mm)
- Grille Diameter: 9.13" (232mm)
- Mounting Depth: 3.14" (80mm)
- Overall Depth: 3.5" (88.9mm)
- Cutout Diameter: 7.87" (200mm)
- Magnet Diameter: 3.34" (85mm)
- Weight: 3.9lbs (1.76kgs)
IN THE BOX
- 2 x OH6 Speakers
- 1 x Cutout Template
- 1 x Product Manual
- 1 x Grille Removal Tool
- 2 x Round Grilles
Earthquake SUB80
- Speaker level input - up to 10 volts
- RCA level (low) audio input
- 0.5 to 2.3 volts
- Auto Turn ON / signal detection circuitry
- 180° phase inverting switch
- Unobstrusive and easy to position
- Versatile set-up options with broad compatibility
