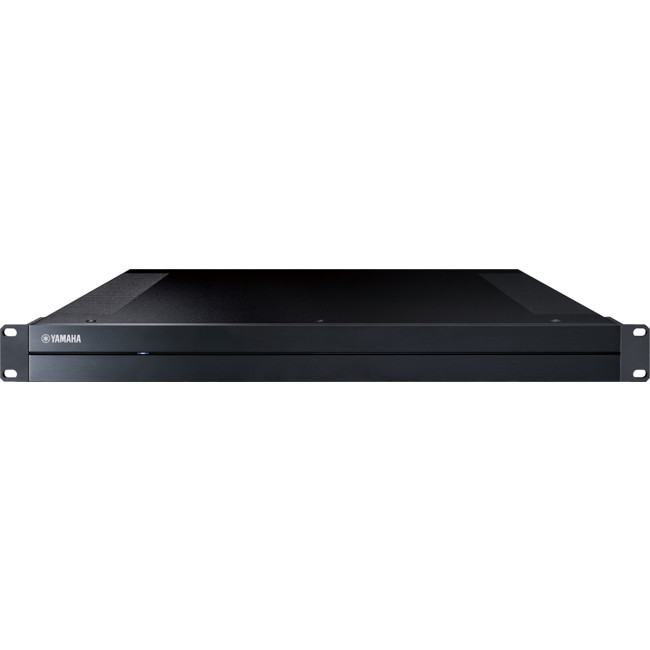

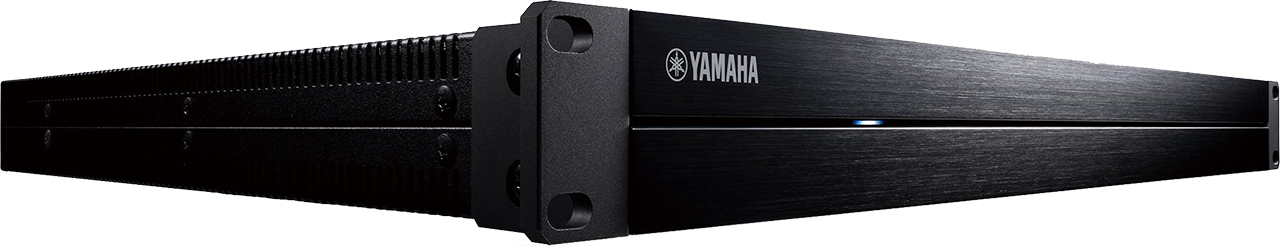

| Multi-Room Amplifier |
| Network Section | File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV/ FLAC / AIFF: up to 192 kHz / 24-bit |
| Ethernet | Yes (2 terminals) |
| AirPlay | Yes |
| Audio Specifications | Channel | 8 channel (2 channel x 4) |
| Minimum Speaker load Capability | 4 ohm |
| BTL Connection | Yes |

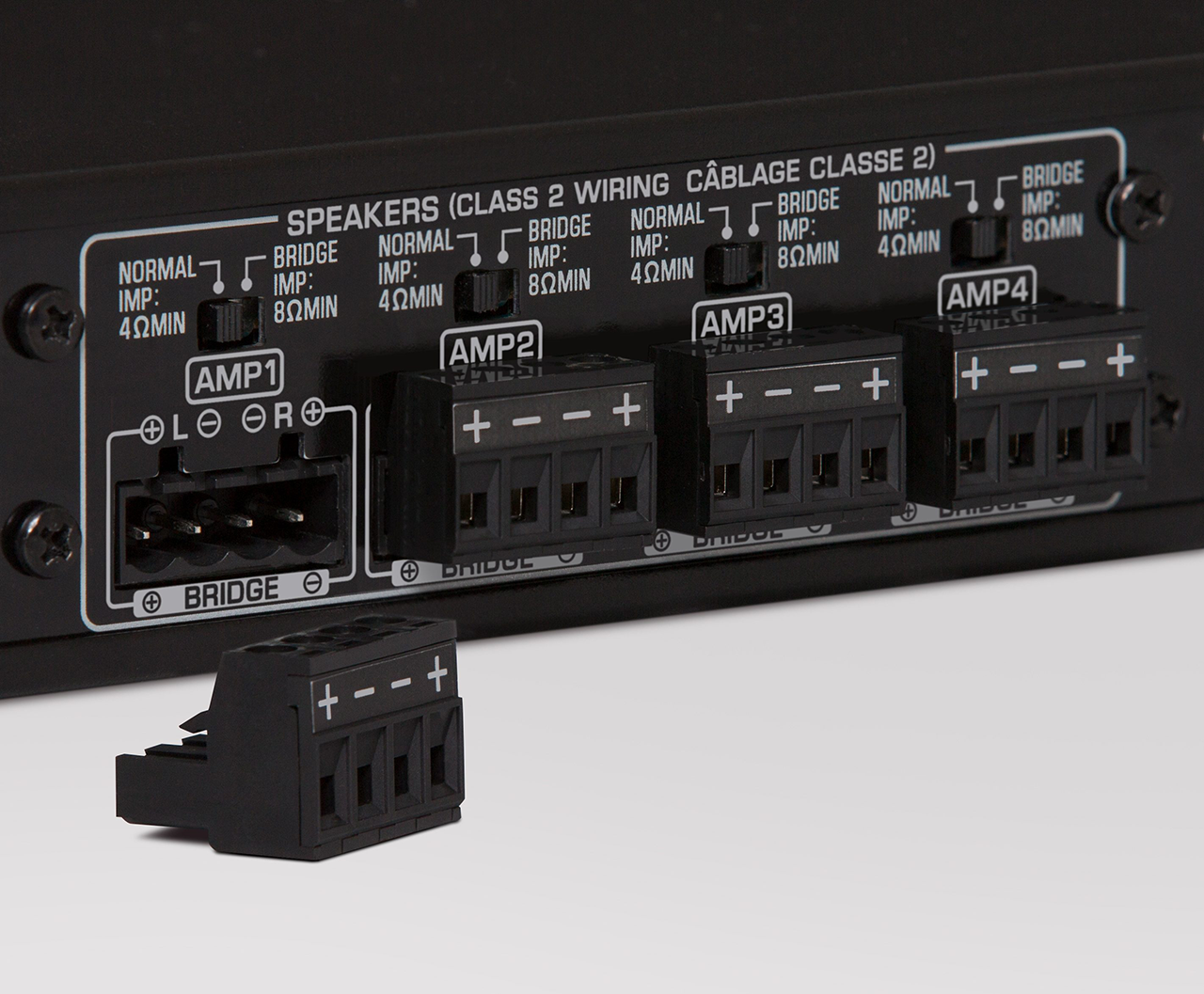

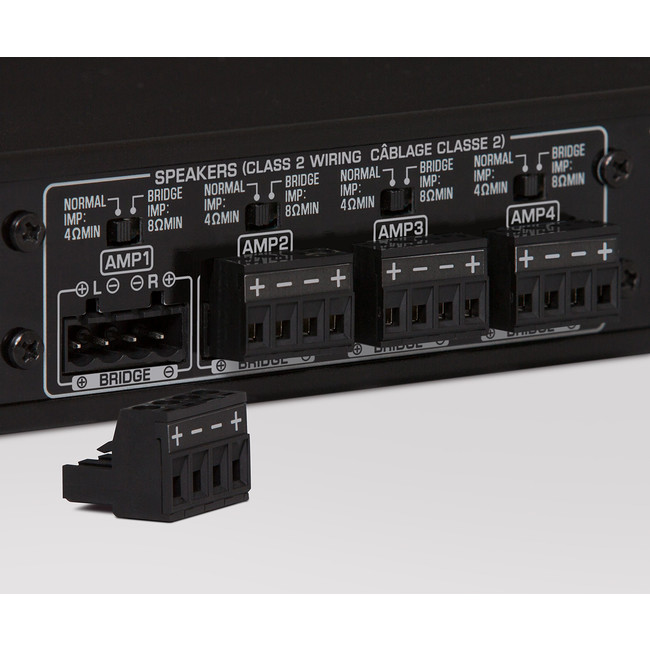

| Speaker Output Terminal | 4 (Euroblock) |
| Preout Terminal | 4 |
| Audio Input Terminal | RCA: 2 (CUT IN, AUX), USB: 4 |
| Audio Output Terminal | RCA (2-ch through out): 2 (CUT IN, AUX) |
| Trigger In / Out | 0 / 4 |
| Remote In / Out | 1 / 1 |
| Chime | 4 |
| Rated Output Power (1 kHz, 0.9% THD, 2ch driven) | Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W |
| Rated Output Power (1 kHz, 0.9% THD, 1ch driven) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W |
| Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W |
| Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W |
| Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W |
| Maximum Effective Output Power | [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W |
| Total Harmonic Distortion | [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005% |
| Frequency Response | [1 kHz 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz |
| Signal to Noise Ratio | [PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB |
| Rated Output Level / Output Impedance | [PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm |
| Maximum Output Level | [PRE OUT L / R, 0.9% THD] 4.0 V |
| Maximum Input Signal | [PRE OUT L / R, 0.9% THD] 2.4 V |
| Gain | [SP OUT 1 V Input] 25.8 dB |
| Input Sensitivity | [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V |
| Web Setup | Yes |
| Direct Mode | Yes |
| Monaural Downmix | Yes (stereo playback or monaural downmix selectable) |
| Compressed Music Enhancer | Yes |
| Volume Adaptive EQ | Yes |
| Volume Control | Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB~ 0 dB, Step: 0.5 dB |
| EQ Characteristics | [Bass] Variable Width: 6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: 6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: 6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz |
| Bass Extension | Yes |
| General | Power Consumption | 130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W |
| Standby Power Consumption | Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W |
| Power Management (Auto Power Standby) | 5 / 20 min, 2 / 4 / 8 / 12 hours selectable |
| Dimension (W × H × D) mm | [Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8” |
| Weight | 6.3 kg; 13.9 lbs. |
