DA11ABL-WP-US-V2 WHITE BLUETOOTH & ANALOG AUDIO DANTE

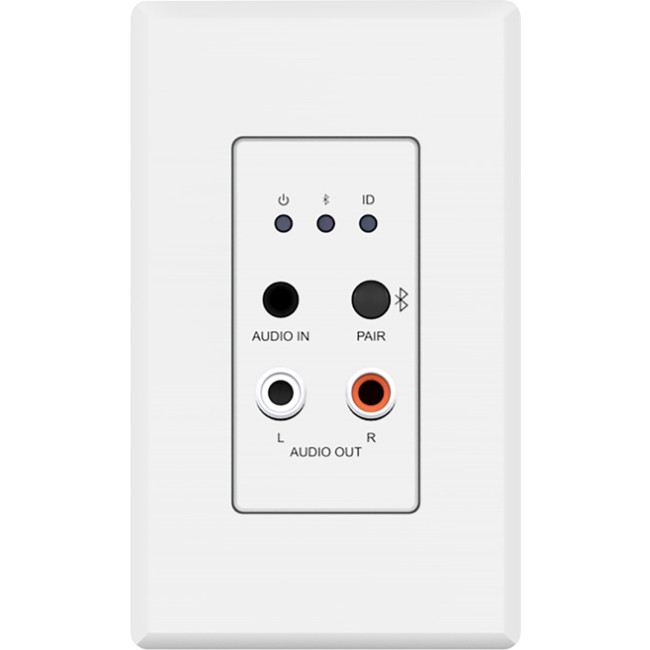

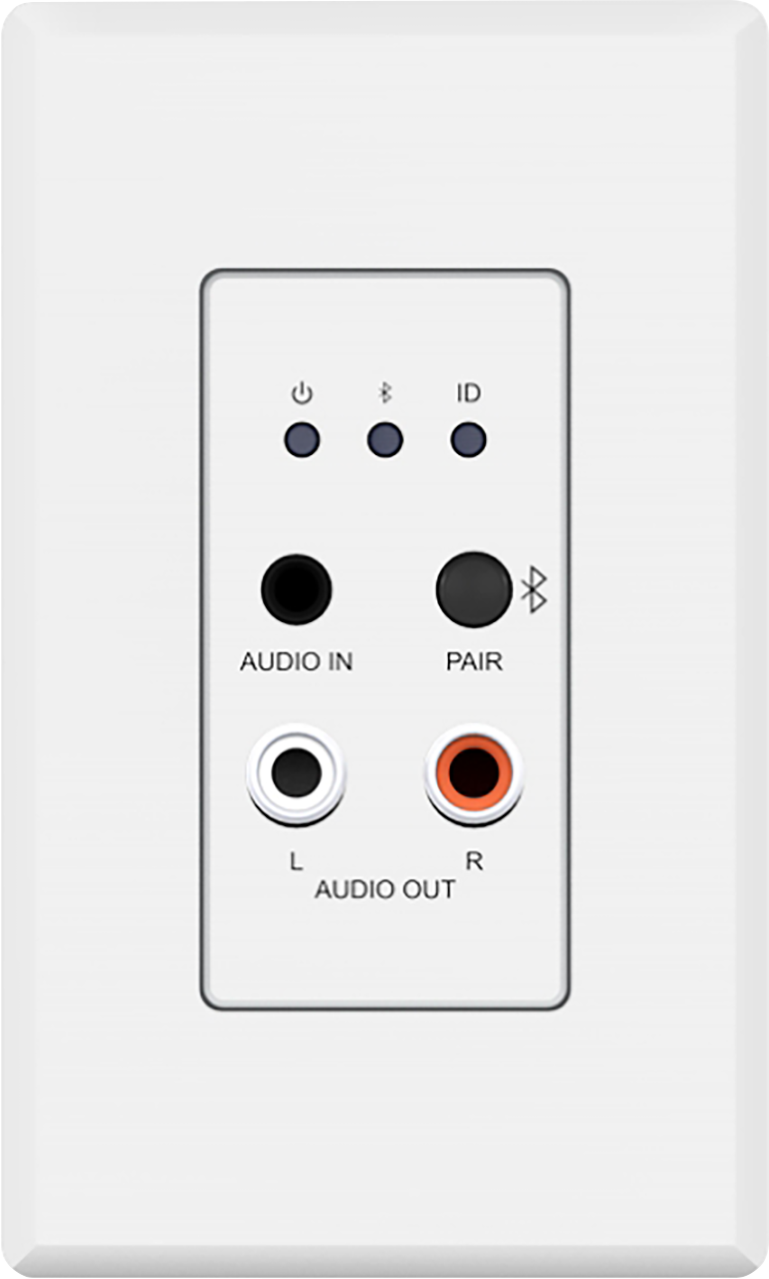

Blustream DA11ABL-WP-US-V2 Bluetooth & Analog Audio Dante® Wall Plate

The DA11ABL-WP-US-V2 is a multi-input / output wall plate to convert Bluetooth and analogue audio within a digital Dante® networked audio system. The DA11ABL-WP-US-V2 converts 2 input channels of Bluetooth or unbalanced audio to Dante® digital audio, and 2 channels of Dante® audio to 2 × output channels of unbalanced audio.

The DA11ABL-WP-US-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows installation into most single-gang US junction boxes. The DA11ABL-WP-US-V2 is the ideal BYOD interface to allow any Bluetooth device to stream audio wirelessly to a Dante® audio system.

• Dante® network wall plate interface for Bluetooth and analogue L/R audio inputs, and L/R audio outputs.
• Converts 2ch Bluetooth, or unbalanced audio sources to Dante® audio.
• Converts 2 × Dante® audio channels to unbalanced audio outputs.
• Adjustable input sensitivity from +24dBµ to −28dBV and output gain from +20dBµ to −28dBV via web GUI or API.
• Dante® Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit.
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller).
• Supports AES67 RTP audio transport.
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch.

• Supports power via 12V DC adapter (not included) for when network switch does not support PoE.

• White magnetic faceplate surround and US Decora style backbox compatibility.
• In-built web-GUI for configuration and control.
