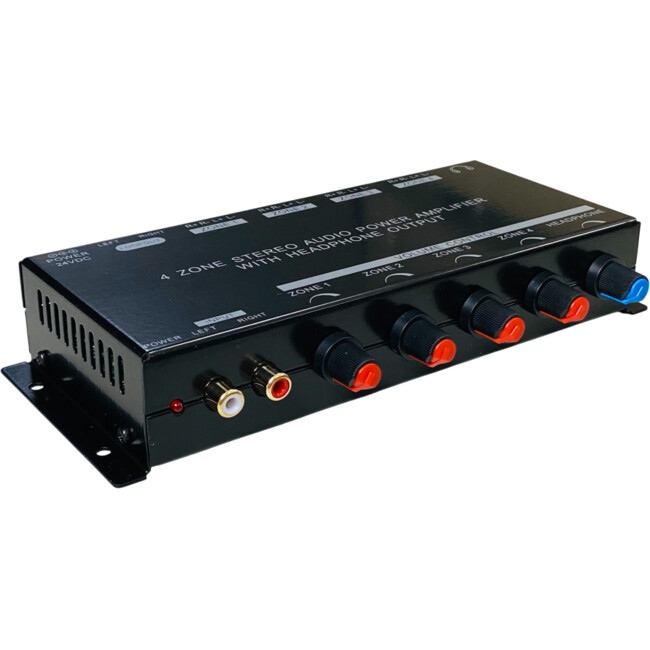

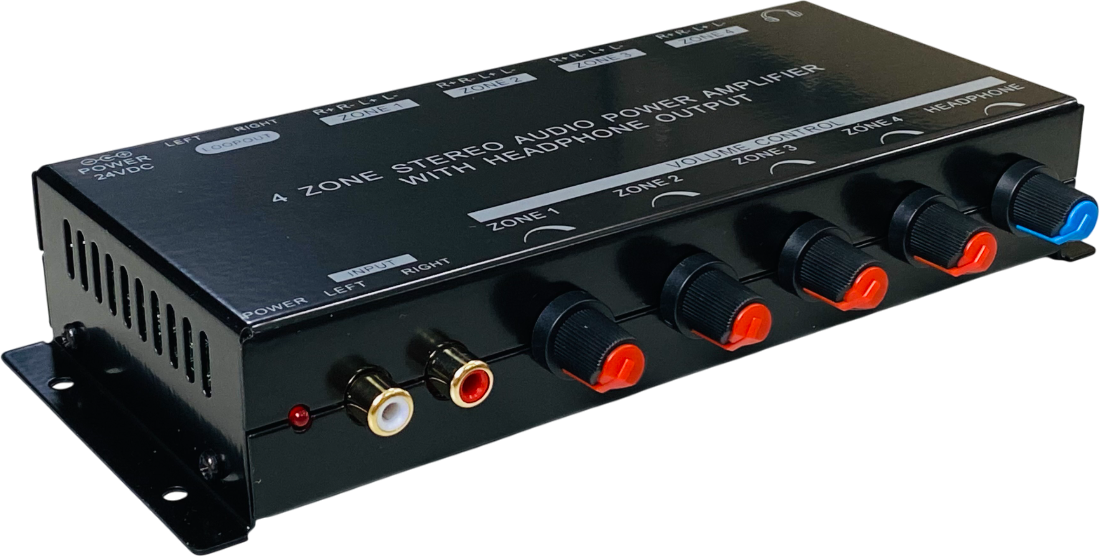

PRO1300H 4 ZONE STEREO POWER AMPLIFIER

PRO1300H — 4 Zone Stereo Audio Power Amplifier with Headphone Monitoring

The PRO1300H is a compact 4-zone stereo power amplifier with a headphone monitoring output, built for distributed audio in structured-wiring cabinets or wall-mounted installations. A single stereo input feeds the four speaker zones, with independent volume control on each, while a separate loop-out connector passes the source signal on to another amplifier or device. Each speaker zone delivers 30 W RMS per channel, and a dedicated headphone output is provided for private level checking and monitoring. Large detachable terminal blocks accept 24–12 AWG wire for quick, tool-friendly hookup in tight enclosures.

Key Features

• One input, four speaker zones plus monitoring - a single stereo input feeds all four speaker zones and the headphone monitor.
• Separate loop-out connector - passes the source signal through to chain additional amplifiers or devices.
• 30 W RMS per channel - stereo Class-D amplification delivering 30 W RMS per channel into 4 Ω, with speaker protection circuitry built in.
• Independent zone volume control - dedicated level knob for each of the four speaker zones.
• Headphone monitoring output - 105 mW RMS per channel into 16 Ω for private level checking and monitoring.
• Compact, install-friendly chassis - small footprint with detachable terminal blocks, suited to structured-wiring cabinets and wall mounting.

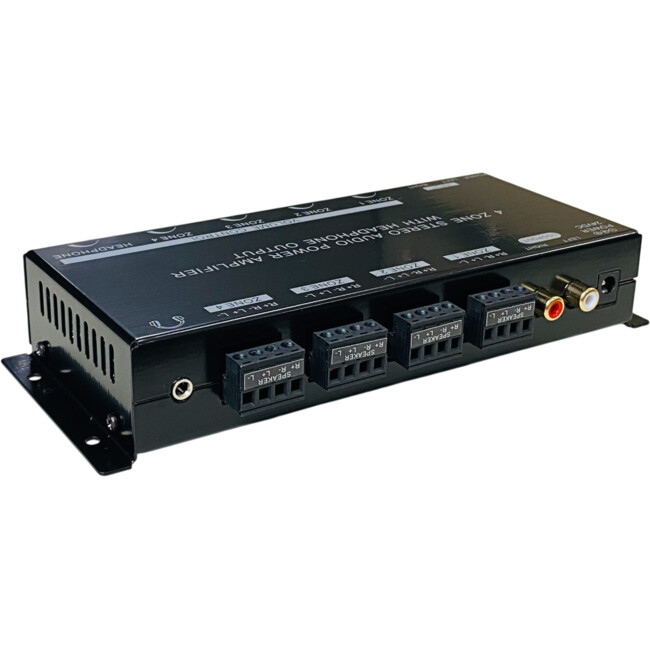

• Screw terminals for 24–12 AWG wire - handles a wide range of wire gauges without adapters.

Specifications

Speaker Audio Power Amplifier (×4)

Earphone Audio Power Amplifier (Monitoring)

Power & Dimensions
