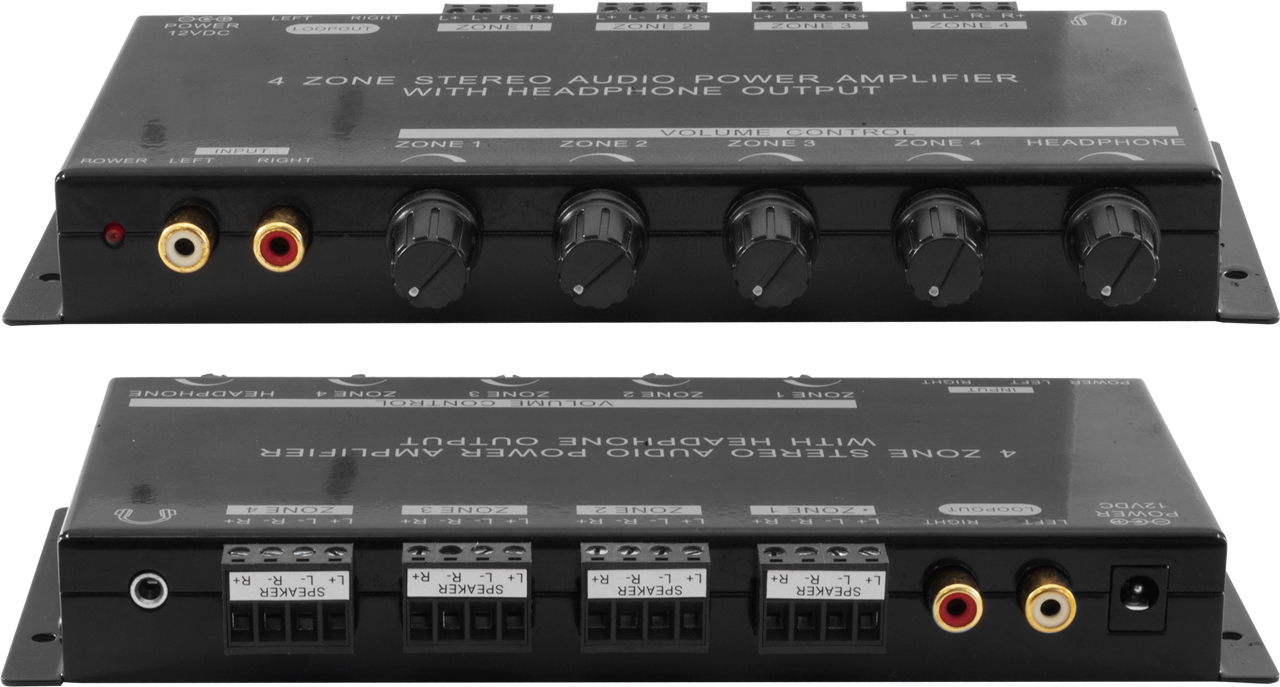

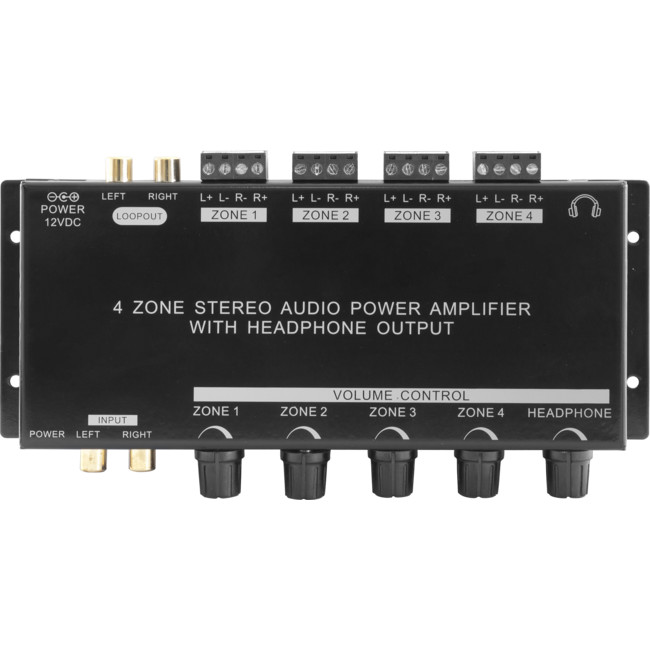

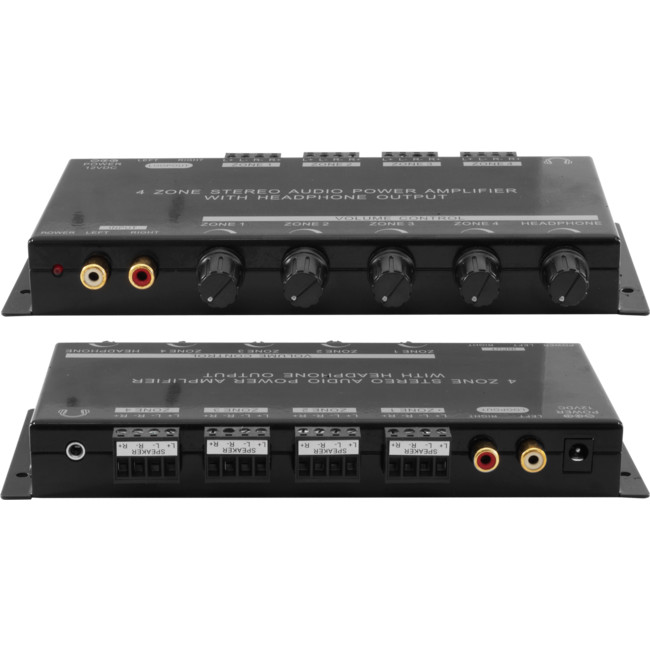

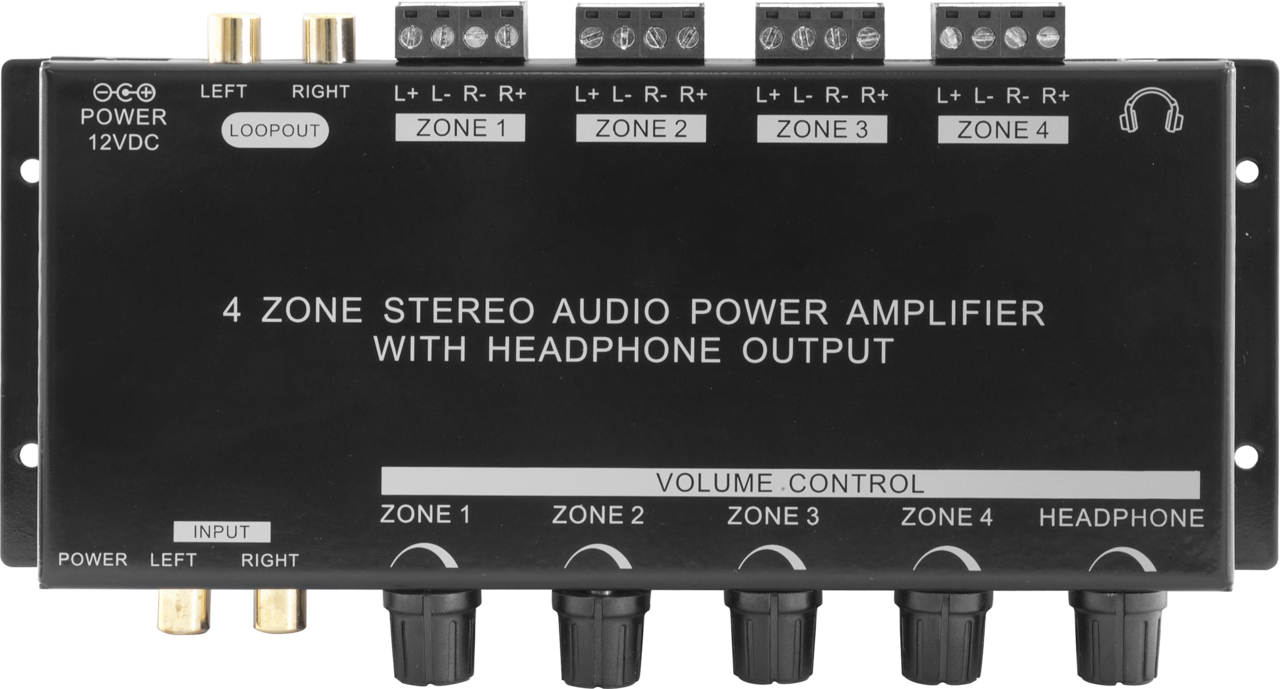

PRO1300 4 ZONE STEREO POWER AMPLIFIER

AUDIO WITH HEADPHONE OUT

Code: 01458295

1.38 kg
9328202011978
EACH
9
18 IN
STOCK
DON'T PAY $275
$224 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

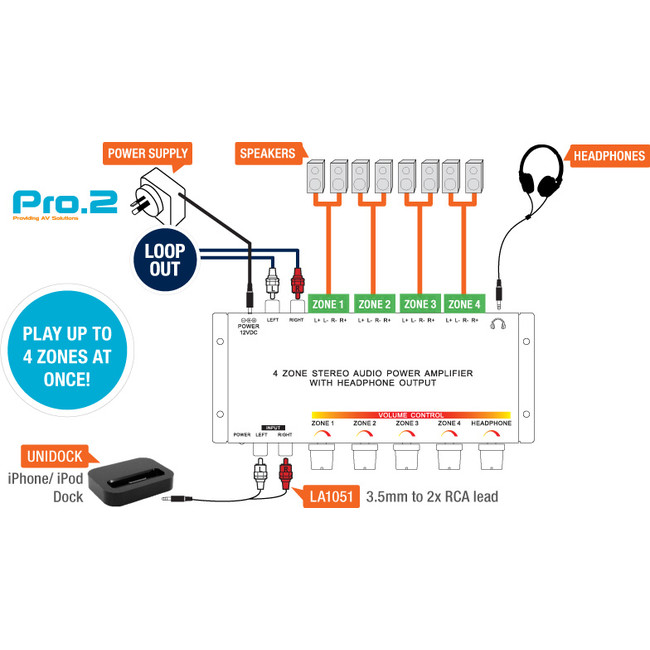

4 Zone Stereo Audio Power Amplifier With Headphone Output

SPECIFICATIONS

Speaker Audio Power Amplifier (x4)

  • Amplifier Type:Stereo D-Class
  • Output power:15W(RMS) per channel
  • THD N :0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance :4Ω
  • Includes Speaker Protection circuit.
Earphone Audio Power Amplifier
  • Output power:105mW(RMS) per channel
  • THD N :0.05 % (@ RL=16 ohm, f = 1 kHz)
  • Minimum Load Resistance :16Ω
Power & Dimensions
  • Power Consumed: 9A Max

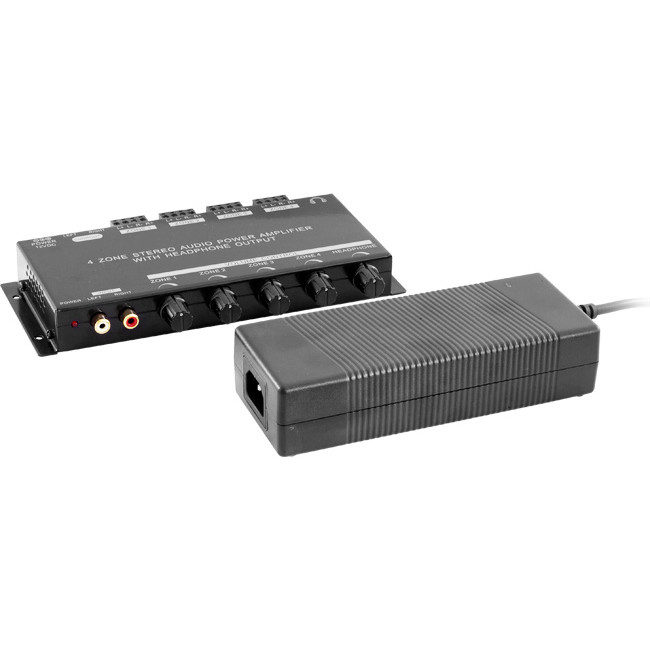

  • Power Source: DC 12 Volts (POWER SUPPLY INCLUDED)
  • Size (LxWxH): 205 mm x 108 mm x 26 mm
  • Net Weight (Unit only): 0.48 Kg

Pro2 Class D Mini Amps - Range Overview May 2020

Video not loading? Watch it over at YouTube!
