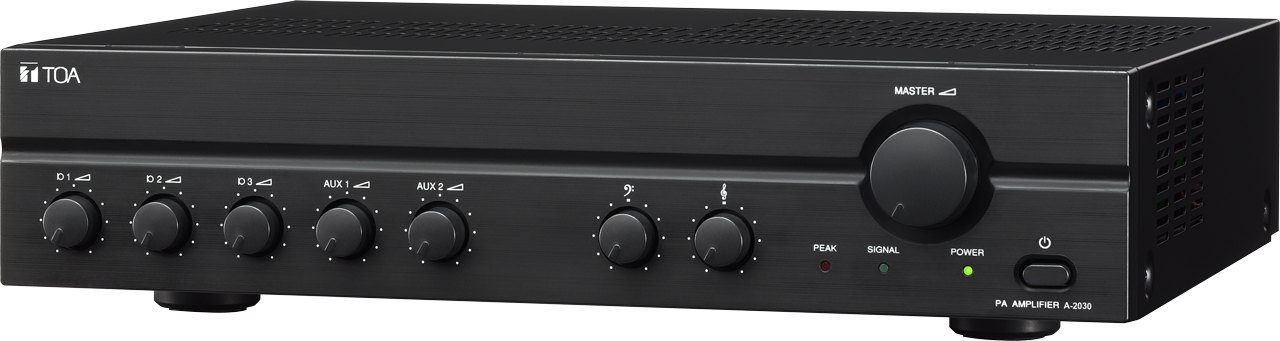

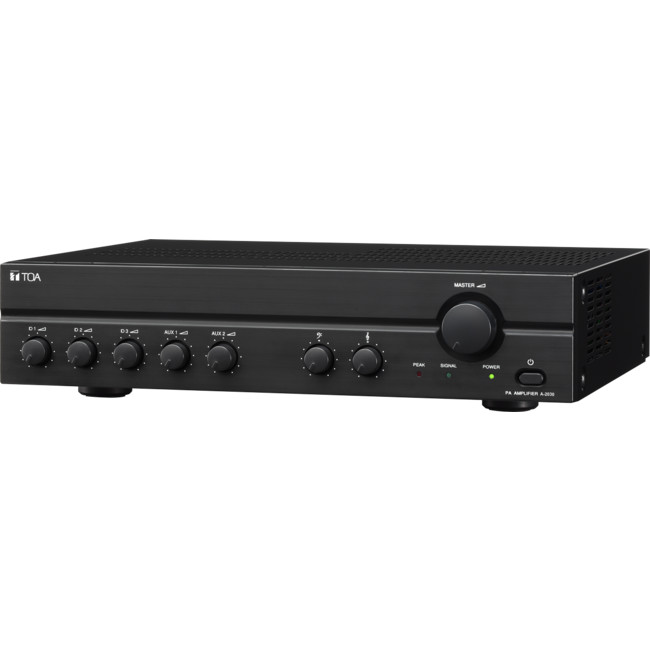

A2030D TOA 30W- 100V ONLY PA AMP

3X MIC, 2X AUX IP - VOX MUTING

Code: 01458118

5.01 kg
EACH
1 IN
STOCK
TRADE ALERT!
$479 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

30W A-2000D Series 100v ( only )mixer amplifier

The A-2000D series is a range of high performance digital mixer power amplifiers suited for broadcasting paging and/or background music in schools, retail shops, offices, factories, houses of

worship and large function rooms.

A-2000D Series Mixer Power Amplifiers are designed to be highly cost effective solutions to the demands of PA applications.

. The A-2000 series makes available a wide range of power outputs (A-2030D: 30W, A-2060D: 60W, A-2120D: 120W, A-2240D: 240W), with a frequency response of 50 – 20,000 Hz and distortion under 1%.

Three balanced/XLR3-31 type MIC inputs and two unbalanced/RCA pin jack AUX inputs, along with high impedance balanced (floating) speaker outputs and unbalanced REC outputs ensure operational versatility.

Phantom power and Vox muting are available on MIC 1, along with tone control for bass and treble.

Power, signal and peak indicators are provided.

All 2000D Series Mixer Amplifiers Feature:

  • 100 volt output
  • 3 balanced XLR microphone inputs with phantom power onmic 1
  • Vox muting on mic 1
  • Bass and treble control with boost and cut
  • 50Hz to 20kHz frequency response
  • 240VAC or 24VDC operation
  • Rack mountable with MB25B brackets
  • 3 year warranty

Specifications

MODEL A2030D
Power Source 220 – 240V AC, 50/60 Hz
Rated Output

30 watt

Power Consumption 12W (AC operation at 1/8 maximum output without clip)
Frequency Response 50 – 20,000Hz (±3dB)
Distortion Under 1% at 1 kHz, 1/3 rated power
Input

MIC 1 – 3: -60dB*, 600Ω, Balanced, 3P XLR

AUX 1, 2: -20dB*, 10 kΩ, Unbalanced, RCA pin jack

Output

Speaker out: Balanced (Floating) High Impedance: 330 Ω (100V)

Rec out: 0 dB*, 600Ω, Unbalanced, RCA pin jack

Tones Nil
Phantom Power DC 21V (MIC 1)
Signal to noise ratio Over 60dB
Tone Control Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz
Muting MIC 1: Mutes other input signals by 0 – 30dB attenuation
Indicator Power LED, peak LED, signal LED
Dimensions 420 (W) × 100.6 (H) × 280.3 (D) mm
Weight 4.6 kg
*0dB = 1V
