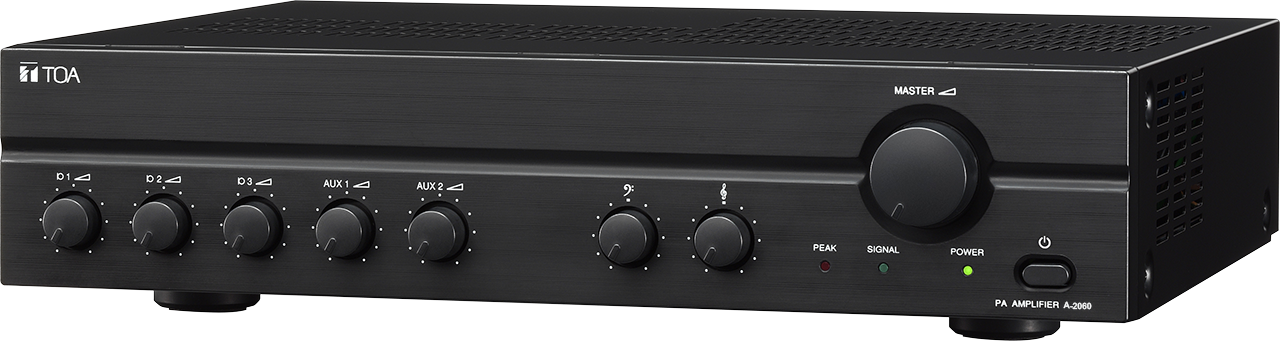

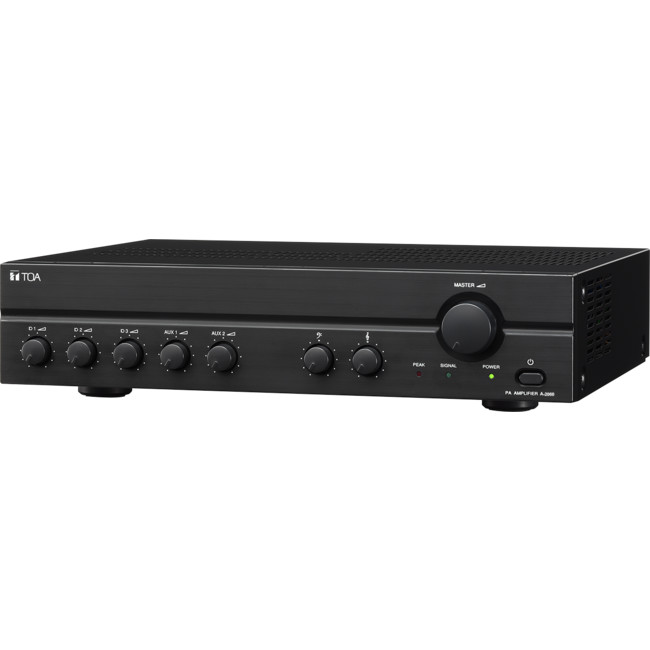

60W 2000 SERIES MIXER / POWER AMPLIFIER - TOA
TOA’s 2000 Series Mixer Power Amplifiers are designed to be highly cost effective solutions to the demands of PA applications. They offer high levels of performance and versatility and are well-suited for paging and background music in schools, offices, shops, factories, mosques, churches, and large meeting rooms.
A-2000 Series Mixer Power Amplifiers are designed to behighly costeffective solutions to the demands of PA applications. They offer high levels of performance and versatility and are especiallywell-suited for broadcasting paging and supplying background music in schools, offices, shops, factories, mosques, churches, and large meeting rooms. The A-2000 series makes available a wide range of power outputs (A-2030: 30W, A-2060: 60W, A-2120: 120W, A-2240: 240W), with a frequency response of 50 – 20,000 Hz and distortion under 1%. Three balanced/XLR3-31 type MIC inputs and two unbalanced/RCA pin jack AUX inputs, along with high and low impedance balanced (floating) speaker outputs and unbalanced REC outputs ensure operational versatility.
Phantom power and muting are available on MIC 1, along with tone control for bass and treble. Power, signal and peak indicators are provided. In addition, the P-2240 Booster Amplifier offers a means of increasing power amplification for system expansion through adding more speakers.
All 2000 Series Mixer Amplifiers Feature:
- 100 volt, 70 volt or low impedance outputs
- 3 balanced XLR microphone inputs with phantom power on mic 1
- Closed contact muting on mic 1
- Bass and treble control with boost and cut
- 50Hz to 20kHz frequency response
- 240VAC or 24VDC operation
- Rack mountable with MB25B brackets
- 3 year warranty
P2240 Power Amplifier Features:
- 240 watt 100 volt, 70 volt or low impedance outputs
- Volume, bass and treble control on front panel
- Line level in and out for cascade operation
- 100 volt line input 50Hz or 20kHz frequency response
- Rack mountable with MB25B brackets
- 3 year warranty
FEATURES:
High cost-performance
- Suitable for commercial audio systems in schools, offices, shops, factories, houses of worship, and large meeting rooms
- Equipped with balanced mic. inputs for better isolation from external noise, compared to unbalanced inputs
- Improved durability compared with conventional TOA models
Flexibility
- A wide range of power outputs from 30W to 240W
- Offers a comfortable acoustic space thanks to tone control at bass and treble
- Both AC and DC operation possible
- Phantom power provided to MIC1, for supplying power to a condenser microphone
Easy to handle
- Scratch- and fingerprint-resistant finish
- Easy and quick volume control with master volume knob
Product brochure
SPECIFICATIONS:
| Model No. | A-2030 | A-2060 | A-2120 | A-2240 | P-2240 |
| Power Source | 220 – 240V AC or 24V DC |
| Rated Output | 30W | 60W | 120W | 240W | 240W |
| Power Consumption | 34W (EN60065), 78W (AC operation atrated output), 2A (DC operation at rated output) | 72W (EN60065), 150W (AC operation at rated output), 4A (DC operation at rated output) | 124W (EN60065), 260W (AC operation at rated output), 8A (DC operation at rated output) | 238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output) | 238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output) |
| Frequency Response | 50 – 20,000Hz (±3dB) |
| Distortion | Under 1% at 1kHz, 1/3 rated power |
| Input MIC | MIC 1 – 3: -60dB*, 600Ω, electronically balanced, XLR3-31 type AUX 1, 2: -20dB*, 10kΩ, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1) | Line in: 0dB*, 10kΩ, balanced, screw terminal 100V line in: 40dB*, 330kΩ, unbalanced, screw terminal Power remote control: Make contact |
| Output - Loop out | — | — | — | — | 0dB*, 10kΩ, balanced, screw terminal |
| Output - Speaker out | Balanced (floating) | Balanced (floating) | Balanced (floating) | Balanced (floating) | Balanced (floating) |
| Output - High impedance | 330Ω (100V), 170Ω (70V) | 170Ω (100V), 83Ω (70V) | 83Ω (100V), 42Ω (70V) | 42Ω (100V), 21Ω (70V) | 42Ω (100V), 21Ω (70V) |
| Output - Low impedance | 4Ω (11V) | 4Ω (15.5V) | 4Ω (22V) | 4Ω (31V) | 4Ω (31V) |
| Output - Rec. out | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | — |
| Phantom Power | DC 21V (MIC 1) | — |
| S/N Ratio | Over 60dB |
| Ventilation | — | Fan cooling |
| Tone Control | Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz |
| Muting | MIC 1: Mutes other input signals by 0 – 30dB attenuation | — |
| Indicator | Power. signal, peak |
| Finish | Panel: ABS resin, black/Case: Steel plate, black |
| Dimensions | 420 (W) × 100.9 (H) × 280.3 (D)mm | 420 (W) × 100.9 (H) × 360.3 (D)mm | 420 (W) × 100.9 (H) × 351.3 (D)mm |
| Weight | 5kg | 7kg | 10.8kg | 13.2kg | 13.2kg |
