A3606D 60W NETWORK CLASS D MIXER AMP

2 ZONE 7 INPUTS 100V-18/16 OHM

Code: 01458050

EACH
SPECIAL
BUY-IN
$1287 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

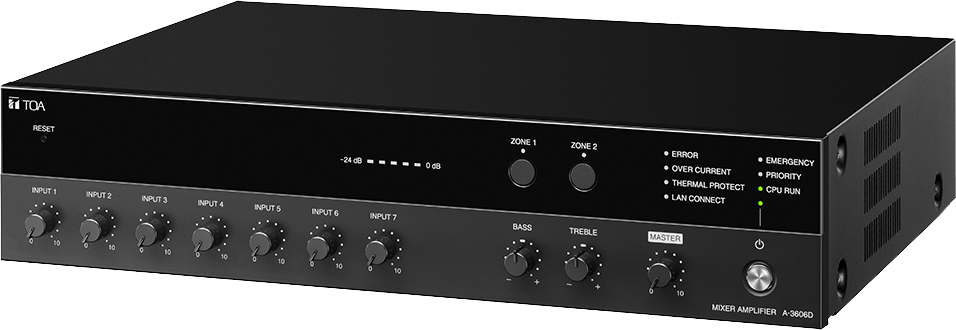

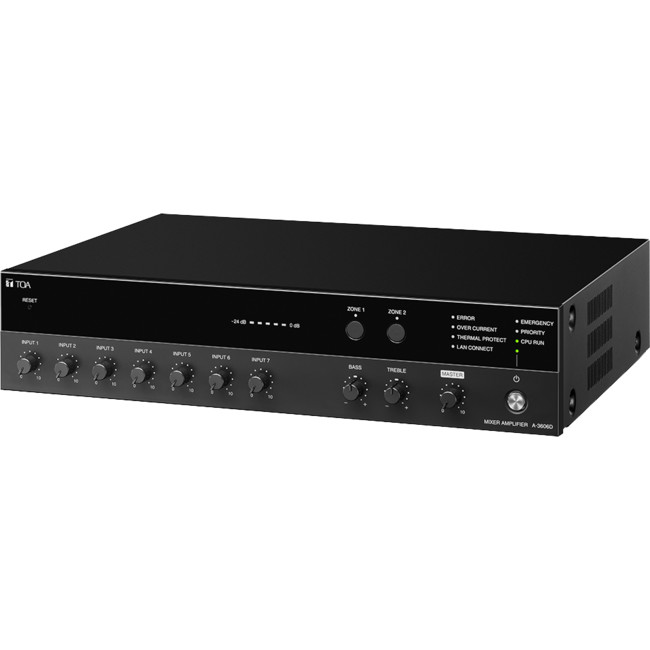

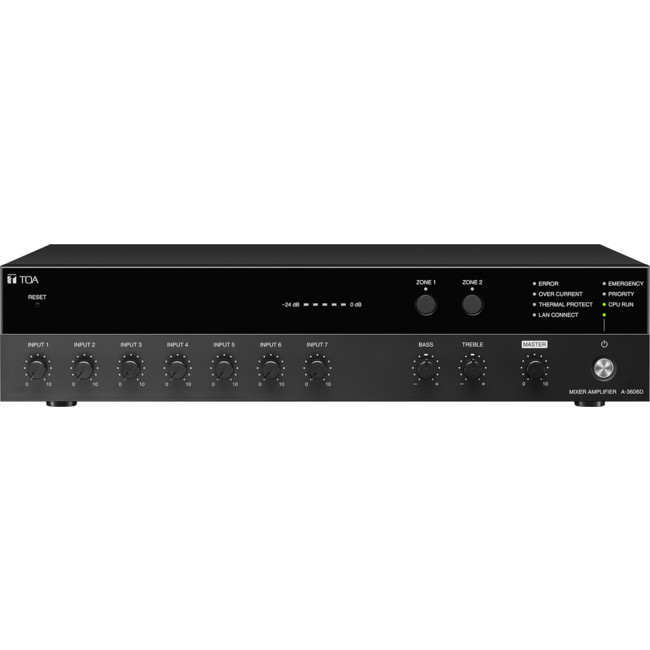

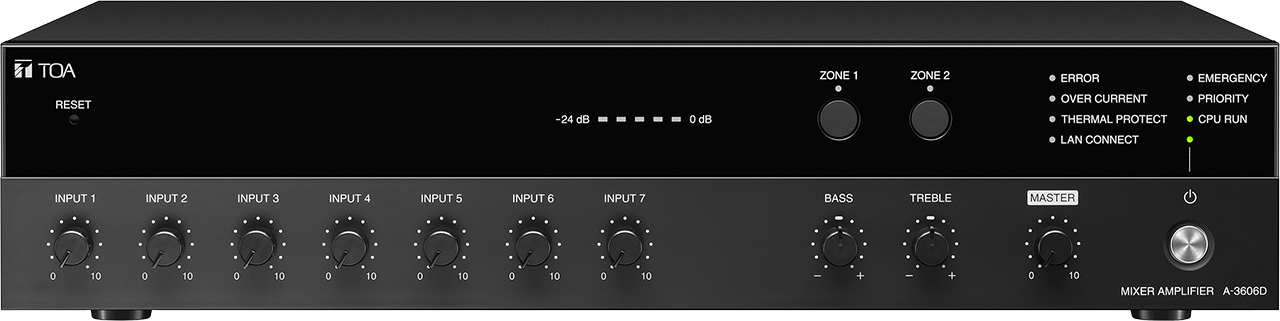

TOA A3606D 60W MIXER AMPLIFIER

A-3600D Series Digital Mixer Amplifiers provide maximum flexibility with up to seven inputs, 4 microphone and 3 auxiliary inputs, and a 2-channel zone selector.

With a choice of 4 models from 60w up to 480W of power noapplication is to small or to big

The A-3600D Series mixer amplifier is ideal for paging announcement and BGM applications in schools, offices, and super markets.

Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems.

Feedback suppressor, input priorities, a sleek new appearance, and TOA's legendary quality and reliability makethis a perfect fit for background and foreground music, paging, and noise masking applications..



Key Features

  • TOA class D amplifiers for maximum efficiency.
  • Feedback Suppressor (Dynamic feedback filters).
  • Speaker EQ (3 points equalizer).
  • Assignable input priorities.
  • Built-in pre-announce chime.
  • IP protocol available



MODEL POWER OUTPUT
A3606D 60W output power, high or low Z
A3612D 120W output power, high or low Z
A3624D 240W output power, high or low Z
A3648D 480W output power, high or low Z



Web Browser Interface

Connect the A3600D digital mixer amplifier to a network to access the on-board browser interface.

Static or dynamic host configuration protocol address assignment may be used.

Browser Interface allows access to:

  • Account ID (username and password) settings
  • System status, including real time display of input and output levels
  • Input priority settings
  • Speaker EQ settings ( 3 points equalizer )
  • Firmware updates



Remote Control

You can adjust the speaker volume either by the physical controls on the front panel of the amplifier, by the optional remote controller or on the Web browser.

IP control protocol is also available for further integrations and developments





Specification - A3606D

?(*1) 0 dB = 1 V
Power Source 100 - 240 V AC
Rated Output 60 W
Power/Current Consumption 96 W (rated output)
Frequency Response 50 Hz - 20 kHz ±3 dB (1/8 rated output)
Distortion 1 % or less at 1 kHz
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Signal to Noise Ratio 88 dB or more (Master volume: min)
76 dB or more (Master volume: max)
55 dB or more (INPUT 1 - 6)
72 dB or more (INPUT 7)
(A-weighted)

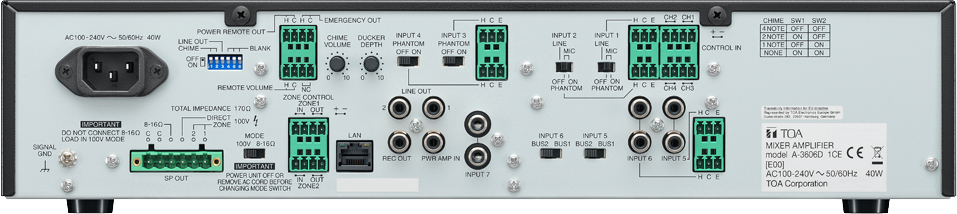

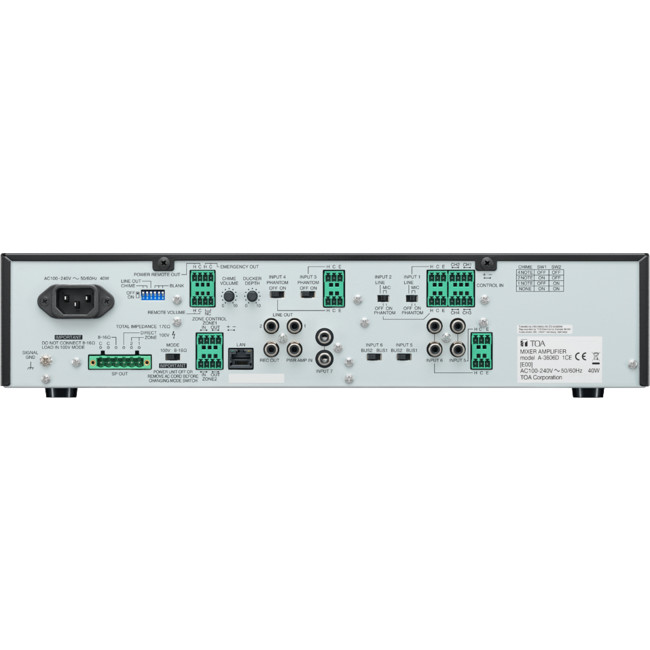

Audio Input INPUT 1
Note: MIC inputs are equipped with phantom power (24V DC
INPUT 3
Note: Equipped with phantom power (24 V DC
INPUT 5
MIC: -60 dB (*1)
LINE: -20 dB (*1)
INPUT 7: -20 dB (*1)
PWR AMP IN: 0 dB (*1)
Input Bus INPUT 1 - 4 : BUS 1
INPUT 5
INPUT 7 : BUS 2
Audio Output SPEAKER OUT: Low impedance (8 - 16 Ω)/
High impedance (DIRECT
(ZONE 1/ZONE 2 is selectable
REC OUT: 0 dB (*1)
LINE OUT 1
Control Input 4 channels
REMOTE VOLUME: Removable terminal block (4 pins)
ZONE CONTROL IN: No-voltage make contact input
Control Output POWER REMOTE OUT: Open collector output
EMERGENCY OUT: Open collector output
ZONE CONTROL OUT: Open collector output
Chime 1-note
Indicators 5-point LED output level meter
Operating Temperature -10 °C to +40 °C (14 ?F to 104 ?F)
Operating Humidity 85 %RH or less (no condensation)
Finish Panel: ABS resin
Case: Surface-treated steel plate
Dimensions 420 (W) × 96.1 (H) × 313.1 (D) mm (16.54 x 3.78" x 12.33)
Weight 5 kg (11.02 lb)
Accessory Power cord (2 m (6.56 ft)) ?1
Option Rack mounting bracket: MB-25B
Perforated panel : PF-013B
