A3548D TOA 480W 5 INPUT MIXER AMP

2 ZONE -100V - 4-16 OHM

Code: 01458033

EACH
OUT OF
STOCK!
$1509 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

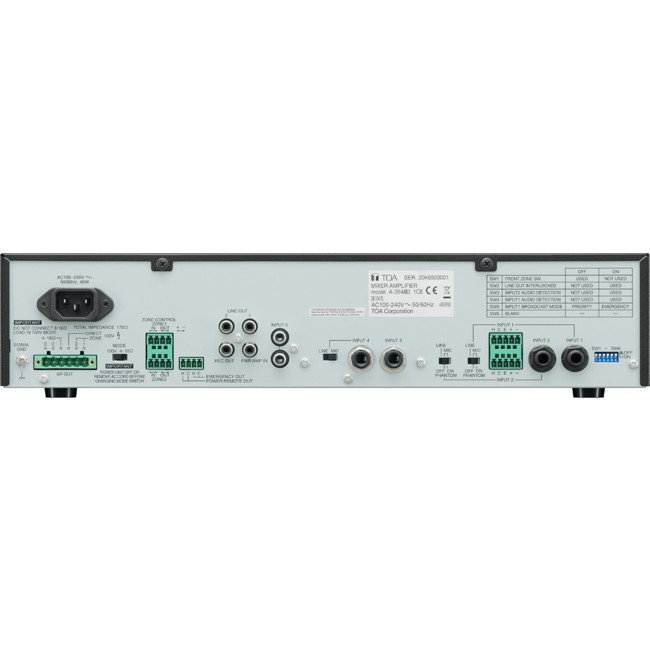

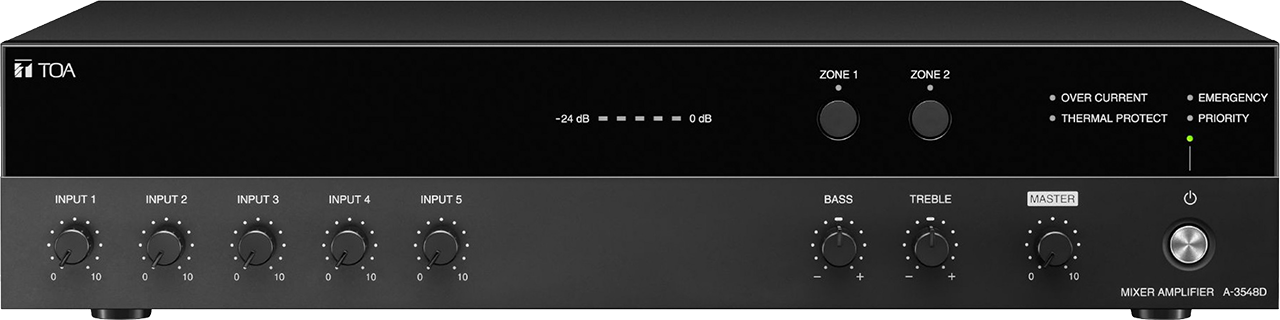

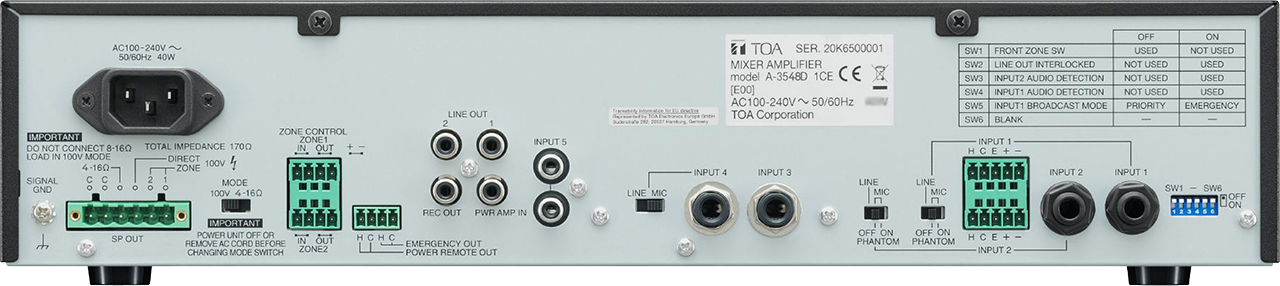

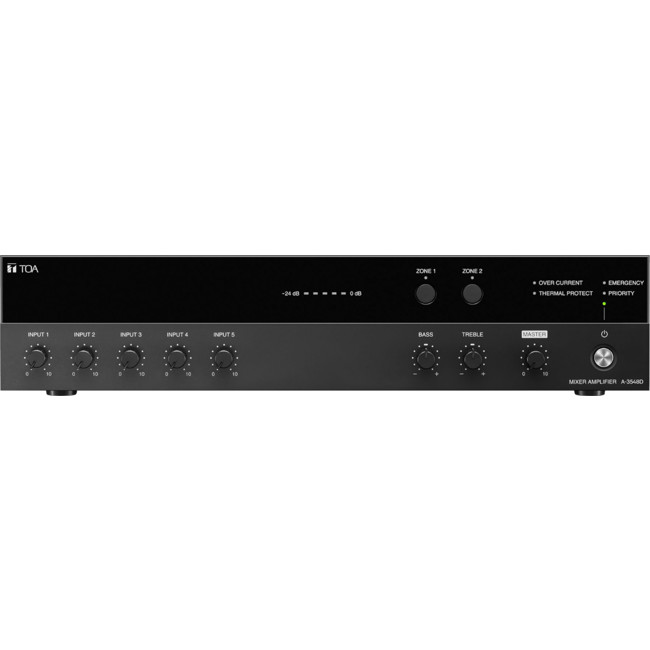

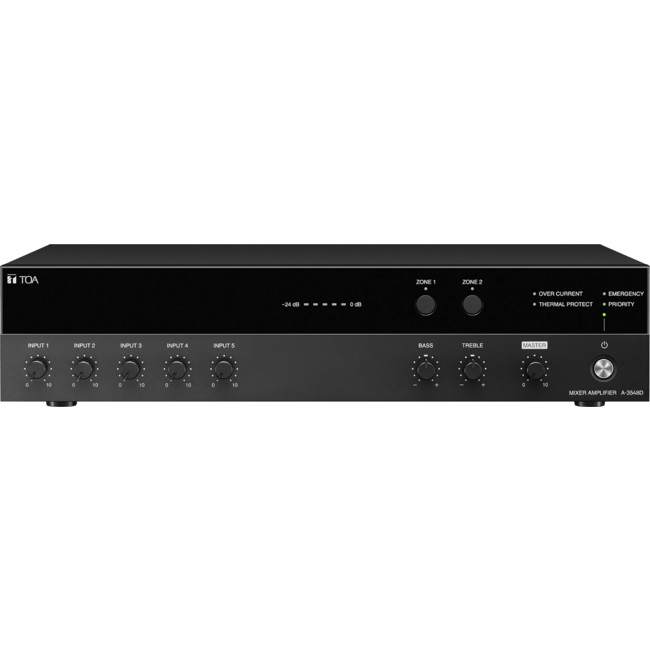

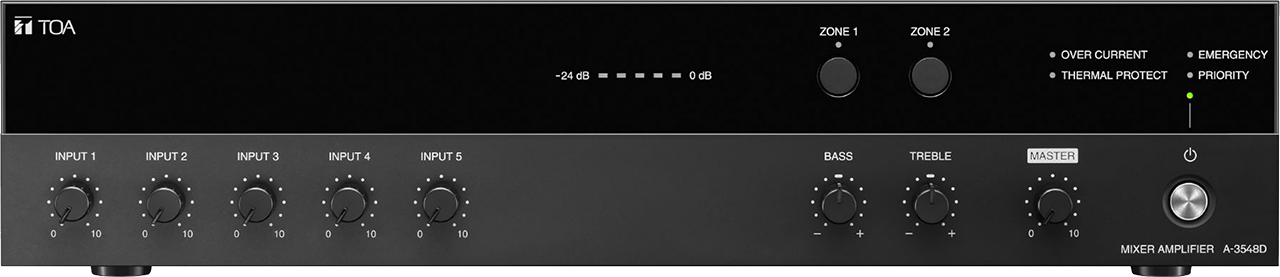

Toa A-3548D 2 Zone 480W Mixer Amplifier

The A-3500D series PA amplifiers are available in 60w / 120w / 240w / and 480w models all come with emergency and priority paging and remote zone control.

They are equipped with 4 microphone inputs and 1 auxiliary input and 2-channel zone selector, and are 100v and 4-16 ohm output

The A-3548D is a class D mixer / amplifier with 480 watts output.

It comes with emergency and priority paging, is equippedwith 3 MIC/LINE inputs, 1 MIC input, 1 AUX input can be alsoused for music source.

With 2-channel speaker zone selectors it is ideal for paging announcements and background music applications in retail shops, schools, offices and production facilities.- 480 W Class D mixer amplifier for high and low impedance speakers



Key Features

  • 5 Inputs: 1 Mic, 1 AUX, 3 MIC/AUX (selectable) , 2x Phantom power
  • 2 Zone speaker selector (high impedance only)
  • 2 Line out, 1 Rec out
  • 2 Zone control inputs / outputs
  • 1 Emergency output



Toa A3548D Specifications


A-3548D
Power source

100 - 240 V AC, 50 / 60 Hz

Rated output

480 W

Frequency response

50 Hz - 20 kHz (±3 dB (1/8 rated output)

Distortion

≤ 1 % (at 1 kHz, rated power)

Power consumption

601 W (at rated output), 113 W (EN62368-1)

Speaker output

direct, zones 1 & 2

Amplifier

Class D

S/N ratio

88 dB (A-weighted)

Connectable microphones

3

Inputs

INPUT 1, 2: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 5 pins)/Ø6.3 mm phone jack (2P)

INPUT 3: –60 dB*, 600 Ω, electronically-balanced, Ø6.3 mm phone jack

INPUT 4: –60 dB* (MIC)/–20 dB* (LINE)selectable, 600 Ω, electronically-balanced, Ø6.3 mm phone jack (2P)

INPUT 5: –20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2

PWR AMP:IN: 0 dB*, 600 Ω, unbalanced, RCA pin jack

Control input

2 channels, no-voltage make contact input, openvoltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 5 pins);

ZONE control: No-voltage make contact input, openvoltage: 35 V DC or less, short-circuit

current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)

Outputs

REC, LINE 1/1: 0 dBV, 600 ohms, unbalanced, RCApin jack

SPEAKER direct, zones 1 and 2: 4-16 ohms in totalor 100 V

Control output

Power remote, emergency, zone control: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)

Operating humidity

85%RH or less (no condensation)

Operating temperature

–10 to +40 °C

Finish

ABS resin, Steel plate, paint, black

Dimensions

420 x 96 x 313 mm (W x H x D)

Weight

5.1 kg
