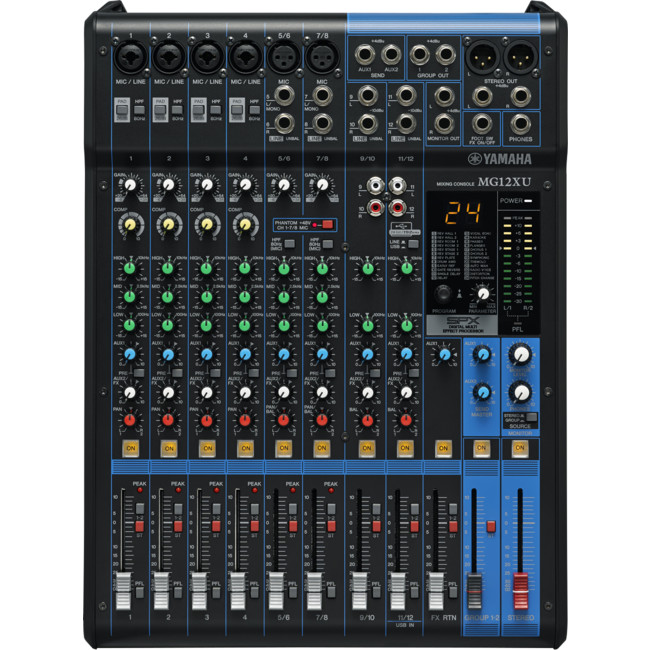

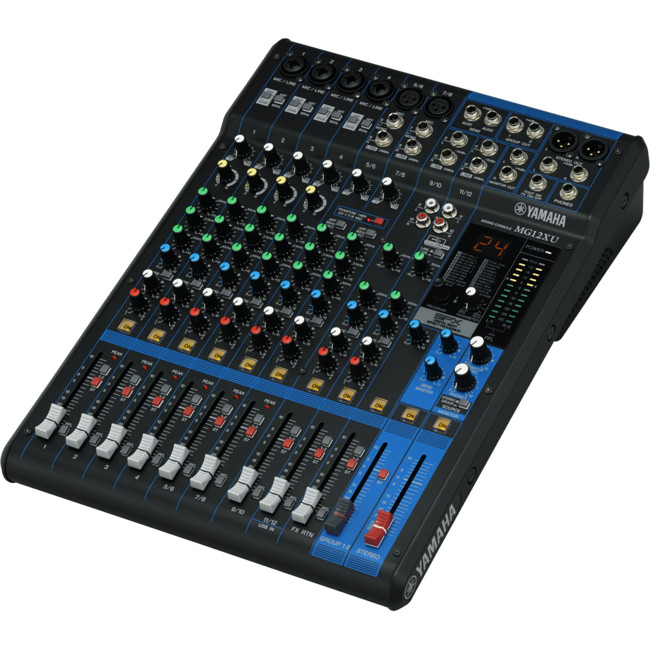

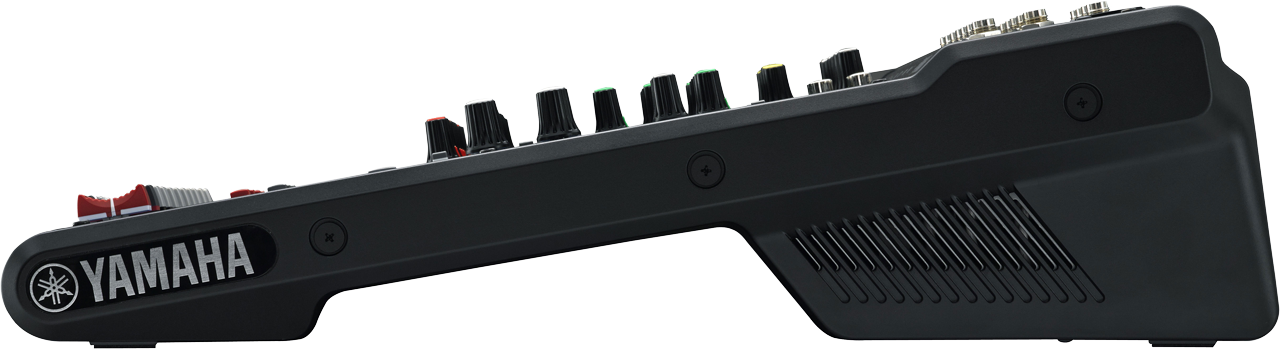

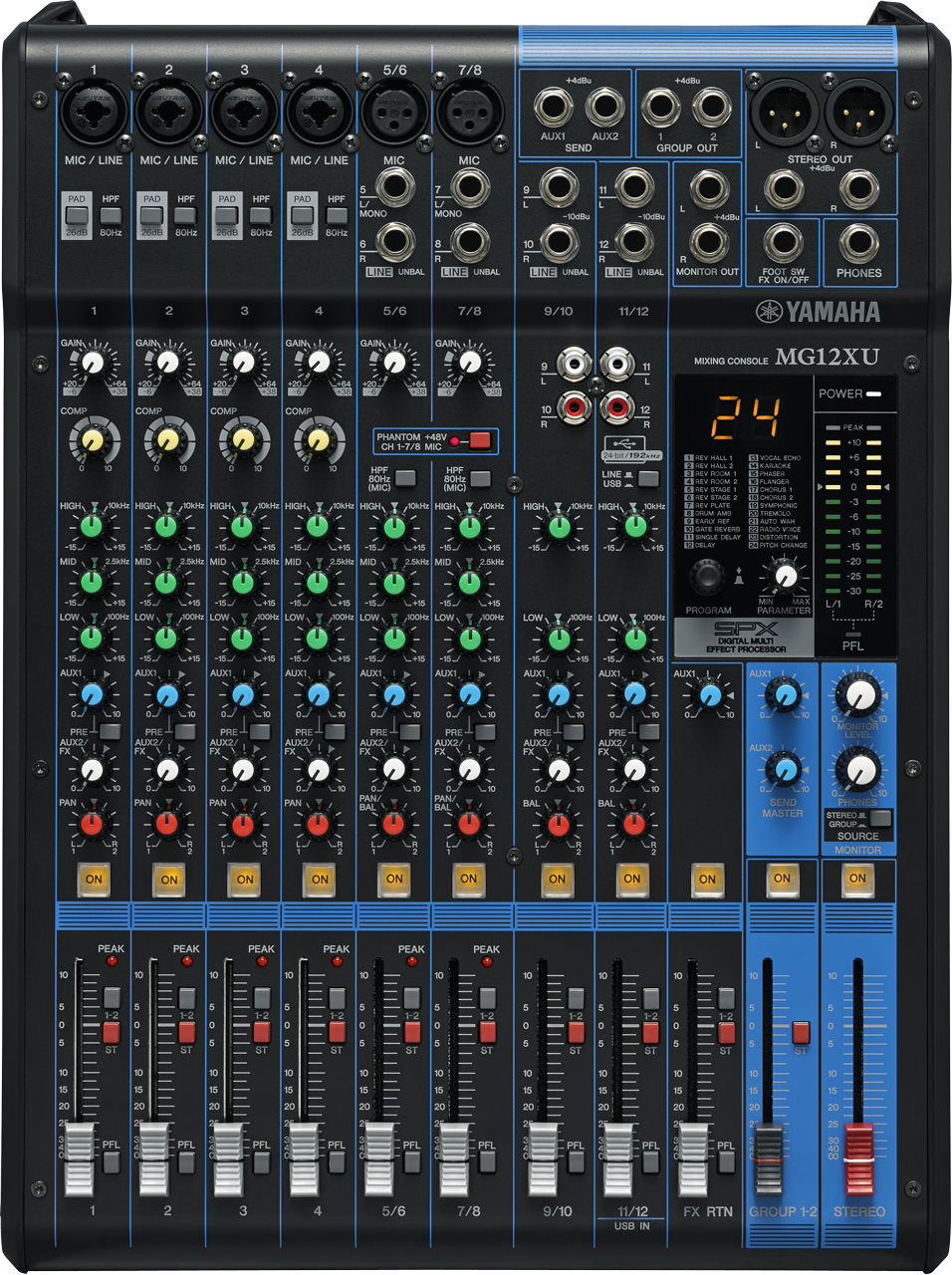

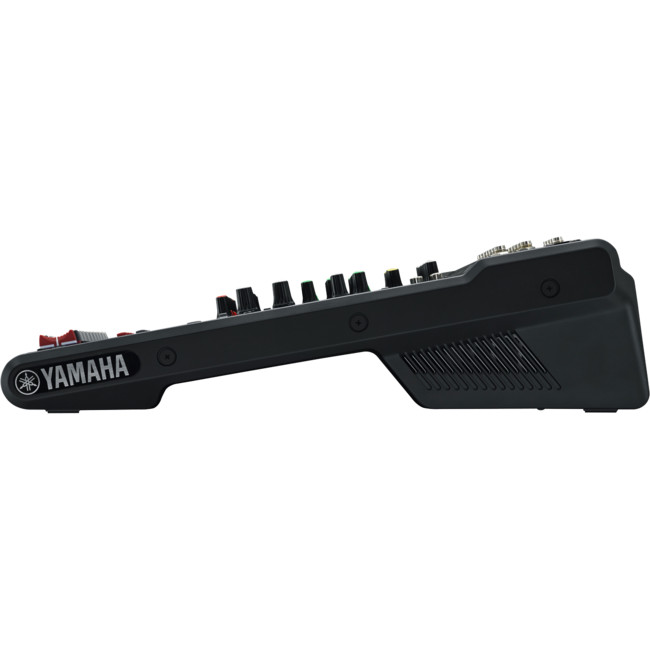

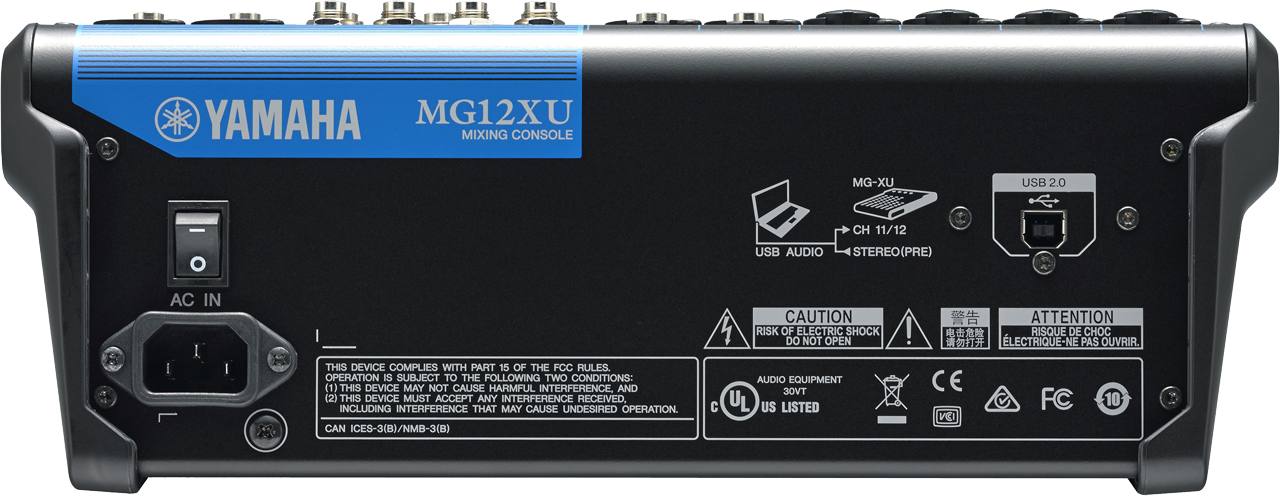

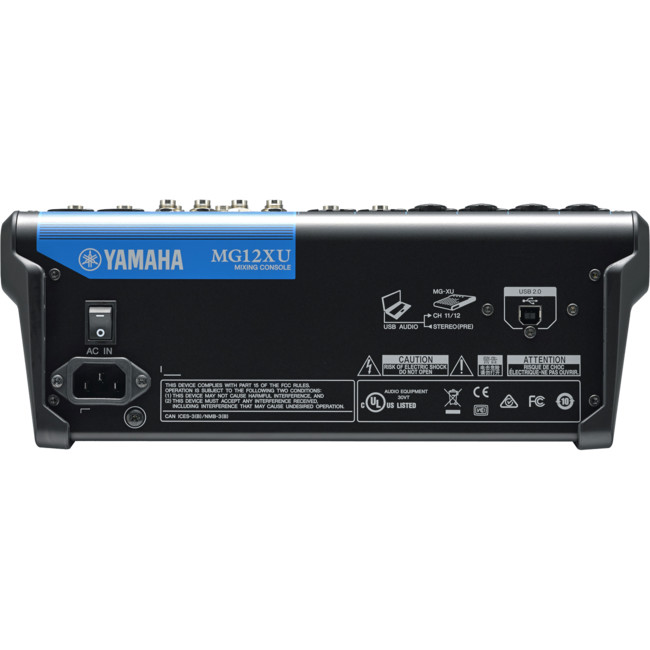

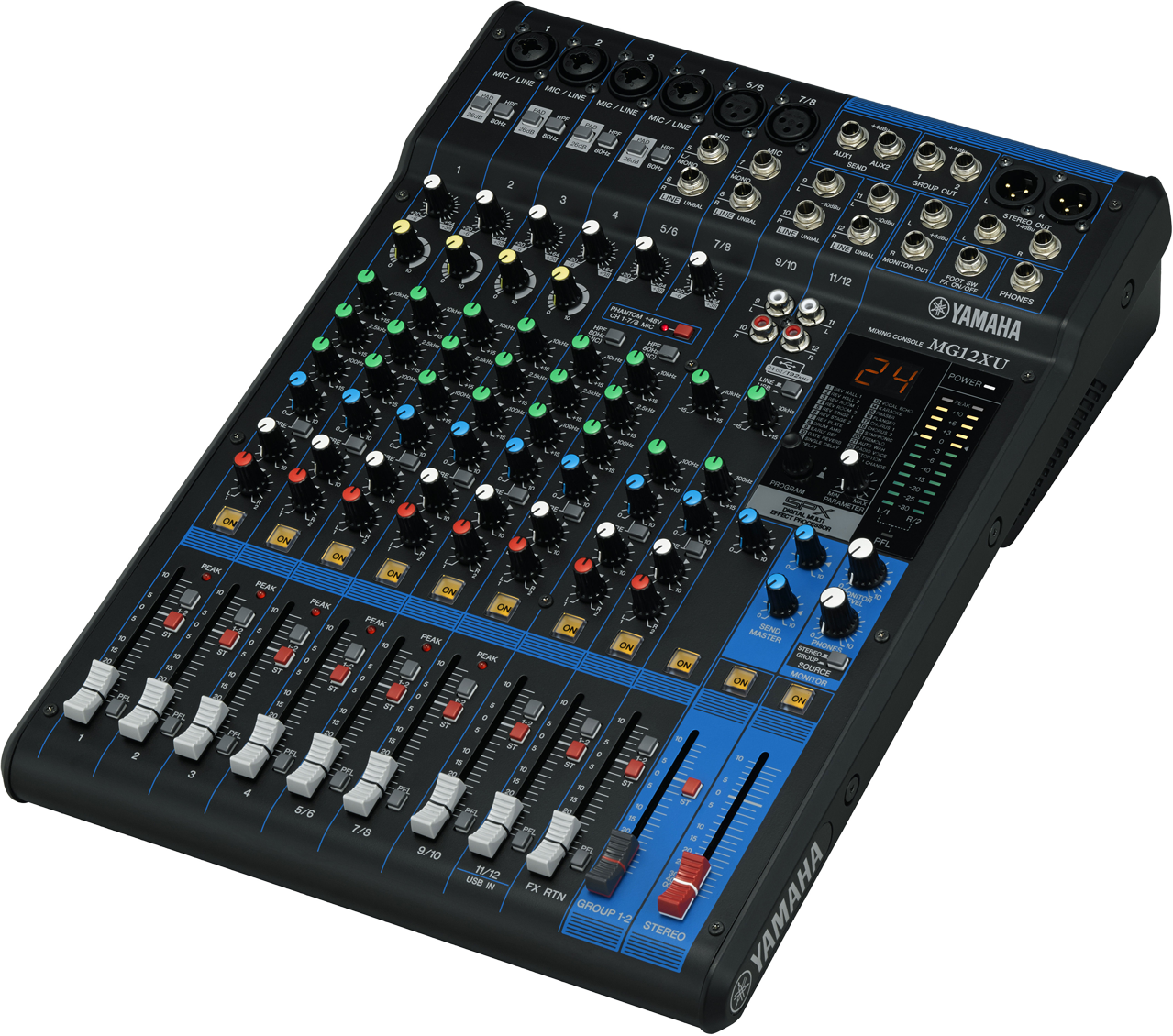

MG12XU 12CH MIXER 4 MONO + 4 STEREO

MAX 6 MIC- 12 LINE I/P -YAMAHA

Code: 01455018

4957812553865
EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
$649 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono 4 stereo) / 2 GROUP Buses 1 Stereo Bus / 2 AUX (incl. FX

  • 12-Channel Mixing Console
  • Max. 6 Mic / 12 Line Inputs (4 mono 4 stereo)
  • 2 GROUP Buses 1 Stereo Bus
  • 2 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase Al DAW software download version
  • PAD switch on mono inputs
  • 48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Optional Rack Mount Kit RK-MG12 Available
  • Metal chassis
  • Dimensions(WxHxD): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
  • Net Weight: 4.2 kg (9.3 lbs.)



Specifications

Outline

Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O Phantom power 48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2
Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: 22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: 15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: 15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: 15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, 10, 6, 3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications

Total harmonic distortion 0.03 % @ 14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ 24dBu (1kHz), GAIN knob: Min
Frequency response 0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to thenominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 ? 240 V, 50 / 60 Hz
Power consumption 22 W
Dimensions W 308 mm (12.1")
H 118 mm (4.6")
D 422 mm (16.6")
Net weight 4.2 kg (9.3 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
Others Operating Temperature: 0 to 40°C
