COM24MK2 AUDAC 100V 240W MIXER AMP

5 SPEAKER ZONES - 2RU

Code: 01453437

EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
$1660 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

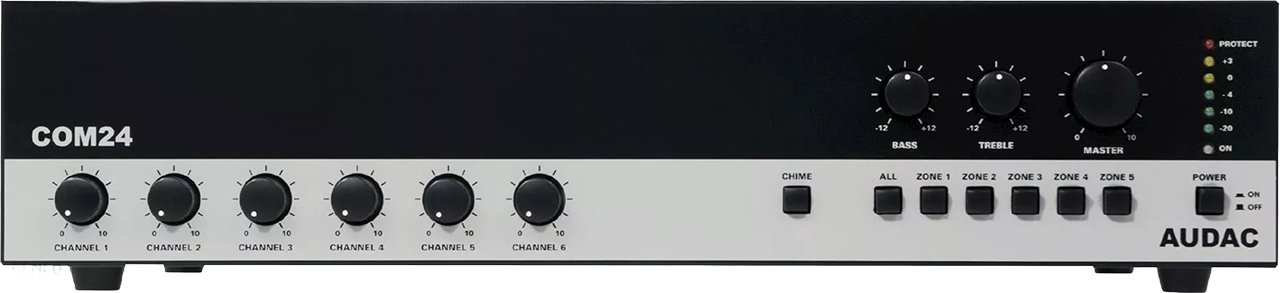

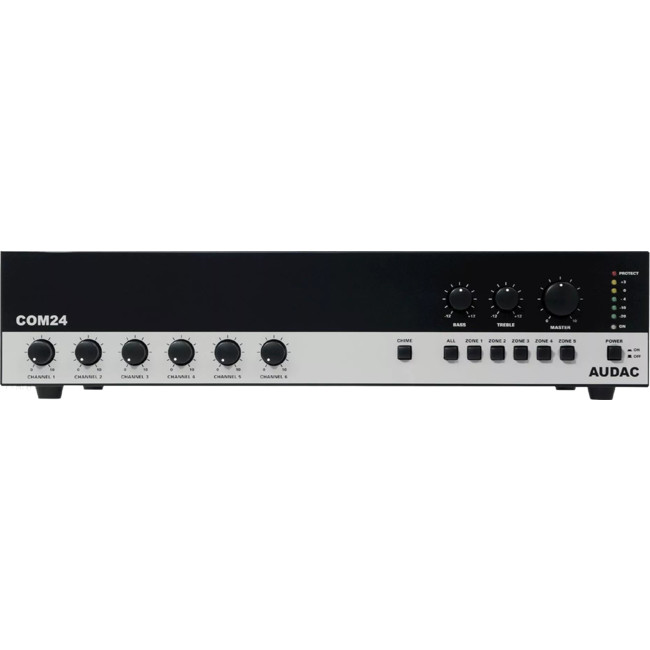

AUDAC COM24 PUBLIC ADDRESS AMPLIFIER 240W 100V

The COM series public address mixing amplifiers are providing an ideal solution for small to medium size commercial sound systems.

Different configurations in terms of output power and connectivity provide enormous flexibility for numerous applications.

The COM24 is capable of delivering an output power of 240Watt to 100 Volt constant voltage systems or 4 Ohm low impedance loads.

Six input channels with individual level control allow connectivity and mixing to a wide variation of music sources.

Four balanced microphone inputs (XLR)containing phantom power (15V) and two priority allow connection for almost any(dynamic or condenser)microphone.

Two inputs selectable between stereo unbalanced line (RCA) and microphone (6.3mm Jack) allow connection for any source such as CD-player, music computer or portable device,or enable to expand the total microphone count to 6.

The remote microphone and tele-paging inputs allow expansion of the system with a paging station(with chime tones) or couple the system with your business telecom system (or any other priority line source).

Using the priority mute contact, coupling and muting canbe done through an external fire alarm system.

The output level can be adjusted using a master volume control accompanied with 2-band tone regulation.

The level is indicated with a 5-segment VU-barwhile output selection is made possible using an integrated 5-zonespeaker switcher.

Both table-top installation or 19” (2HE) equipment rack mounting is made possible using the included adapters.



Key Features

  • 5-Zone output selector
  • Master volume with 2-band tone control
  • Individual input volume / mixing control
  • Included rack ears for 19" rack mounting

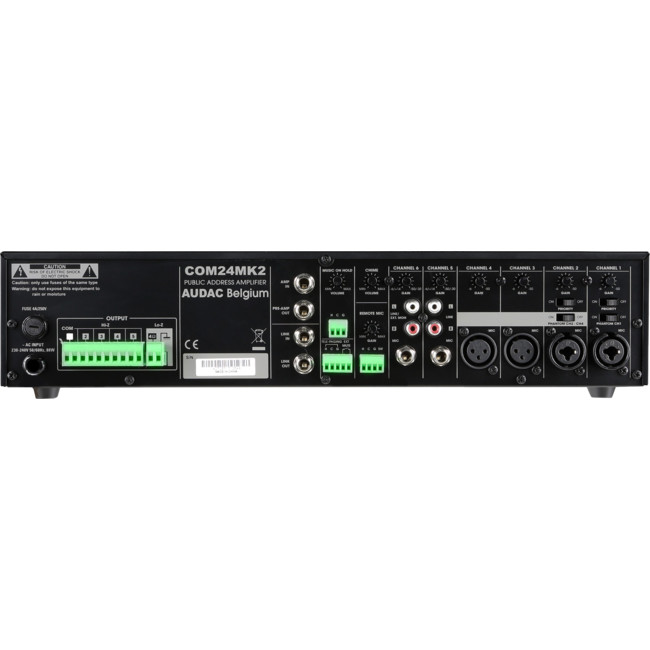

  • Terminal block output connections for 5 zone outputs (Hi-Z)
  • Terminal block 4? output connection
  • Mic / line inputs with priority (2x) & Phantom (4x)
  • Mic / line inputs
  • Remote inputs, chime & mute contacts
  • Link in- & outputs



SYSTEM SPECIFICATIONS
RMS Power 240 W
Signal / Noise > 90 dB
THD N (@ 1 kHz) < 0.5%
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply Transformer
Source 230 ~ 240 V AC / 50 ~ 60 Hz
Inputs Other Remote mic (Priority mic chime)
Tele-paging (Priority line)
Priority mute contact
Outputs Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)
10-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance 100 V / 4 ?
Inputs Balanced Microphone 1 - 4 Type 4 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 2 x XLR/Jack Combo & 2 x XLR
Other 4 x 15 V DC Phantom & 2 x Priority
Balanced Microphone 5 Type 1 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 6.3 mm Jack
Unbalanced Stereo Type 1 x Stereo Unbalanced Line ( 14 dB / -30 dB)
Connector RCA
PRODUCT FEATURES
Dimensions 420 x 88 x 320 mm (W x H x D)
Weight 11 kg
Mounting 19” / 2 HE or tabletop
Construction Steel
Colours Black
Accessories Included 19” Rackmount adapter
