COM12MK2 AUDAC 120W 100V MIXER AMP

5 ZONES - 100V

Code: 01453435

EACH
SPECIAL
BUY-IN
$1032.90 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

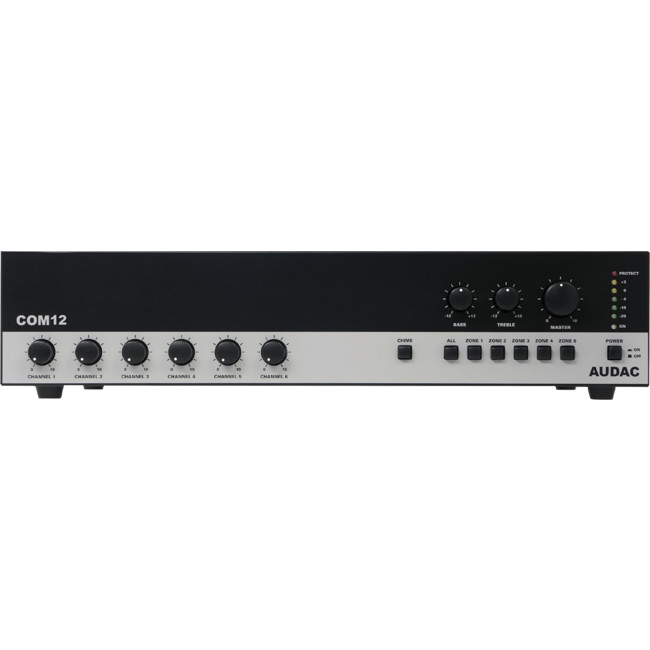

Audac COM12 PUBLIC ADDRESS AMPLIFIER 120W - 100V

The COM series public address mixing amplifiers are providing an ideal solution for small to medium size commercial sound systems.

Different configurations in terms of output power and connectivity provide an enormous flexibility for numerous applications.

The COM12 is capable of delivering an output power of 120Watt to 100 Volt constant voltage systems or 4 Ohm low impedance loads.

Six input channels with individual level control allow connectivity and mixing to a wide variation of music sources.

Four balanced microphone inputs (XLR) containing phantom power (15 V) and two priority allow connection for almost any (dynamic or condenser) microphone.

Two inputs selectable between stereo balanced line (RCA) and microphone (6.3 mm Jack) allow connection for any sourcesuch as CD-player, computer or portable device, or enable toexpand the total microphone count to 6.

The remote microphone and tele-paging inputs allow expansion of the system with a paging station (with chime tones) or couple the system with your business telecom system (or any other priority line source).

Using the priority mute contact, coupling and muting can be done through an external fire alarm system.

The output level can be adjusted using a master volume control accompanied with 2-band tone regulation.

The level is indicated with a 5-segment VU-bar while output selection is made possible using an integrated 5-zonespeaker switcher.

Both table-top installation or 19” (2HE) equipment rack mounting is made possible using the included adapters.

Description:   https://images.pvs.global/audac/imagemaps/COM12MK2.png?width=1024&404=default

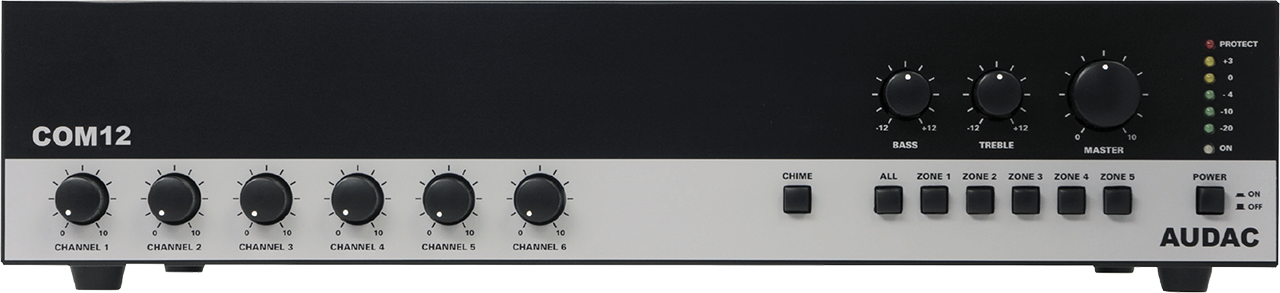

  1. 5-Zone output selector
  2. Master volume with 2-band tone control
  3. Individual input volume / mixing control
  4. Included rack ears for 19" rack mounting

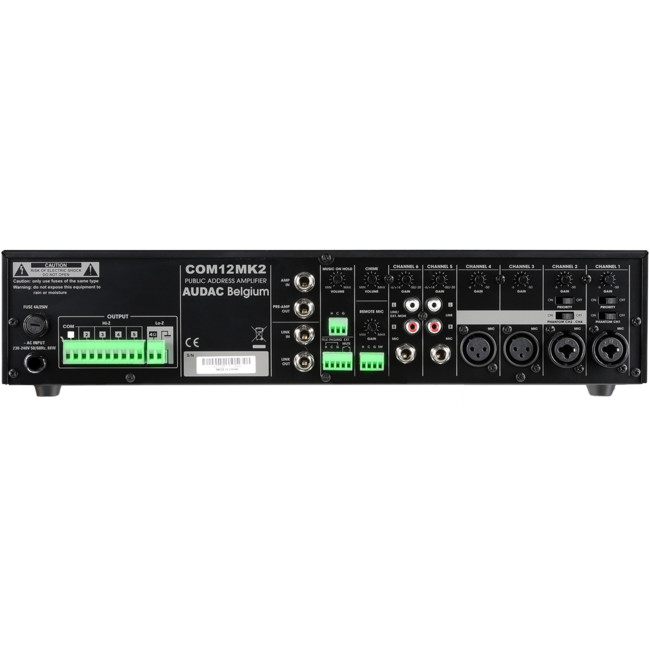

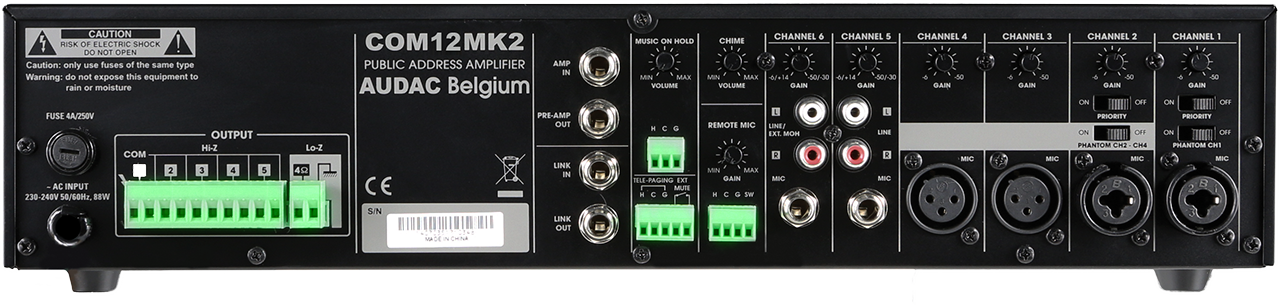

  5. Terminal block output connections for 5 zone outputs (Hi-Z)
  6. Terminal block 4? output connection
  7. Mic / line inputs with priority (2x) & Phantom (4x)
  8. Mic / line inputs
  9. Remote inputs, chime & mute contacts
  10. Link in- & outputs



SYSTEM SPECIFICATIONS
RMS Power 120 W
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.5%
Crosstalk (@ 1 kHz) > 70 dB
Technology Class A/B
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply Transformer
Source 230 ~ 240 V AC / 50 ~ 60 Hz
Inputs Other Remote mic (Priority mic + chime)
Tele-paging (Priority line)
Priority mute contact
Outputs Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)
10-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance 100 V / 4 ?
Inputs Balanced Microphone 1 - 4 Type 4 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 2 x XLR/Jack Combo & 2 x XLR
Other 4 x 15 V DC Phantom & 2 x Priority
Balanced Microphone 5 Type 1 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 6.3 mm Jack
Unbalanced Stereo Type 1 x Stereo Unbalanced Line (+14 dB / -30 dB)
Connector RCA
PRODUCT FEATURES
Dimensions 420 x 88 x 320 mm (W x H x D)
Weight 9.700 kg
Mounting 19” / 2 HE or tabletop
Construction Steel
Colours Black
Accessories Included 19” Rackmount adapter
