EPA252 AUDAC 2 X 250W RMS POWER AMP

CLASS D

Code: 01453400

5414795039179
EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
$1245 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

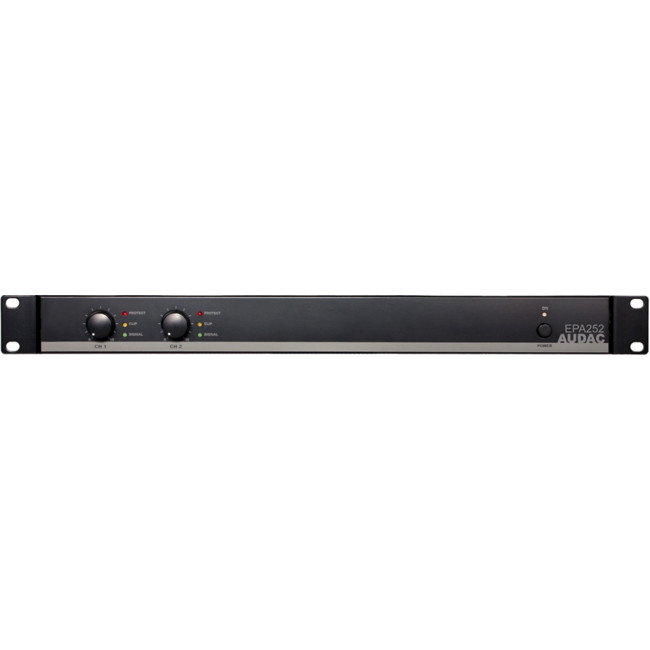

EPA252- Dual Channel Class D Power Amplifier

The EPA series are energy efficient Class-D Specifications power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi-zone distributed speaker
systems.

They come available in various models with different output configuration and power ratings.

An outstanding sound quality is combined with other knownadvantages of Class-D amplifiers such as high energy efficiency.

Automatic signal detection switches the amplifier to standby mode when no input signal is detected.

This makes the amplifier comply to international energy and environmental requirement standards.

The compact size and lightweight design only requires a single 19” rackspace, while making them suitable for both fixed rack and mobile applications.

The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability.

The EPA252 is built as a dual channel (Stereo) amplifier containing two individually controllable channels capable ofdelivering a power of 2 x 250 Watt in stereo mode.

In bridge mode, an output power of 500 watt can be delivered to a single load. It features various specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload.

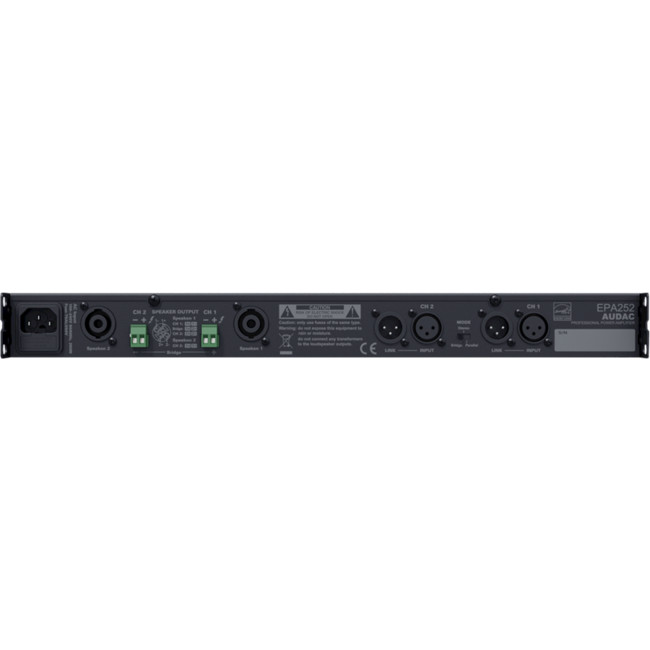

The signal input connections are implemented using balanced XLR connectors with link output connectors, allowing linkthrough to other amplifiers.

Loudspeaker outputs are connected using both Speakon compatible and terminal block output connectors.



Features

  • 2 x 250 Watt RMS output power
  • Energy-star certified
  • Standby energy saving mode
  • Lightweight Class-D amplifier
  • Convection cooled
  • Advanced protection circuitry
  • Stereo, parallel and bridged mode
  • High efficiency

Applications

  • Clubs & pubs
  • Restaurants & bars
  • Warehouses & retail stores
  • Public & office buildings
  • Mobile installations

Specifications

  • RMS power @ 4 Ohm Stereo
2 x 250 Watt
  • RMS power @ 8 Ohm Stereo
2 x 130 Watt
  • RMS power @ 4 Ohm Bridge
500 Watt
  • Frequency response
20 Hz - 20 kHz
  • Signal to noise ratio
> 90 dB
  • THD N by 1 kHz (1/2 Rated Power)
< 0.1%
  • Crosstalk
> 70 dB
  • Technology
Class - D
  • Power supply
Switching mode - 100-240V AC - 50/60 Hz
  • Input sensitivity
0 dB (1V RMS)
  • Input impedance
12 k Ohm balanced
  • Protection
DC Short-circuit
  Over heating
  Over load
  Signal limiting
  • Cooling system
Convection cooled
  • Connectors
Input XLR input & signal linkthrough
  Output Speakon compatible & 2-pin terminal
block (5.08 mm)
  • Operating Temperature
0° ~ 40°C at 95% humidity
  • Power Consumption
224 Watt (1/3 MOP at 1 kHz)
  • Standby power consumption
0.8 Watt (~30 sec standby time)
  • Dimensions (Width x Height x Depth)
482 x 44 x 330 mm
  • Weight Net
4.4 Kg
  • Mounting
19"
  • Unit Height
1 HE
  • Construction
Steel
  • Colour
Black
  • Shipping weight and Volume
Kg - 0.028 Cbm

*AUDAC reserves the right to change specifications without notice: this is part
of our policy to continuously improve our products.
