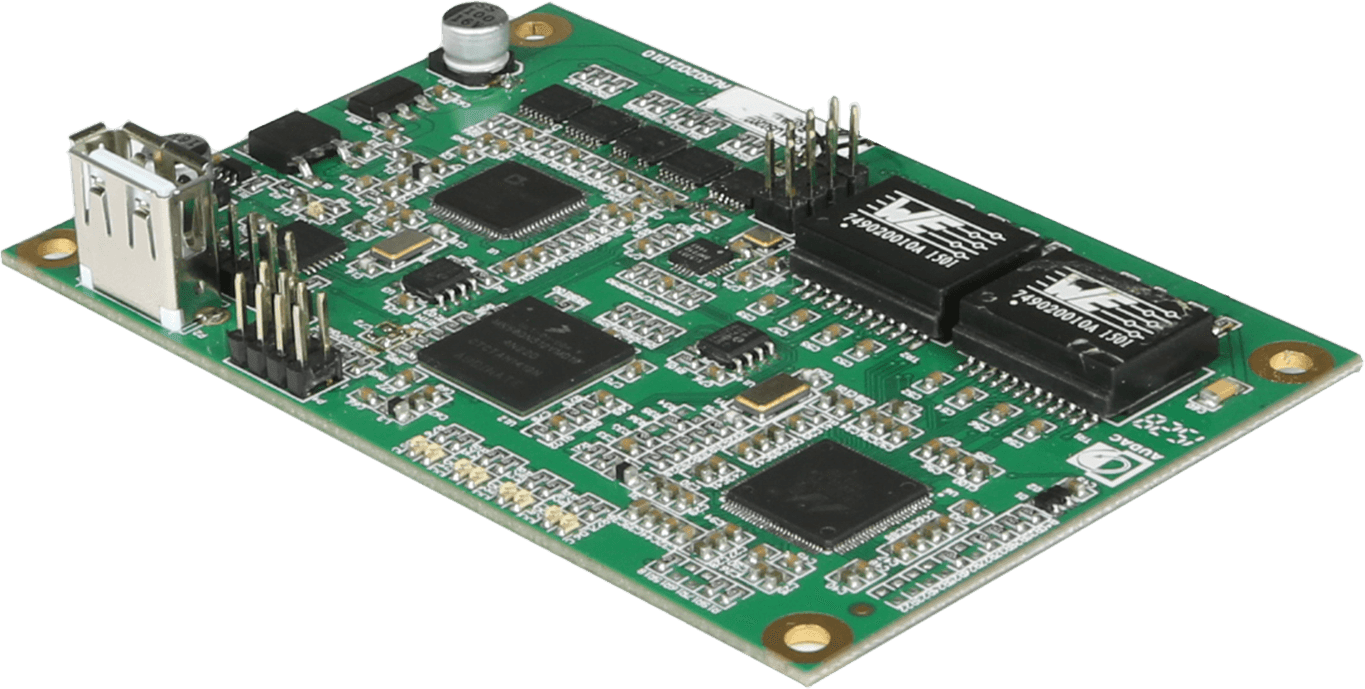

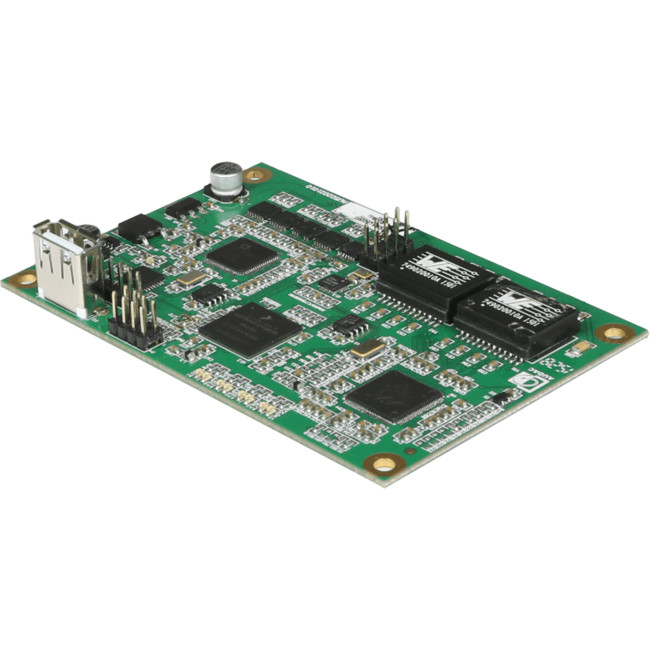

The ANX44 is a Dante audio network interface for installation in the XMP44 professional modular audio system,featuring four input and four output channels.
The installation of this optional module allows the XMP44to be integrated into any DANTE enabled AV network and flawlessly transfer digital audio with any compatible product on the market.
The bidirectional audio exchange with the 4 SourceCon™ interface card slots allows distribution ofthe audio stream from the installed modules, allowing any radio tuner, media player, internet radio or other audio source distribution throughout your Dante network.
A true plug & play solution is created when linking multiple DANTE enabled devices with each other on a standardIP network.
It offers self-configuring solutions by using DHCP configuration, while the connection can be made to any existing 100 Mbit or 1 Gbit network infrastructure.
Bidirectional signal transmissions with a sampling frequency of 48 kHz and a bit depth of 24 bit are simultaneously possible on all in and output channels while guaranteeing an incredibly low latency with a maximum up to 5 ms. (depending on the network occupation).

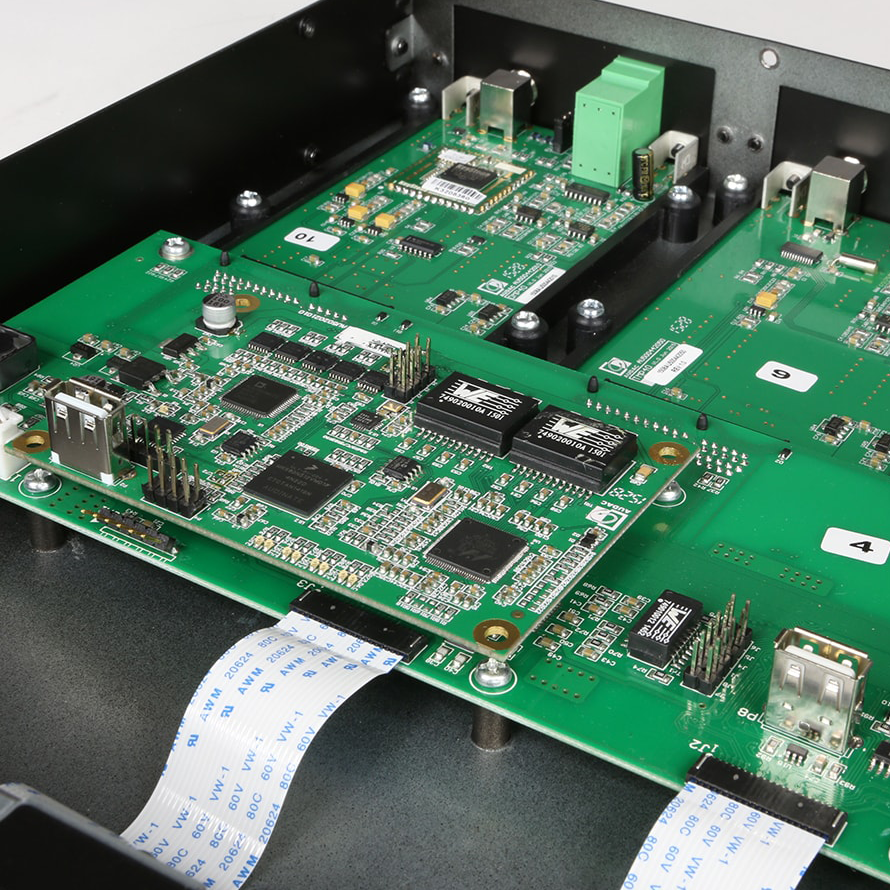

The ANX44 comes delivered as an installation kit, including all required accessories for integration into the XMP44 chassis. Installation shall be performed by qualified technicians
