Z624 FOUR ZONE MATRIX MIXER

Australian Monitor Z624 Zone Mixer and Paging system 4 mono zone outputs

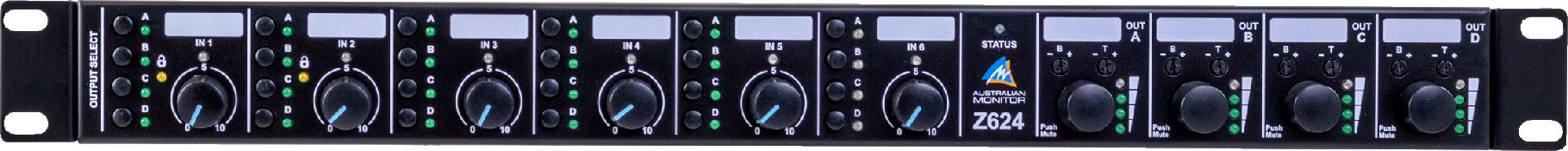

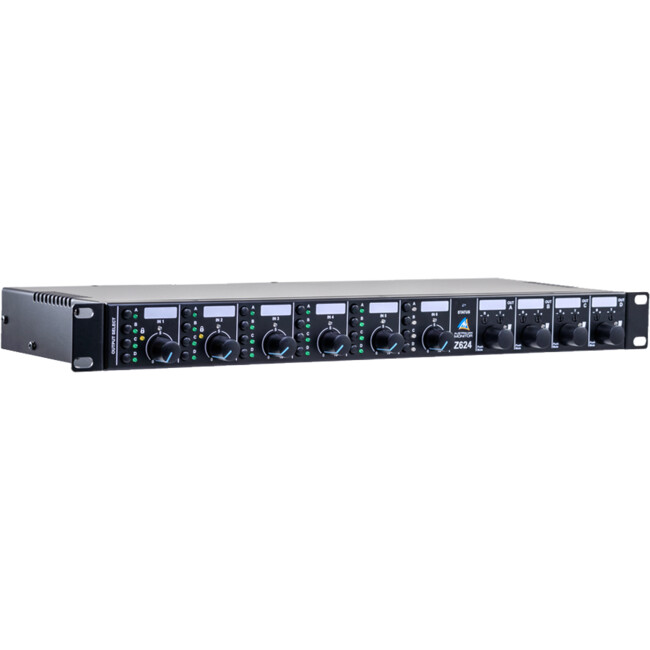

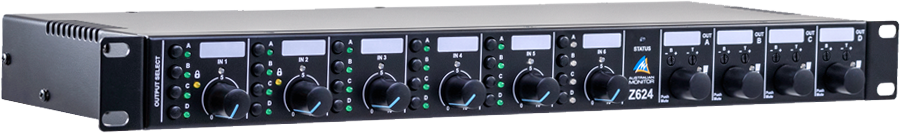

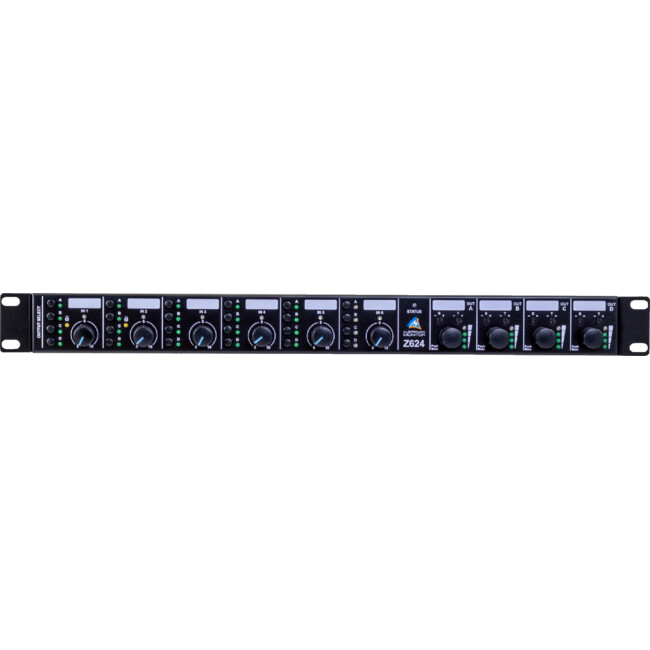

The Z624 is Australian Monitors entry level zoning solution featuring 6 Mic/Line inputs which can be independently mixed or matrixed to 4 output zones. Routing is achieved using an intuitive console style front panel.

Additional features of the system include a two stage priority scheme, customisable tone generator, message player via micro SD card, external muting and control lockouts.

The system can be expanded with various accessories to provide remote control, paging capability and local audio inputs.

TheWP10,WP4RandWPVOLwall controllers provide in-zone control of various functions such a source selection, volume control and message playback.

TheZ624PSpaging station with gooseneck microphone offers zone selection and all call capabilites.

Local audio inputs can also be added to the system such as theWPBTBluetooth Receiver and theWPMLMic/Line audio input wall panel.

Finally, the Z624 configuration software enhances the system capabilities by offering advanced wall panel configuration, priority and paging routing customisation, rear panel setup, tone generator level offsets and paging level offsets.

Key Features:

• 4 mono zone outputs

• 6 Mic/Line inputs and 1 local input per zone

• Input 1 2 priority control

• Supports twoWP10,WP4RorWPVOLwall panel controllers per zone

• Local input per zone, via the accessory ports, allows connection ofWPBT,WPMLorWPXLR wall panels

• OptionalZ624PSPaging Station with goosenck microphone

• Built-in customisbale Tone Generator and Message Player

• Intuitive front panel console style routing

• Z624 PC Configuration Software free via download

• USB connectivity

Inputs and Outputs
The Z624 has 6 Mic/Line which can be independently mixed or matrixed to any of the 4 balanced mono outputs.

A local audio input can optionally replace Input 6 for each zone using an audio wall panel.

Tone Generator
An in-built tone generator provides EVAC, ALERT, INTRUDER, BELL and CHIME tones. The tones can be overridden using replacement files placed on a customer provided micro SD card.

Priority Control
Input 1 and Input 2 can be enabled as priority inputs which can mute lower priority inputs. Each output zone can be independently enabled or disabled in the priority scheme.

In addition, a MUTE contact closure is also provided for globally muting the system.

Z624 Configuration Software
The Z624 includes a free, downloadable PC configuration software to setup and control the system.

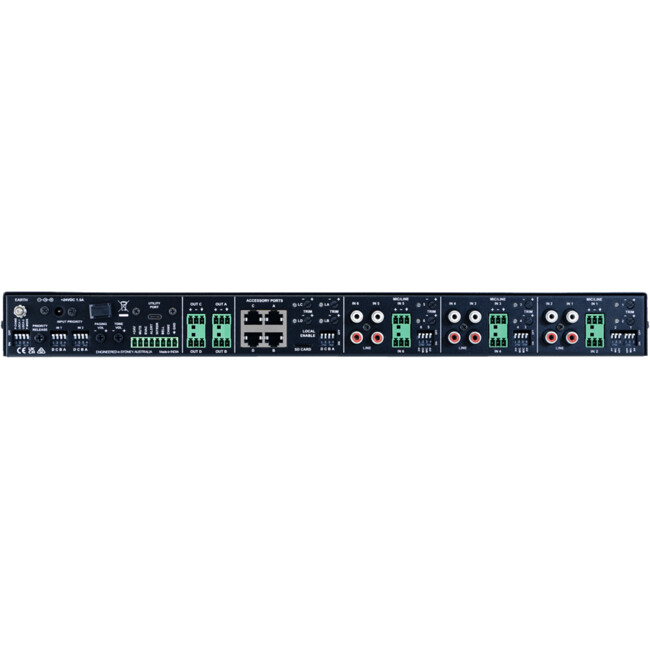

Easily modify rear panel controls, priority schemes, signal routing, level offsets and wall panel customisation.

Download it now from the download section of this page and see what the Z624 can do.

Z624PS

The Z624 supports one Z624PS paging station which can be connected to any accessory port.

The paging station has four zone selection buttons for individual zone paging as well as an all page button.

Wall Panel Control and Audio
The Z624 system supports up to two wall panel controllers per zone.
Wall panels can provide source selection, volume control, muting and message playback controls.
• WP10 - 10 Button wall controller
• WP4R - 4 Button and Volume Control
• WPVOL - Volume Control

Additionally, the system supports up to two audio input wall panels which can feed local audio back into the Z624 system via the accessory ports (The wall panels are summed together in the Z624 and routed to replace Input 6).
• WPBT - Bluetooth receiver
• WPML - Mic/Line Input
• WPXLR - Line Level Input

Message Player
An in-built message player allows audio files to be played from wall panel controls.

Place audio files on a customer supplied micro SD card and then program the wall panels to trigger the messages using the PC configuration software.

Specifications:

Z624 Overwiew
