ES2120P 100V- 4 OHM 2X 120W POWER AMP

AUSTRALIAN MONITOR

Code: 01450604

9323383020108
Each
SPECIAL
BUY-IN
$849 inc GST
Increase value Decrease value
Qty Each
PDF Flyer
Enter 4 digit postcode

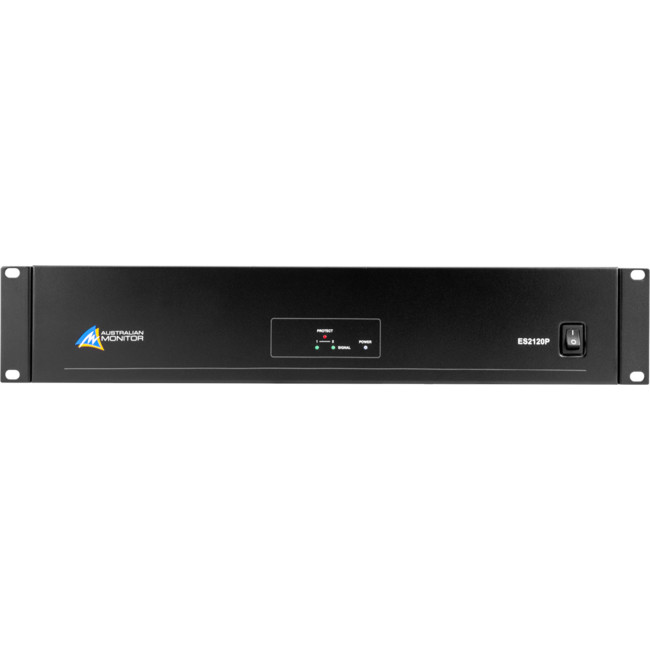

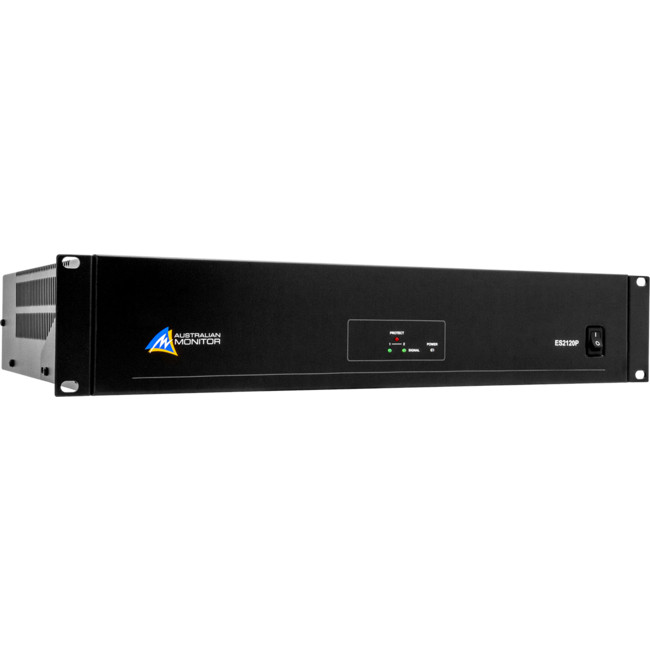

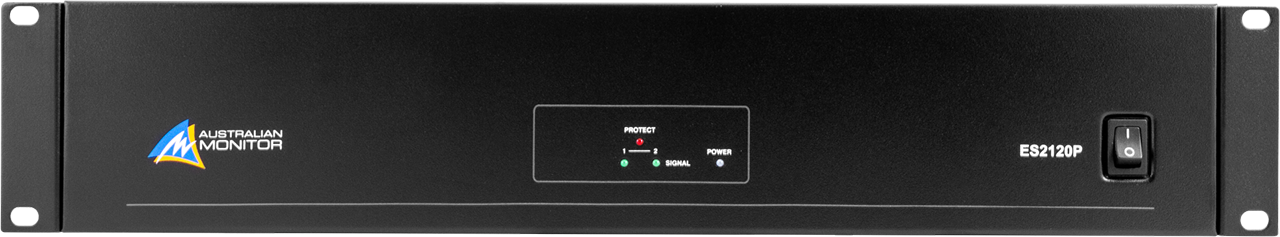

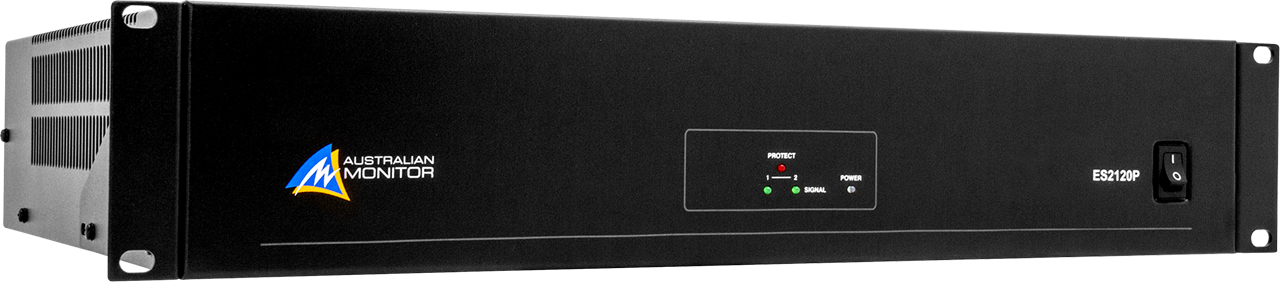

Australian Monitor ES2120P- 2 x 120W Power Amplifier

The ES2120P power amplifier delivers 120 watts per channel at 100 volt or 4 ohm in a 2 RU package.

The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require highquality commercial sound reinforcement.

Key Features

  • 2 x 120W amplifier
  • 4 ohm and 100 volt output options
  • Rear panel volume control
  • Balanced input and thru out
  • Fan cooled
  • 2 RU



Power amplifier



The ES amplifiers all feature a ruggedpower amplifier with short-circuit, over-load, and thermal protection.
Built for reliable, long term performance at a great pricepoint.





Power amplifier output mode

The ES power amplifiers all offer 100Vand 4? output options so you can choose the required output for your speaker application.

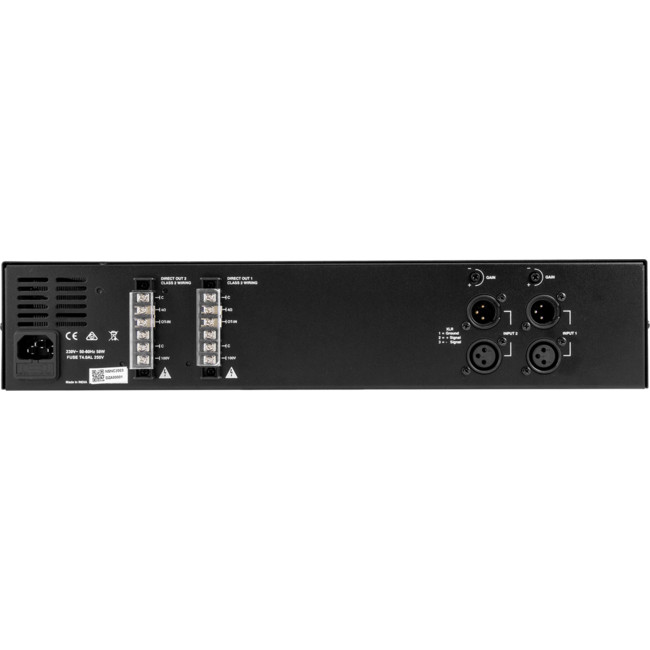

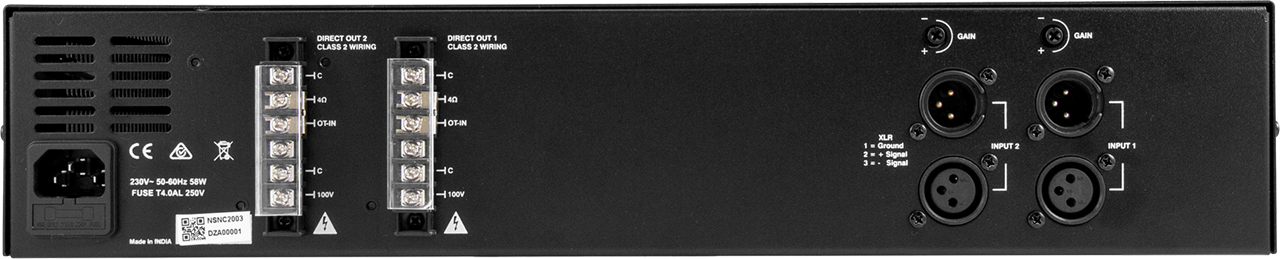

XLR Input and through output



The ES power amplifiers feature a female XLR input as well as a male XLR through output.
This allows easy cable daisy chaining of multiple amplifiers from a single audio source without cable splitting.

An input level attenuator is also provided to trim the input audio signal to the desired level for the amplifier.



Specifications

Output Power per Channel 120W Frequency Response 90Hz - 30kHz
Output Channels 2 THD+N < 0.01% (-3dB)
Output Mode 4 Ohm-100V Signal to Noise Ratio > 90dB
Input Voltage 230Vac 50-60Hz Input Sensitivity 150mVrms
Mounting 2RU Cooling Fan-assisted
Warranty 5 years
Product Dimensions
(W x D x H)
483mm x 271mm x 88mm Shipping Dimensions
(W x D x H)
545mm x 460mm x 160mm
Net Weight 7.45 Kg Shipping Weight 7.68 Kg
GTIN EAN 9323383020108
