PICOBLU-V2 30W MIXER AMP VERSION 2

WITH RENAME BLUETOOTH

Code: 01450507

4.32 kg
9323383020283
Each
ETA
28-JUL-2022
$396 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

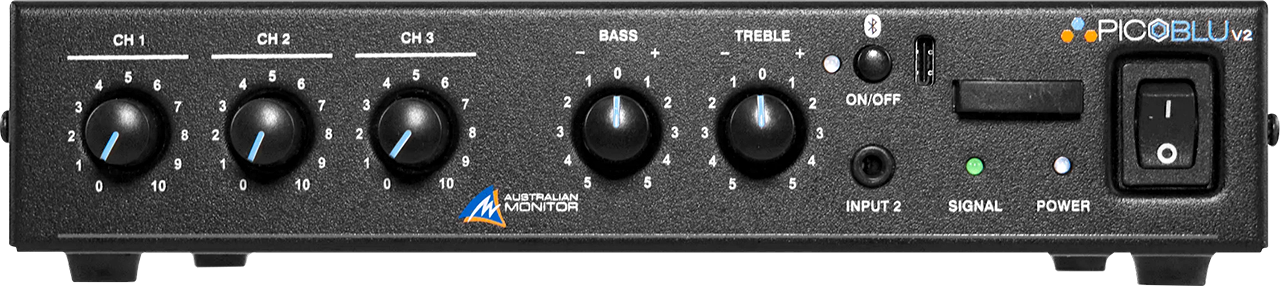

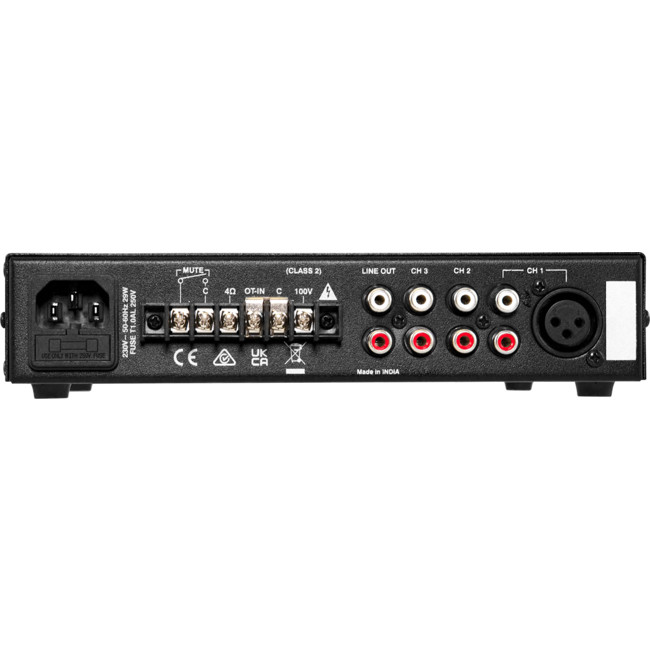

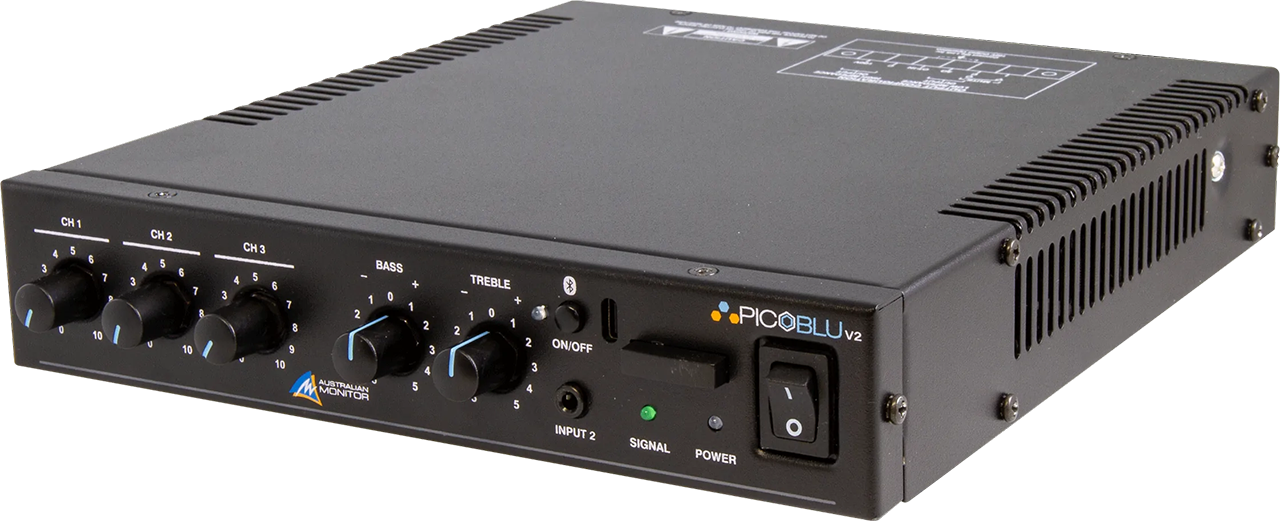

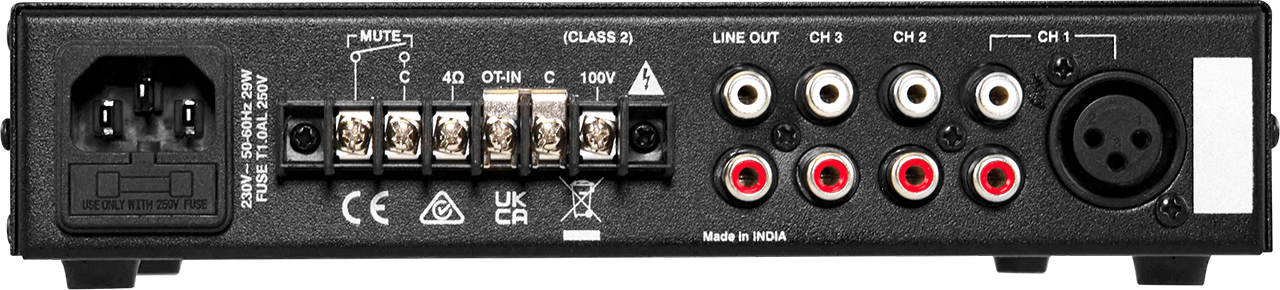

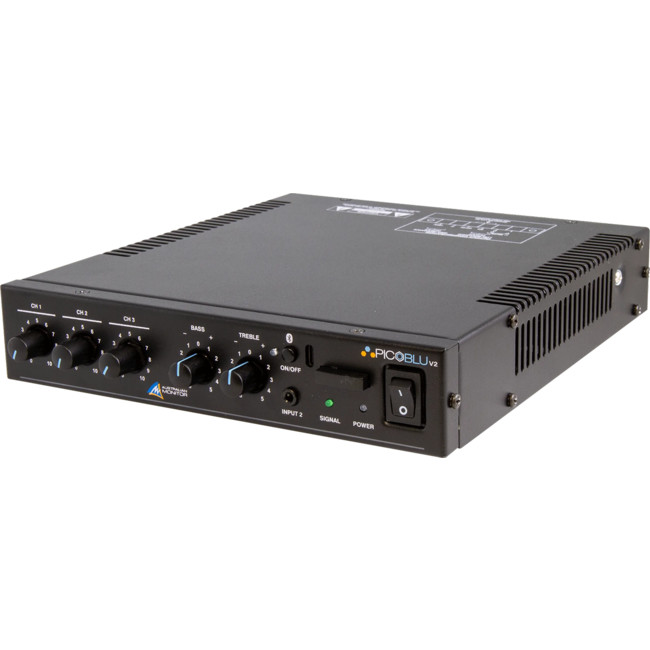

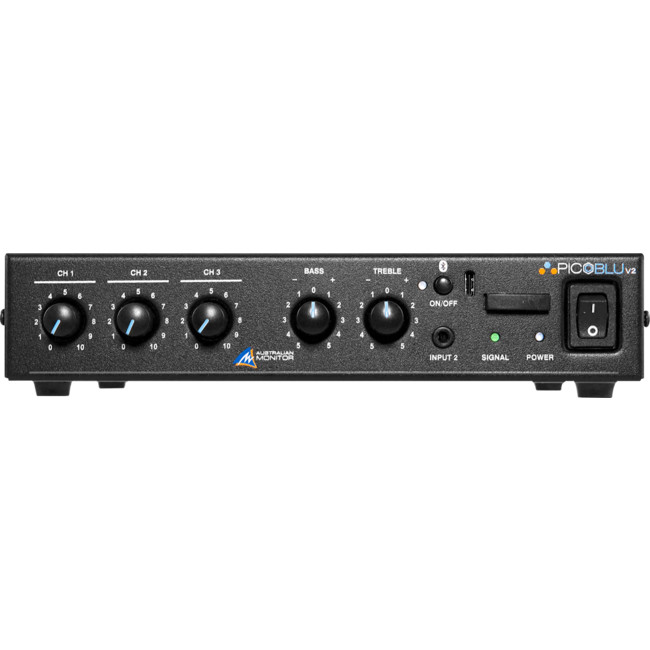

Australian Monitor - PICOBLUv2 - 30W Mixer Amplifier with Bluetooth renaming

The Australian Monitor PICOBLU®v2 is Australian Monitors second generation small form factor 30W Mixer Amplifier specifically designed for small space applications such as cafes, restaurants, small retail and classrooms.

The PICOBLU®v2 now includes an upgraded and programmable Bluetooth v5.1 module allowing customisation of the broadcast name, PIN number and various security features.

The system still maintains 3 input channels, including microphone, Bluetooth®and 3.5mm input jack options and an integrated 30W power amplifier with 4? and 100V output modes.

Capable of standalone, rack or under desk mounting, usingoptional kits, the PICOBLU®v2 can fit any application space with ease.



Key Features

  • 30W mixer amplifier
  • 100 volt or 4 ohm output
  • 3 Channel Mixer. Input 1 - MIC/Line, Input 2 - 3.5mm/Line, Input 3 - Bluetooth/Line
  • ProgrammableBluetooth name, PIN and security features via Bluetooth PC Control Software
  • USB-C programming connector
  • 3.5mm TRS jack line input
  • External mute contact closure
  • Small form factor
  • Rack or desk mounting kits options.PICO-RMKandPICO-DMK.





Specifications


    Output Power per Channel 30W Frequency Response 104Hz - 20kHz
    Output Mode 4 Ohm-100V THD+N < 0.2%
    Input Channels 1 MIC/Line and 2 Line Signal to Noise Ratio > 85dB
    Input Voltage 230Vac 50Hz Input Sensitivity MIC: 3mV - Line: 405mV
    Mounting 1RU Cooling Fan-assisted
    Warranty 5 years
    Product Dimensions
    (W x D x H)
    217mm x 287mm x 44mm Shipping Dimensions
    (W x D x H)
    315mm x 365mm x 105mm
    Net Weight 3.75 Kg Shipping Weight 4.7 Kg
    GTIN EAN 9323383020283
