SR2 REED SWITCH N/C

Code: 01305517

0.0300 kg
9328202027412
EACH
ETA
2024-04-09
TRADE ALERT!
$4.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

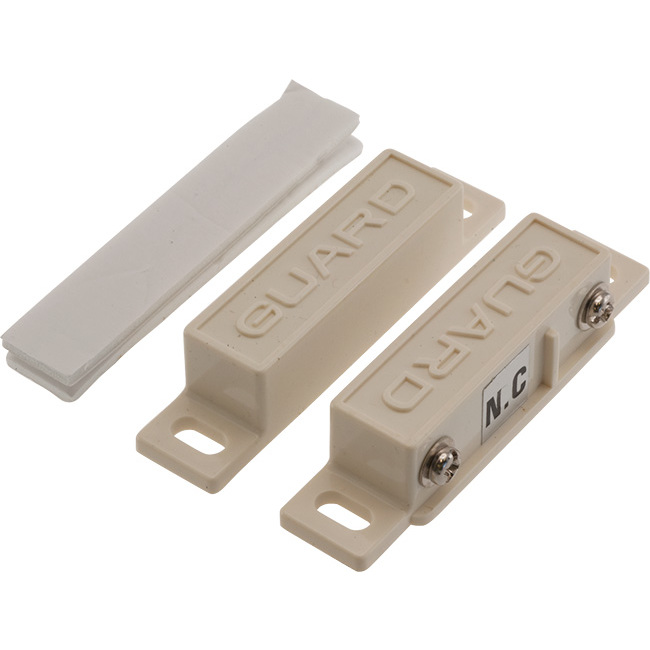

Standard N.C. (Normally Close) sealed reed switch. Used to secure an alarm circuit on a door or window.

  • Includes
    • Reed Switch
      • Dimensions: 13 (H) x 13 (D) x 64 (W) mm
    • Magnet
      • Dimensions: 13 (H) x 13 (D) x 64 (W) mm
    • 2x adhesive strips

Specifications

  • Operating gap:3cm Max.
  • Contact R.: 150m Ohm
  • Switching current: 0.25A
  • Switch voltage DC: 100V
  • Electrical life: 10,000,000 cycles
  • Case: ABS
