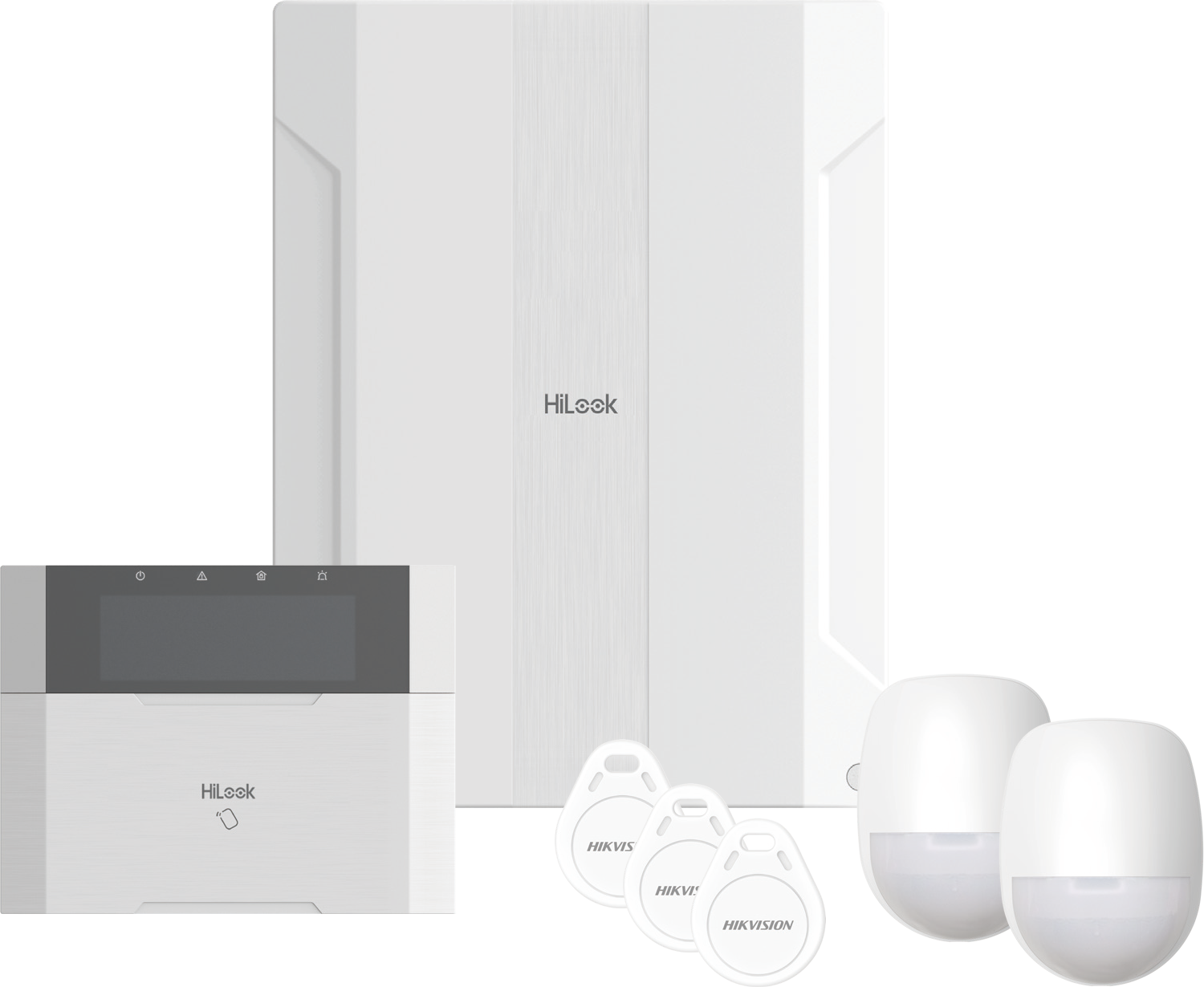

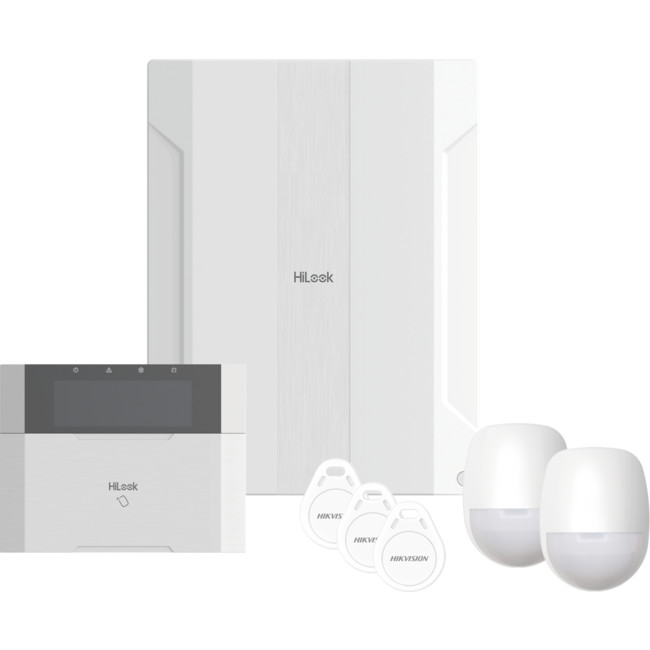

AX Hybrid Pro Kit(433MHz)

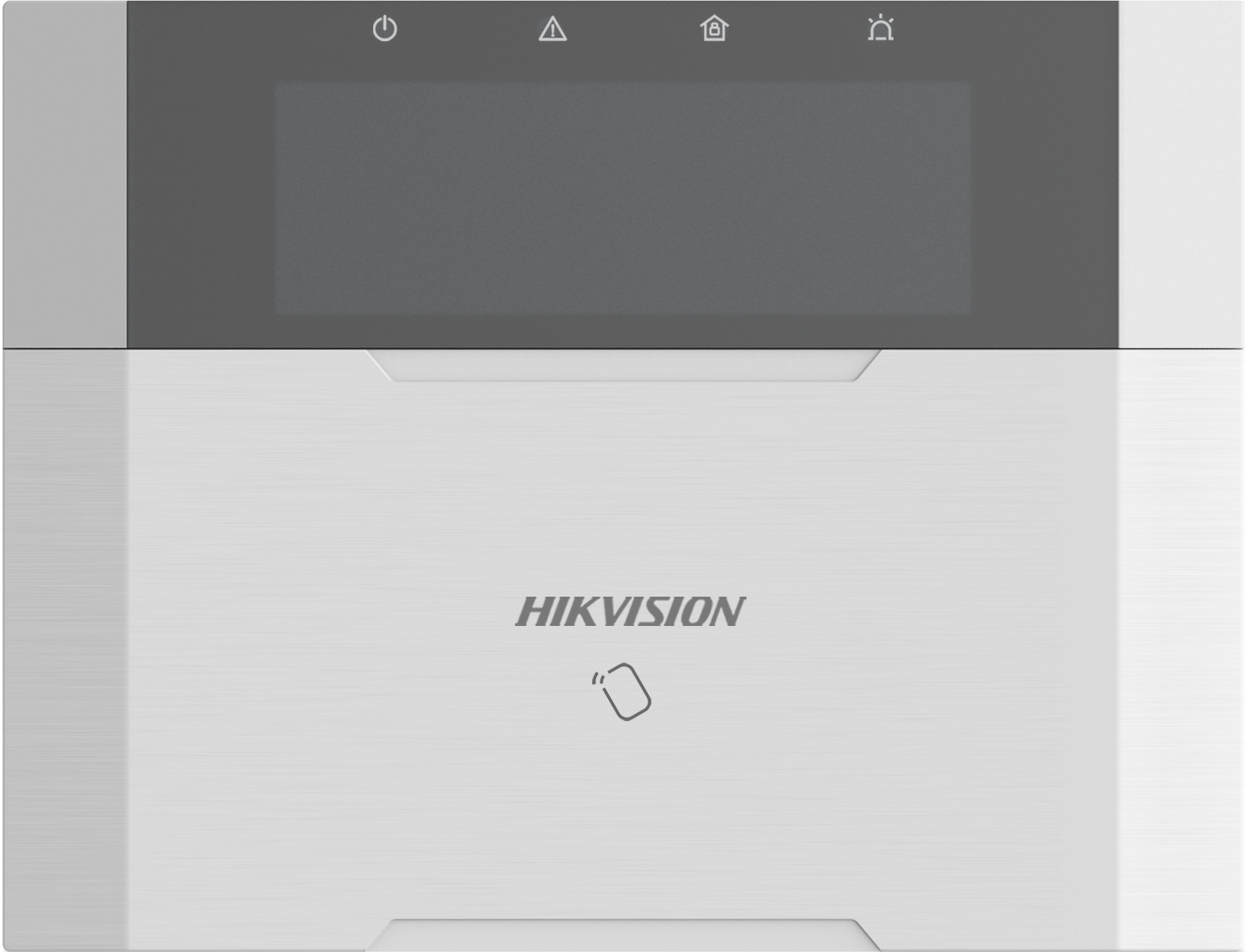

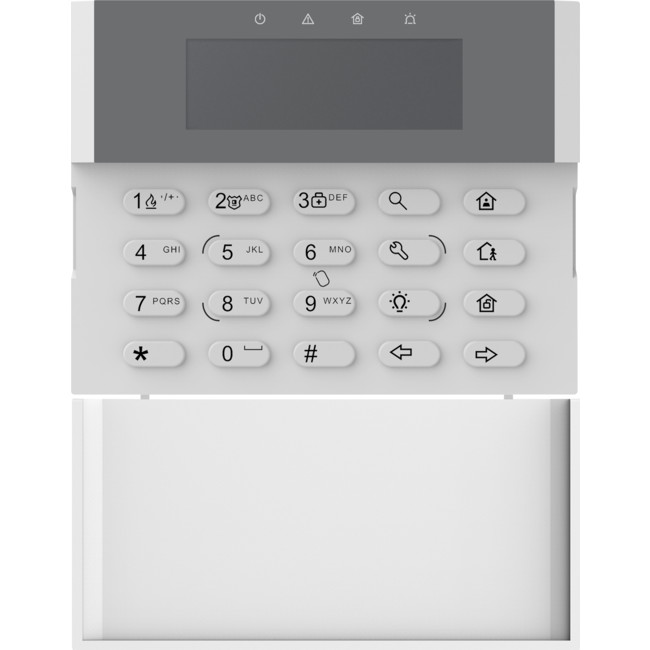

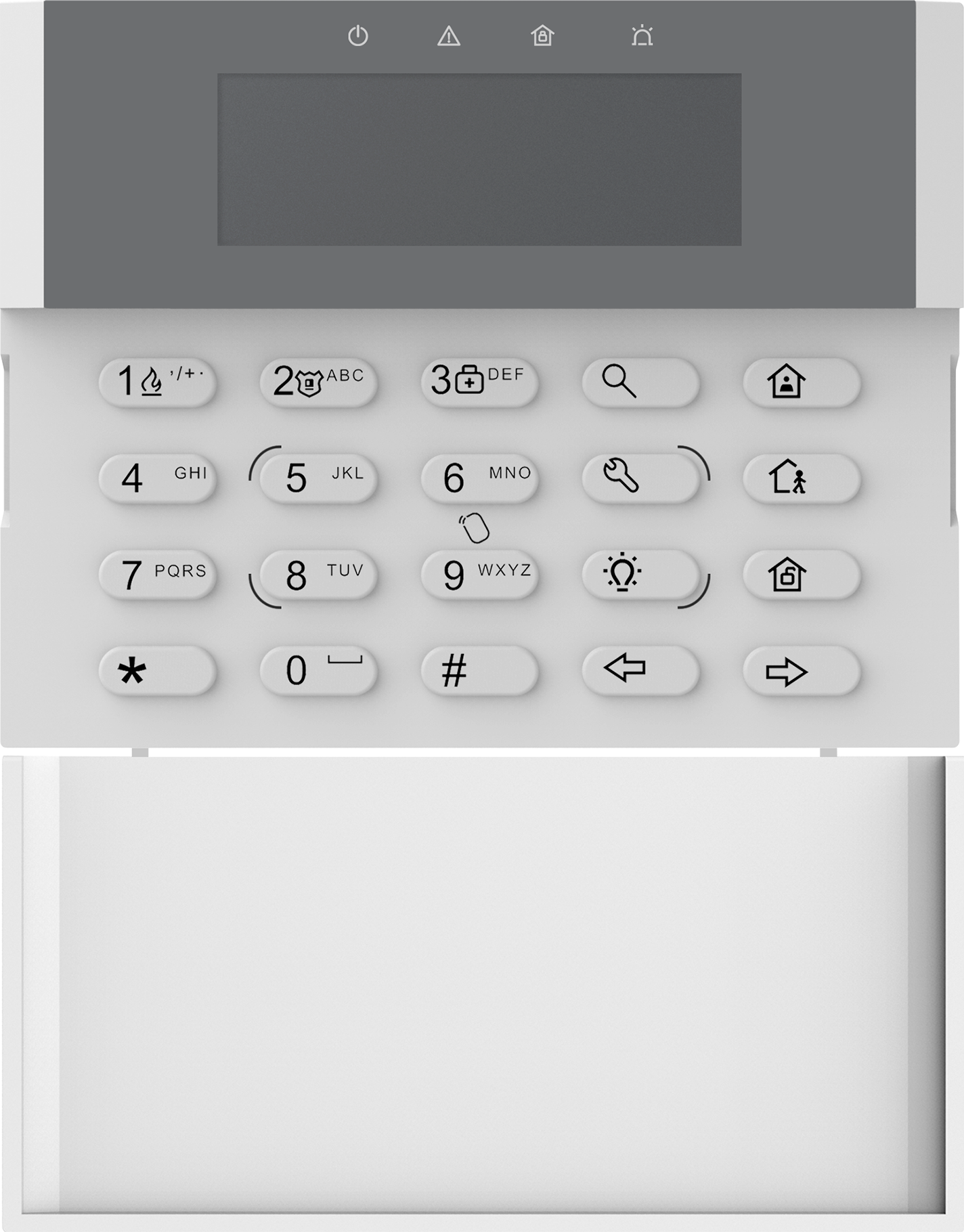

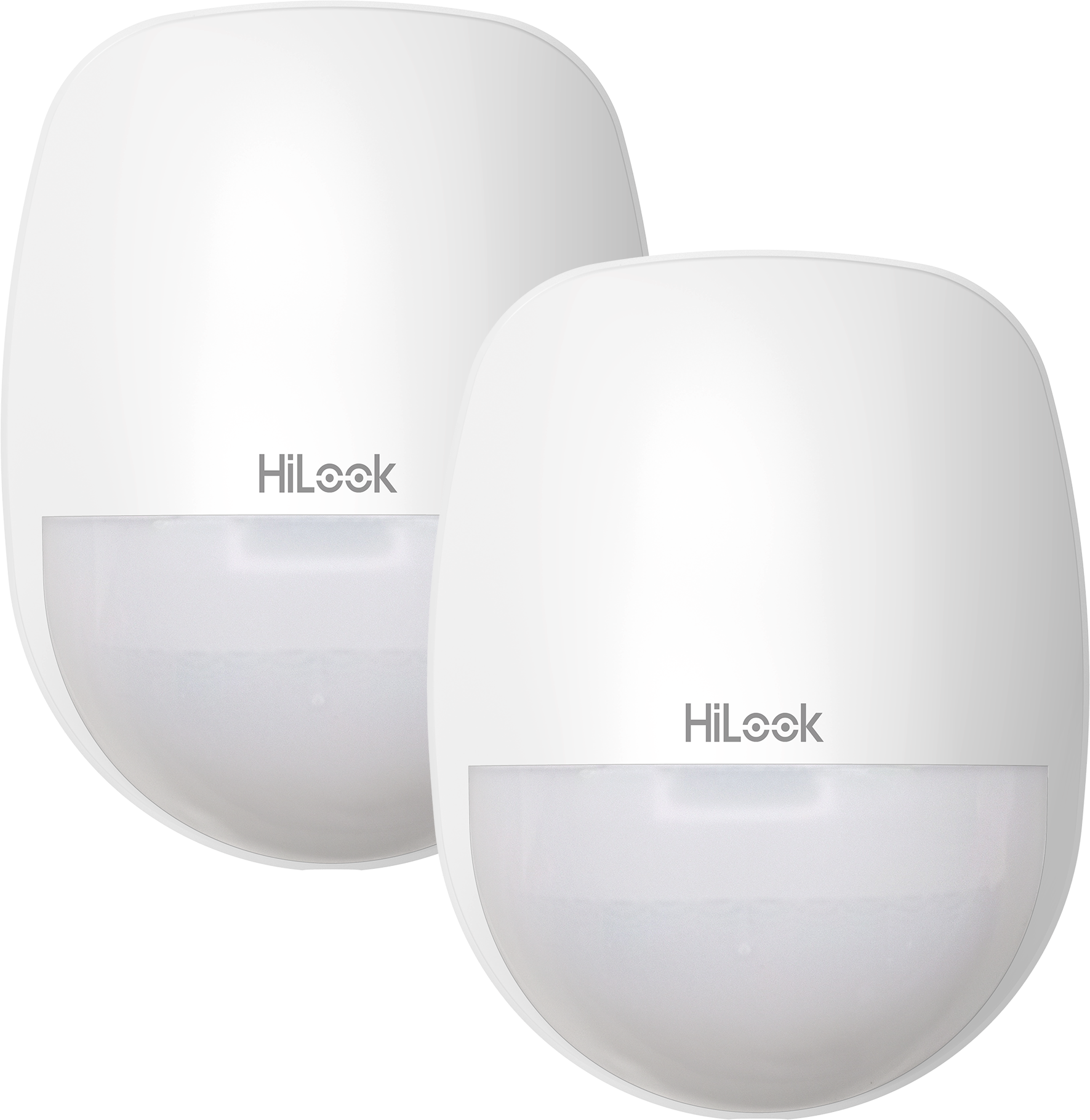

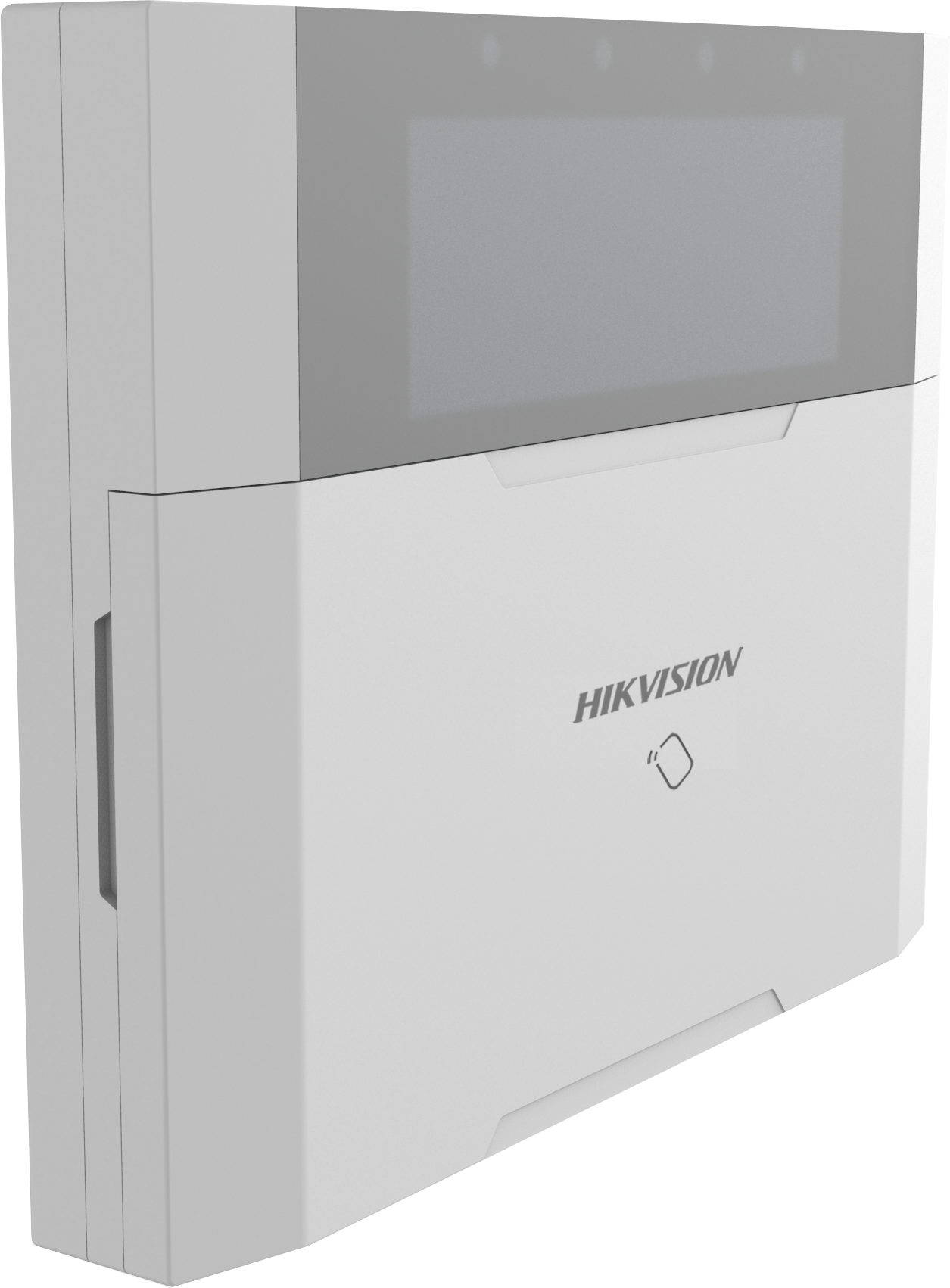

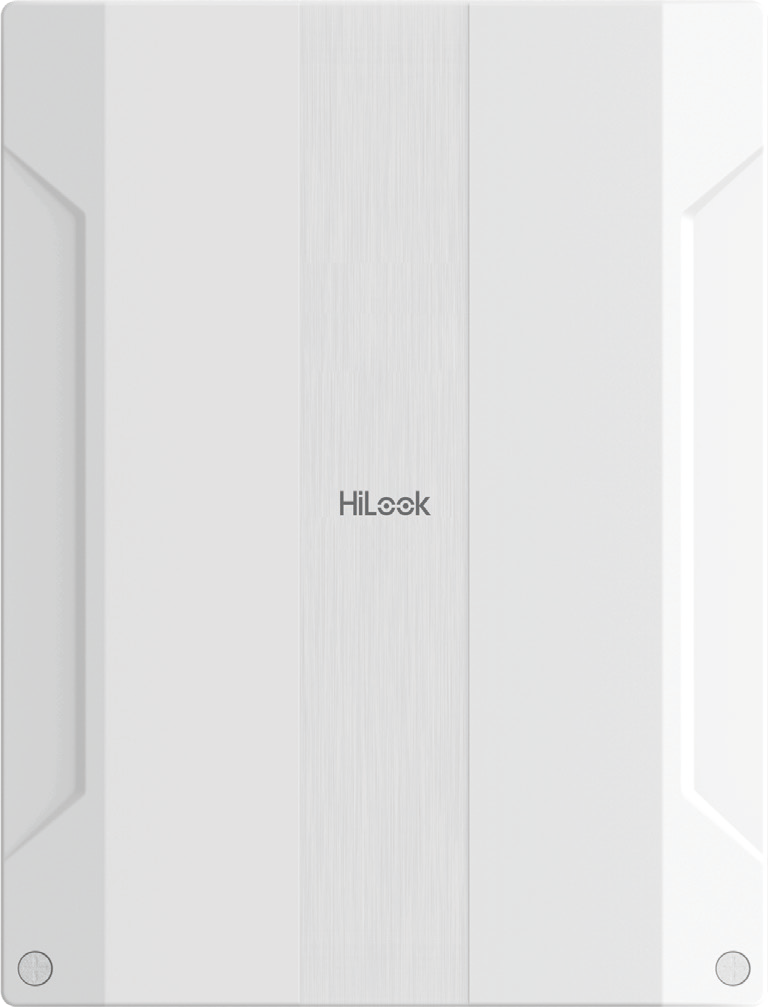

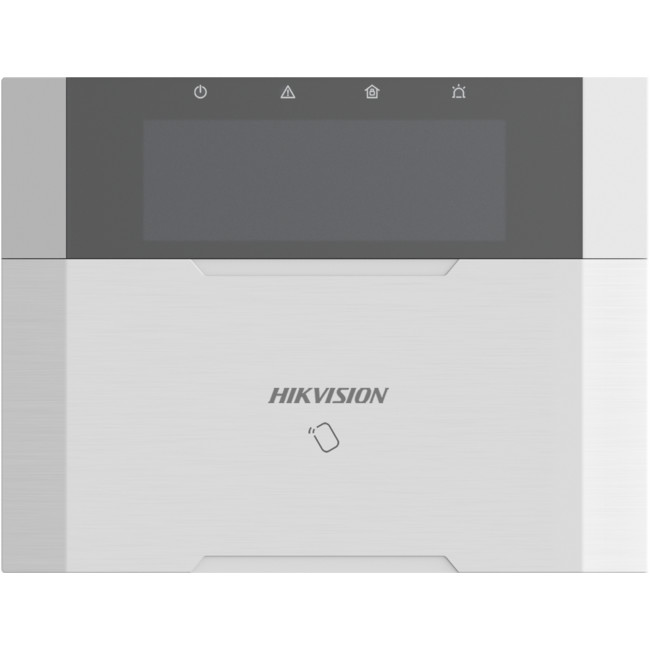

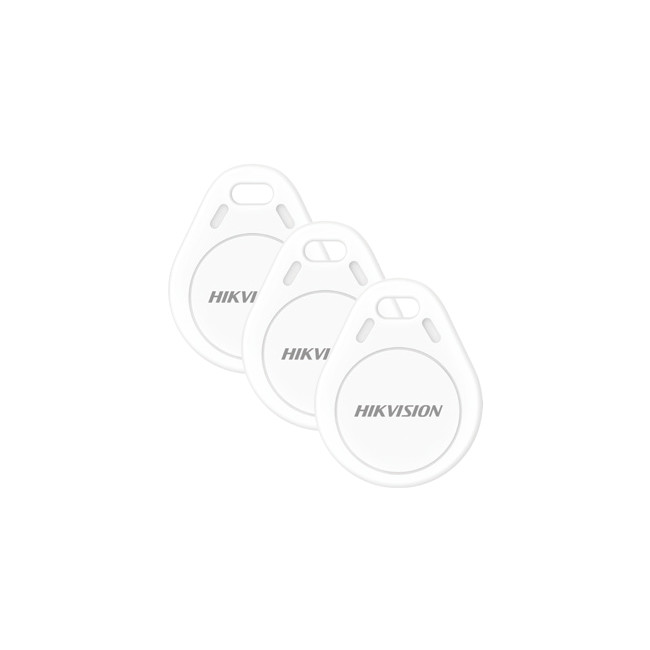

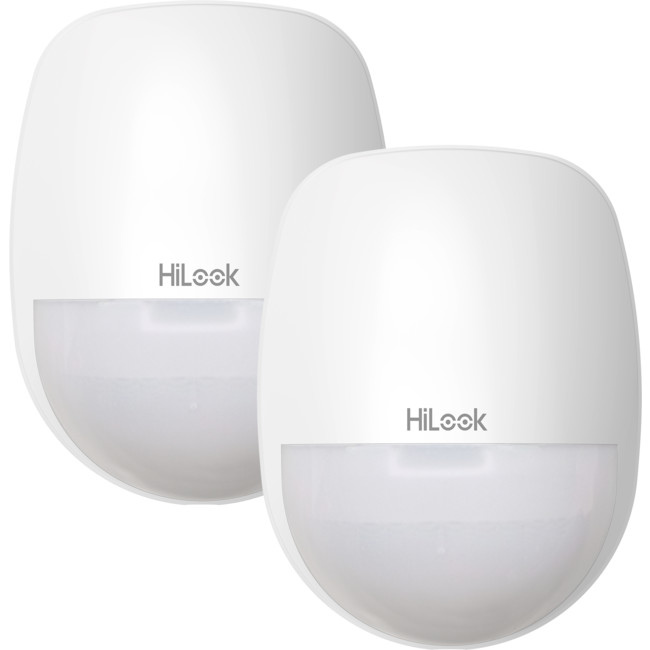

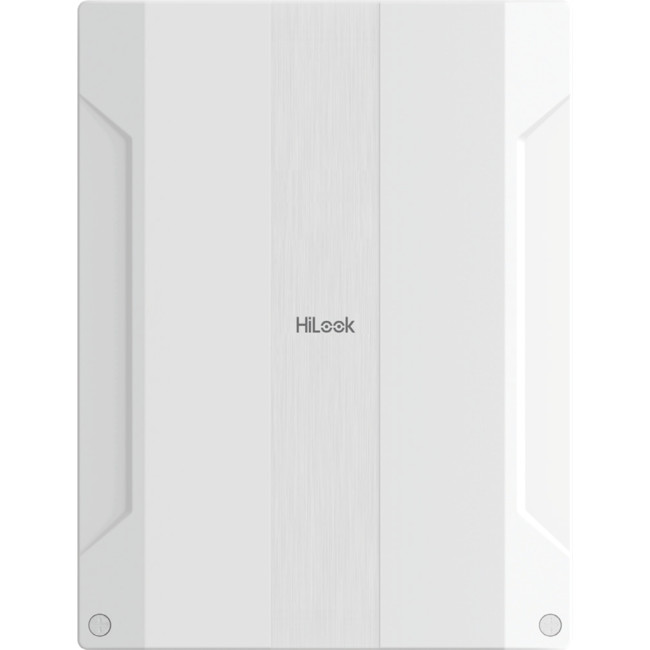

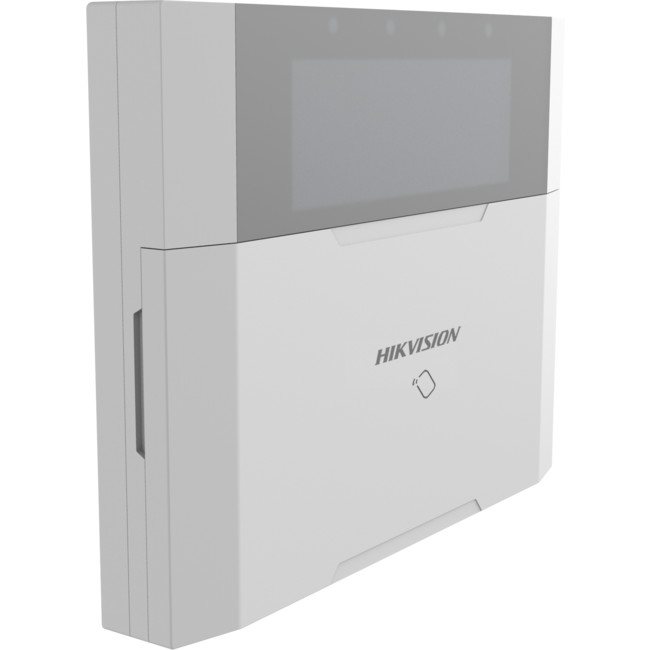

- Alarm system: 8 on-board zones, 4 on-board outputs (2 relay outputs and 2 I/O outputs) Include 1 Alarm Panel. 1 Keypad. 2 PIR and 3 tags
- Not included are PIR bracket, battery and power supply
Software features
Zones 48(8 on-board zones, max 4 wired PIRCAM)
Area 16
User
Installer: 1
Administrator: 1
Operator: 46
SMS notificationSupports (with GPRS/3G/4G module)
Onboard video clips2
ARC protocol
ISAPI: Supports iVMS-4200 client software and web client
Cloud P2P: Supports cloud P2P privacy protocol
DC-09: ARC accessible (ADM-CID/SIA-DCS)
CSV-IP: Supports CSV-IP
ISUP: Supports ISUP 5.0
Programming toolsWeb/iVMS-4200/Hik-ProConnect/Hik-ProConnect
Firmware upgradeWeb/iVMS-4200/Hik-ProConnect
End of Line ResistanceSupport 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K
Hardware features
Alarm input48 (8 on-board zones)
Alarm output48(Including 2 on-board relay outputs and 2 I/O outputs)
Power Output
1. Bell: maximum 12V 1.2A
2. AUX: maximum 12V 1.5A
3. Bell and AUX maximum 12V 2.1A
3/4G on board Optional
GPRS on board Optional
Bus1 Speed-X bus
Sounder output 1 Wired on-board sounder output
Tamper-Proof
1 switch to detect removal from mounting
1 switch to detect front cover open
Netowrk interface 1 RJ45 10M/100M Ethernet interface
Display
Indicator
4 On-board LEDs:
? 1 AC power LED indicator (Green)
? 1 System status LED indicator (Green/Red)
? 1 PSTN status LED indicator (Green/Red)
? 1 Mobile communication status LED indicator (Green/Red)
Electrical characteristics
Power interface 15 VDC 2.5A
Battery type Lead acid battery (12V 7Ah, battery is not included by default)
Battery life span Up to 36hrs
General
Operation temperature -10°C to 40°C
Operation humidity 10% to 90%
Shell material Plastic
Color White
Dimension (WxHxD)261 mm × 199 mm × 86.4 mm 997 g
Device management

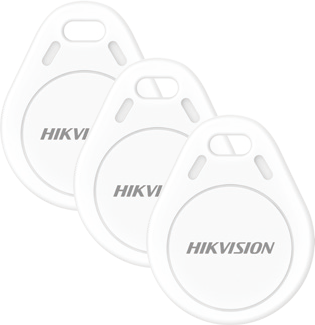

Tag 48
Keyfob 48
Keypad 4
Wireless sounder 8
