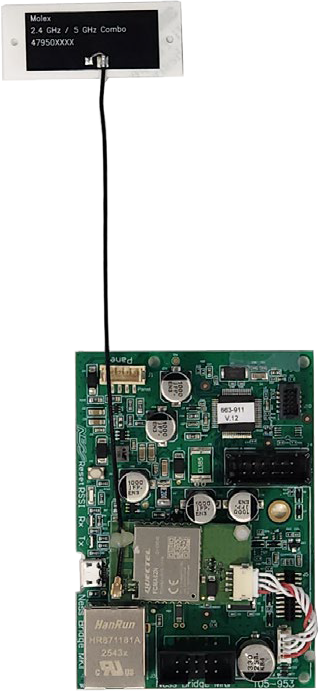

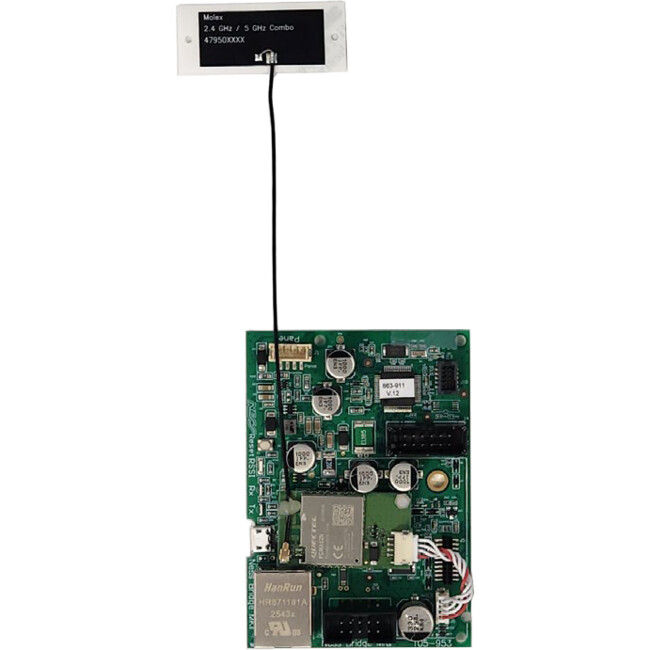

106-018 BRIDGE PLUS GEN2 INTERFACE - NESS
Ness-Bridge Plus is an easy to install internet interface providing internet connectivity and IP Monitoring for Ness DPlus/D8/D16 control panels. Ness-Bridge Plus in combination with the Ness Mezzo app provides powerful remote operation features for your Ness control panels.
Bridge Plus Features:
- Ethernet & WiFi 6 (2.4GHz/5GHz) connectivity (Automatic Ethernet priority)
- Supports IP Monitoring over Ethernet and WiFi
- Supports DUAL PATH monitoring (internet + optional 4G or third party devices)
- Supports industry standard ArmorIP and CSV IP monitoring protocols
- Automatic (configurable) firmware updates Over The Air (OTA)
Mezzo App Features:
- Arm and Disarm 1
- Home Mode operation 2
- Operate panel outputs2 *
- Receive Push Notifications for Arm/Disarm and alarm events 2
- View zones and panel status 2
- Free and subscription app versions available
1 Available in Mezzo App free version.
2 All features available in the subscription version.
* Outputs require optional 106-013 Relay Board/s.
For best compatibility, please update your Ness Mezzo app to the latest version before adding a Ness-Bridge Gen2.
Search Google Play and Apple App Store for "Ness Mezzo" or use the QR code links in the Ness-Bridge Gen2 manual.
Ness Mezzo App – Free & Subscription Options
Ness Mezzo app is compatible with Ness Mezzo hardware as well as both Ness-Bridge Gen1 and now Ness-Bridge Plus.
Ness-Bridge Gen1
When used with Ness-Bridge Gen1, the Ness Mezzo app currently retains its existing feature set at no charge, with no subscription required.* Enhanced features or services may require a paid subscription in the future.
Ness-Bridge Plus Gen2 – 3 Months Free
Ness Mezzo app is also compatible with the new Ness-Bridge Plus, offering enhanced capabilities and a flexible subscription model.
When using Ness Mezzo app with a Ness-Bridge Plus, you receive 3 months free access with all features enabled from the date of activation.
After the initial 3-month introductory period, Ness Mezzo app continues with a $5 per month subscription.**
After the initial 3-month introductory period, you can choose to subscribe to unlock the full range of Ness Mezzo app and Ness-Bridge Plus features, including Event History, Alarm Push Notifications, Output Control and other exciting new functionalities as they become available.
* Existing cloud-enabled features will remain available for as long as Ness Corporation continues to operate and support the associated cloud services.
** Remote Arming and Disarming remains available in the free version.
{tab Specs}
- Ness-Bridge PCB Dimensions 92 x 65 x 18mm
- Interface -RJ45 Ethernet to local LAN / 4-wire loom to control panel
- Connectivity Ethernet (auto default), WiFi 2.4GHz / 5GHz
- CoMMS IP Monitoring via ArmorIP, CSV protocols
- Max. devices per Mezzo app 10
- Power requirement 13.8V DC via 4-wire loom to control panel
- Average current draw 50mA
- Compatibility Ness DPlus, D8XD / D16XD (Rev6 and later), D8XCEL 4G / D16XCEL 4G
