SDJ90C1 90CM OFFSET SATELLITE DISH

FOXTEL APPROVED F10096

Code: 01001080

11.60 kg
EACH
10
Low Stock
DON'T PAY $395.25
TRADE ALERT!
$369 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

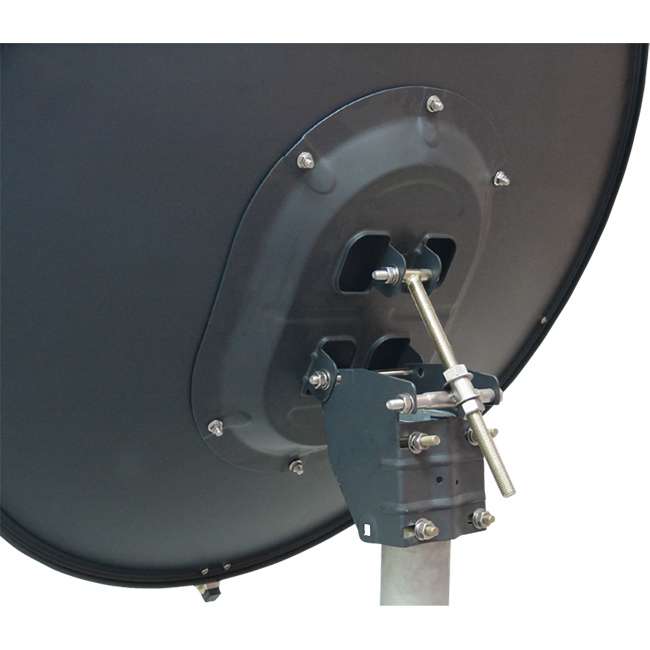

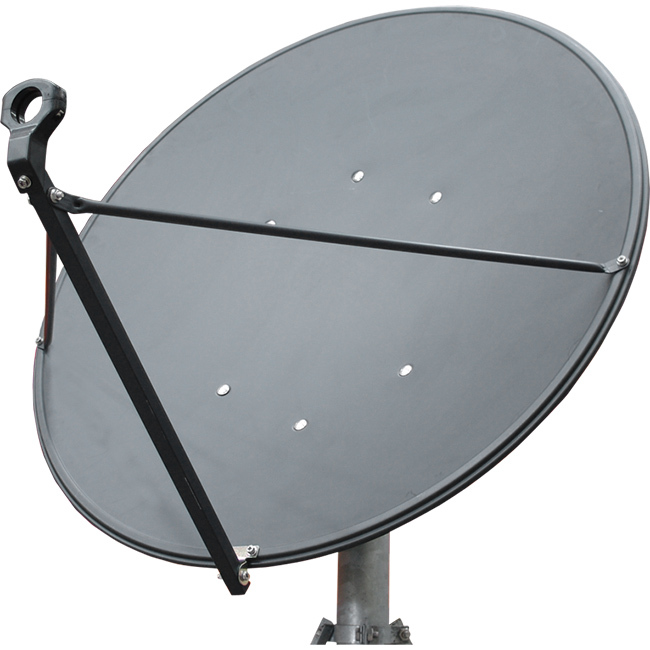

90CM OFFSET SATELLITE DISH

  • Satellite dish with tri arm design.
  • Type: Offset
  • Diameter: 90cm horizontal
  • Material: Galvanised steel with powder coat finish
  • Colour: Dark grey

Best suited for commercial installations. The polyester based powder coating is designed for the exterior environment, salt spray, light, colour retention and is alsoweather resistant.

Specifications

Specifications SDJ90C1
Reflector Type Offset
Offset Angle 24.62
Aperture (Diameter) Horizontal Axis:90 cm Vertical Axis:99cm
Efficiency 75 % Min
Ku-Band Gain @ 12.50 GHz 39.82 dBi
F/D Ratio 1.6
Focus Length 541 mm
Material Galvanised Steel
Finish Polyester Powder Coating
Colour Dark Grey
Mounting Mounting Type Pole, Wall & Ground Mount
Adjustment Type AZ/EL
Material Steel / Galvanised Steel
Finish Polyester Powder Coating
Colour Dark Grey
Elevation 15 - 90 degrees
Azimuth 0 - 360 degrees
Pole Diameter 42 - 60 mm
Environment Ambient Temperature - 40 C ? 60 C
Relative Humidity 0 ? 100%
