AS8TF16/II 8 WAY TAP F-TYPE 16DB

FOXTEL APP F30740 COUPLER

Code: 00845514

0.1260 kg
9333095024295
EACH
In Stock
TRADE ALERT!
$34.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

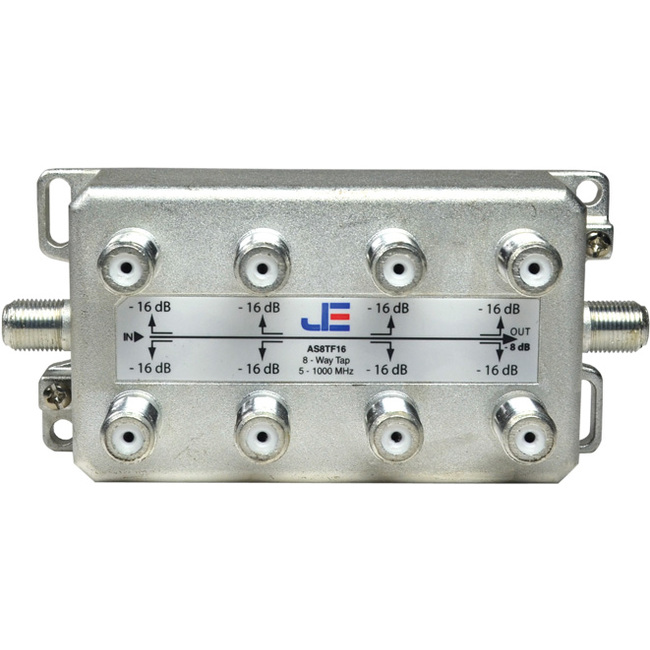

AS8TF16 8 WAY F TYPE TAP 16DB 5 - 1000MHz FOXTEL APPROVED F30740

Features:

  • High tap to tap isolaton
  • Suitable for CATV & SMATV
  • Zinc Die Cast, Bright Tin Finish and Solder Shield Bottom Plate.
  • Screening factor: Class A
  • Input power pass: 30VDC 1A
  • All pors F connector 75 ohm

Specs:

Frequency
Insertion Loss (IN-OUT) dB
Tap Loss (IN-TAP) dB
Isolation (TAP-TAP) dB
Isolation (OUT-TAP) dB
Return Loss(OUT) dB
5 - 40 MHz
=9.0
16 1.5
=38.0
=26.0
=16.0
40 - 470 MHz
=9.5
16 1.5
=40.0
=25.0
=16.0
470 - 862 MHz
=10.0
16 2.0
=38.0
=23.0
=16.0
862 - 1000 MHz
=11.0
16 2.0
=34.0
=21.0
=16.0

Mechanical Specifications
Impedance In/Out, Ohm
75
CE Compliance
Class A
Temperature Range
Operating: -20°C to 60°C, Storage: -40°C to 70°C
In/Out Connector
F Female
Dust & Water Ingress Protection Rating
IP20 Minimum
Housing
Zinc Die Cast, Bright Tin Finish and Solder Shield Bottom Plate.
Grounding Screws
PM 3 6 A3 nickel-plated 2 pieces
Wall Mounting Screws
PA 4 18 A3 nickel-plated 2 pieces
Grounding Terminal Connection
Yes
