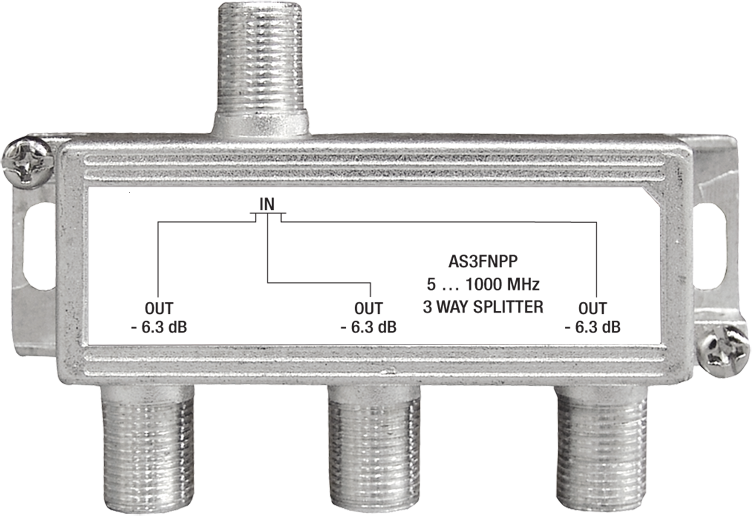

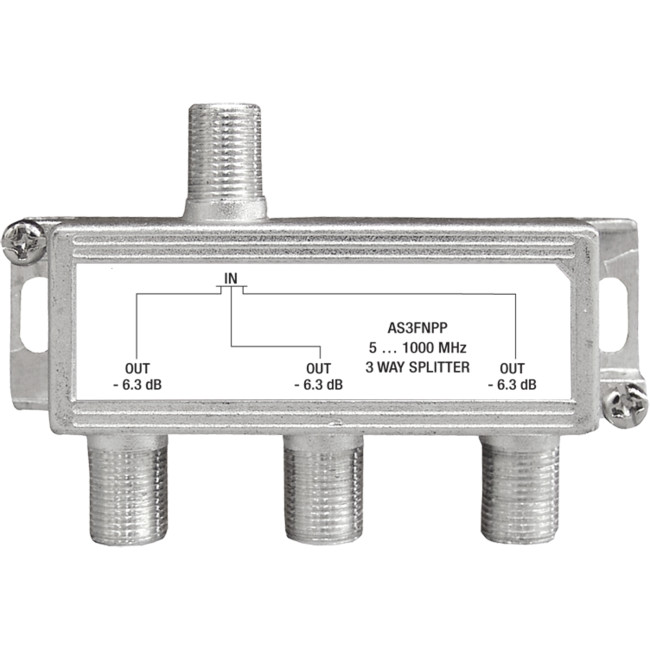

AS3FNPP 3 WAY F-TYPE SPLITTER

FOXTEL APPROVED F30224

Code: 00845503

0.0580 kg
EACH
In Stock
TRADE ALERT!
$16.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

AS3FG2 3 WAY F TYPE SPLITTER 5 - 1000MHz FOXTEL APPROVEDF30224

Features:

  • Superior intermodulation distortion and second harmonic performance
  • Excellent return loss and port-to-port isolation in the return band
  • Patented DSM seizure technology provides increased spring retention for better surface contact (patent#6450836)
  • Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and prevention of common path distortion
  • 6 kV surge withstand, guaranteed second orderharmonics performance after 5 surges to each port of 6 kV (per IEEE.C62.41.1991 Category A3)
  • Tin-plated back plate provides minimum -110 dB shielding effectiveness and superior defence against long-term corrosion factors
  • -60 dBmV spurious signals and 2nd harmonics with a 55 dBmV input carrier
  • Weather-sealed “F” ports
  • Machine threaded, flat “F” ports

Specs:

  • Nominal Impedance 75 Ohms
  • Flatness (Tap & Out) 0.5 dB
  • RFI -110 dB
  • Spurious Signals Including 2nd Harmonics -60 dBmV measured with a 55 dBmV return input carrier
  • (-45 dBmV, after 5 surges of 6 kV on each port measured with a 55 dBmV return input carrier)
  • Blocking Capacitors All ports
  • Surge Withstand IEEE C62.41-1991 Category A3 (6000 V, 200 Amp, 0.5 s-100 kHz Ring Wave)
  • Operating Temperature -40 to 60 C (-40 to 140 F)

Frequency Insertion Loss Out-to-Out Isolation Input Return Loss Output Return Loss
5 - 15 MHz 3.4 / 7.0 25 25 23
16 - 42 MHz 3.4 / 6.9 35 31 32
43 - 65 MHz 3.4 / 6.9 35 31 34
66 - 250 MHz 3.4 / 6.9 30 27 26
251 - 450 MHz 3.5 / 7.0 26 25 24
451 - 550 MHz 3.5 / 7.0 24 23 23
551 - 750 MHz 3.7 / 7.2 22 22 22
751 - 860 MHz 3.6 / 7.3 22 22 22
861 - 1002 MHz 3.8 / 7.7 22 21 21
