{tab Overview}

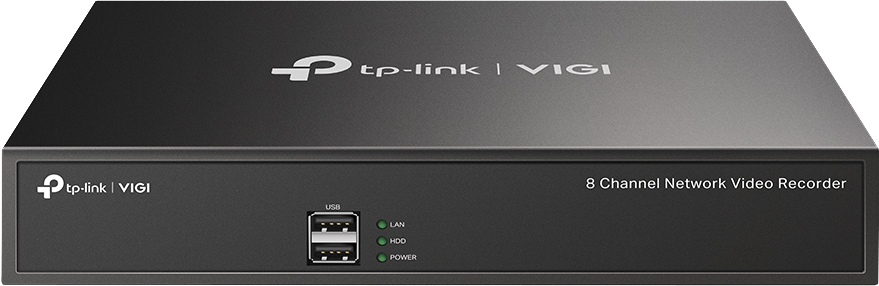

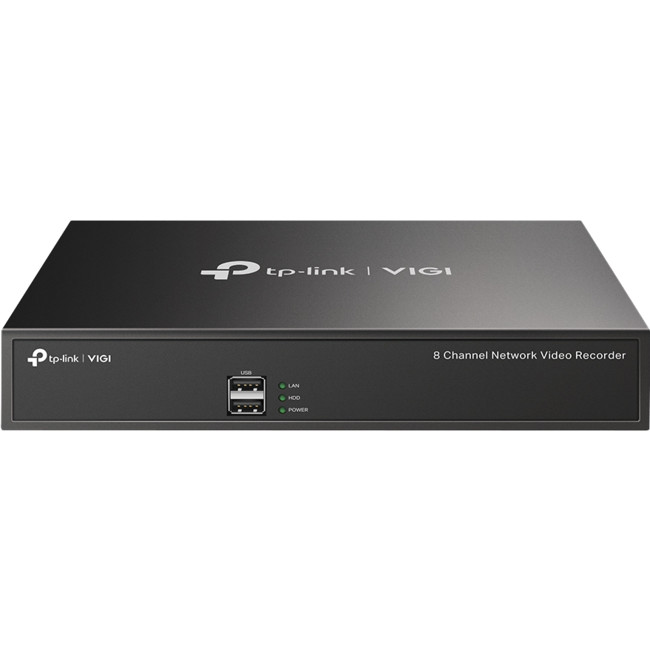

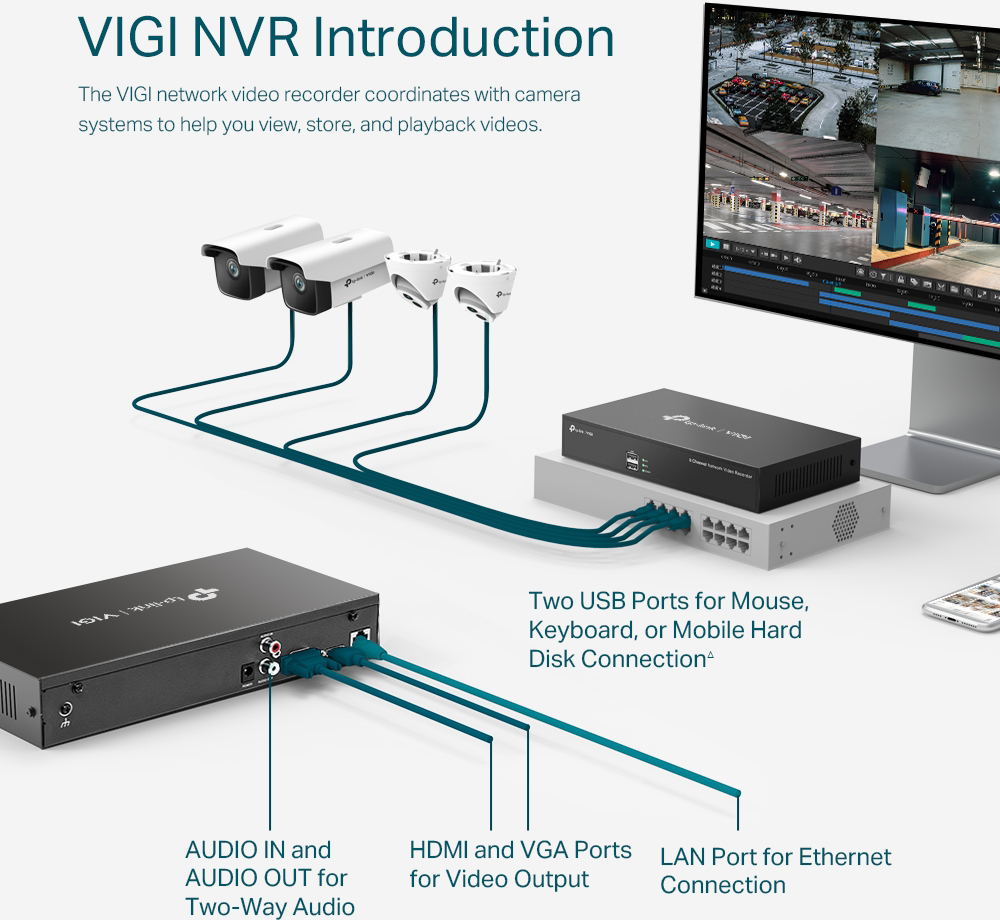

VIGI 8 Channel Network Video Recorder
24/7 Continuous Recording
Security for every hour and every day. Automatically stores up to 10TB of footage from connected cameras to secure your data forquick, convenient access.
8-Channel Real-Time Live View
Every angle, all on one screen. Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.
4-Channel Simultaneous Playback
Reviewing footage is faster than ever. Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Remote Monitoring
Keep an eye on things even when you are on the move. Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
More compression. More savings. Same quality. H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Onvif Ensures Compatibility
No need to check long compatibility lists. Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

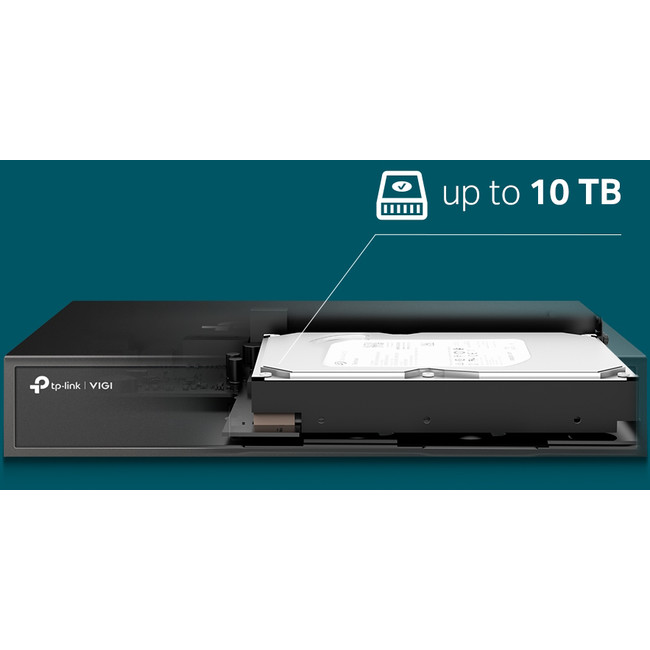

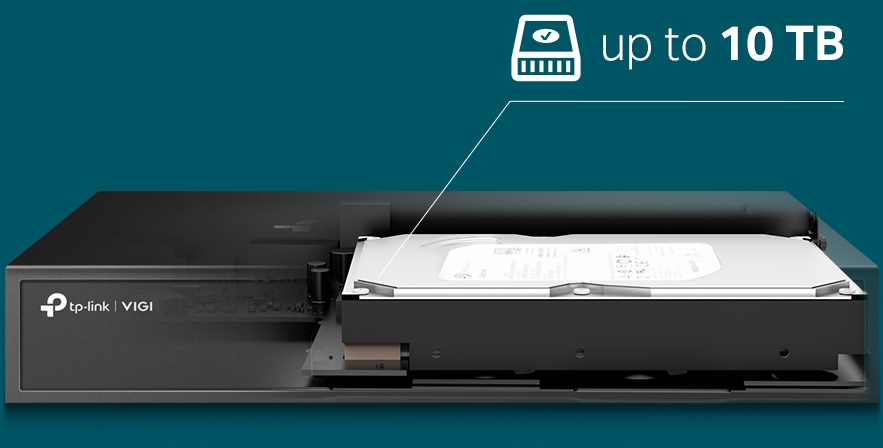

HDD (up to 10 TB)
Up to 720 days of footage stored locally. Stores up to 10TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.
Two-Way Audio
Greet your visitors before they enter. With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
80Mbps Video Access Bandwidth
More bandwidth for more cameras. High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

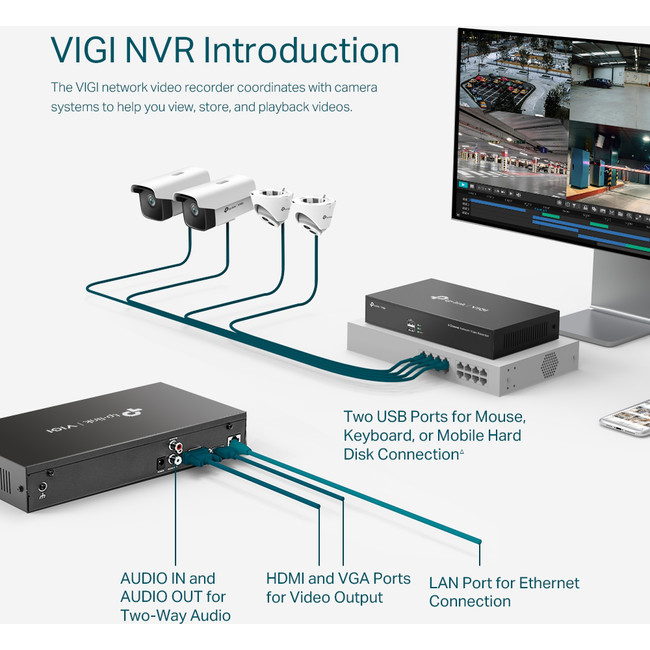

Manage Everything With One
Run your business with peace of mind. The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build. Whenever, wherever. The outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
{tab Specifications}
Specifications
| NETWORK | Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
|---|
| Incoming Bandwith | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| GENERAL | Operating Temperature | −10°C~55°C |
|---|
| Chassis | 1U Chassis |
| Dimensions (H×W×D) | 246.2mm × 148.2mm × 42.6mm |
| Weight | 578.5g |
| External Power Supply | 12V DC, no more than 18W |
| Power Consumption | - 4.25W (without disk)
- 13.10W (with disk)
|
| VIDEO/IMAGE | Video Input | 8-Channel IP Video Input, up to 5MP Resolution |
|---|
| Video Output | Recording Resolution- 5MP / 4MP / 3MP
- 1080p / 720p
- UXGA / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI / VGA
Output Resolution- 1920×1080 / 60Hz
- 1280×1024 / 60Hz
- 1280×720 / 60Hz
- 1680×1050 / 60Hz
- 1440×900 / 60Hz
|
| DECODING | Decoding Format | H.265+/H.265/ H.264+/H.264 |
|---|
| Live View/Playback Resolution | - 5MP / 4MP / 3MP
- 1080p / 720p
- UXGA / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
|
| Synchronous Playback | 4 Channel |
| Capability | - 1-ch @ 5MP
- 2-ch @ 2MP
- 4-ch @ 720p
|
| HARD DISK | SATA | 1 × SATA Interface |
|---|
| Capacity | Up to 10TB (HDD not included) |

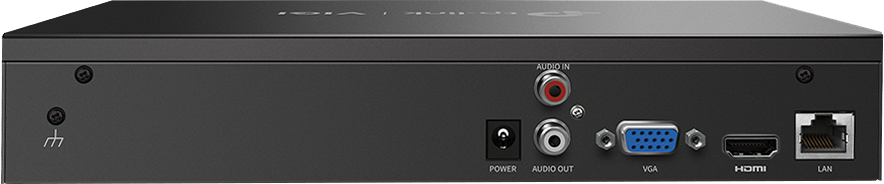

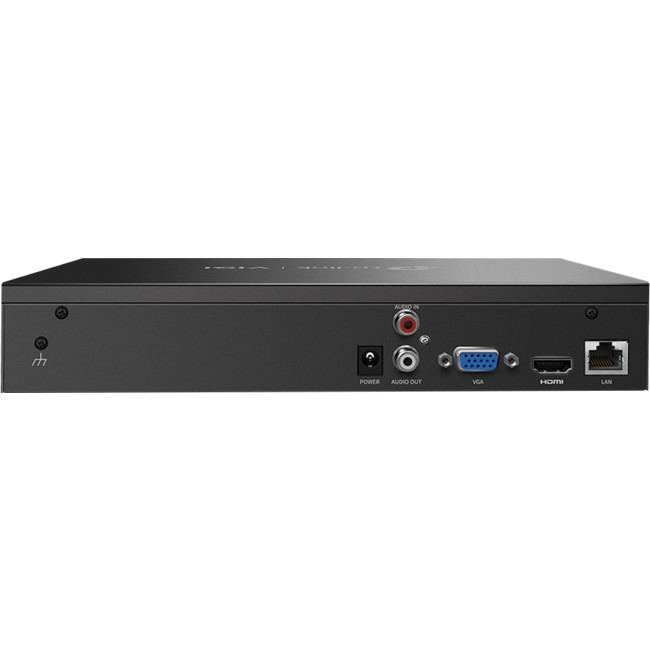

| INTERFACES | Network Interface | 1 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|---|
| USB Interface | 2 × USB 2.0 |
