PFW6800 55"-80" 100KG FLAT WALL MOUNT

VESA 800X400

Code: 43130761

EACH
Special
Buy-In
TRADE ALERT!
$289 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

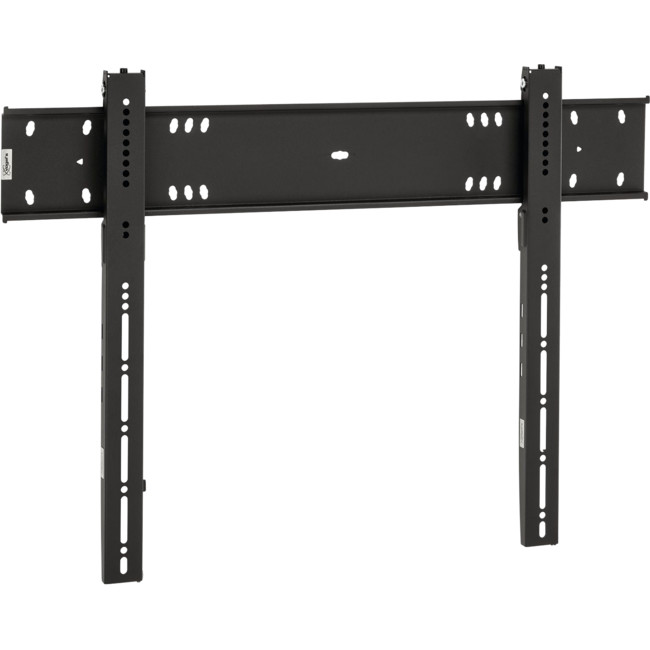

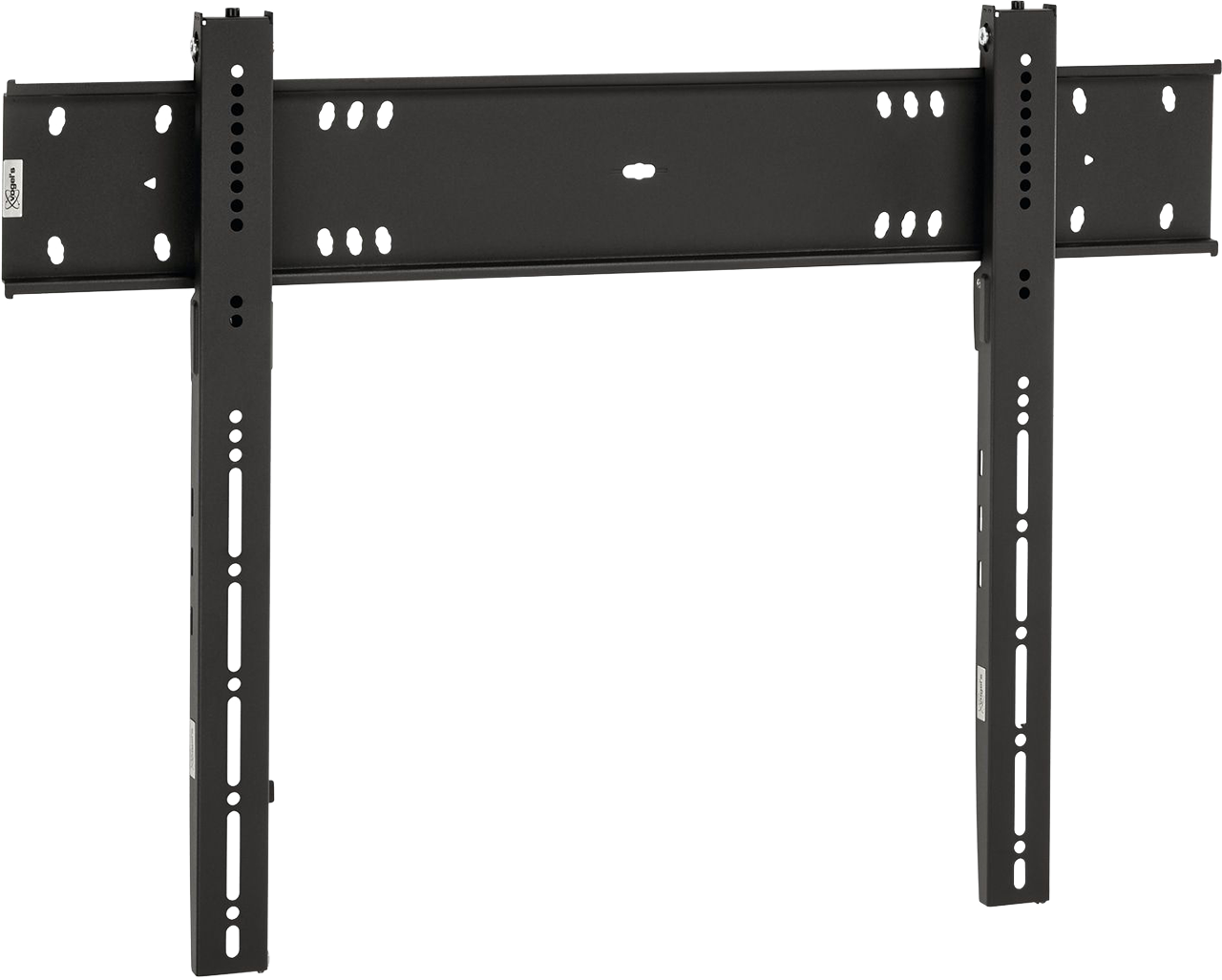

Vogel's PFW 6800 Display wall mount fixed

The PFW 6800 is a sturdy and at the same time elegant fixed wall mount.

It features an aesthetically integrated lock whilst maintaining a depth of only 35 mm.

The mount can hold displays from 55 to 80 inch, weighing up to 100 kg



Key Features

  • Easy levelling and installation
  • For the heaviest displays
  • Self-centering display bolts

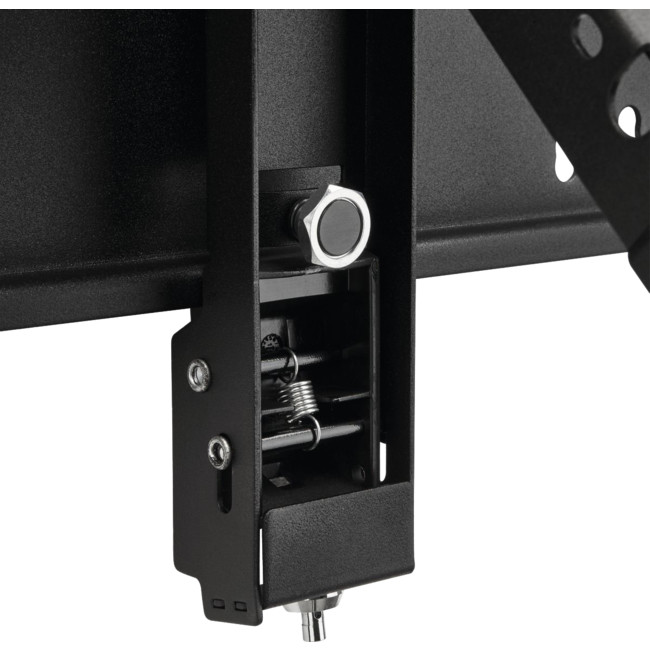

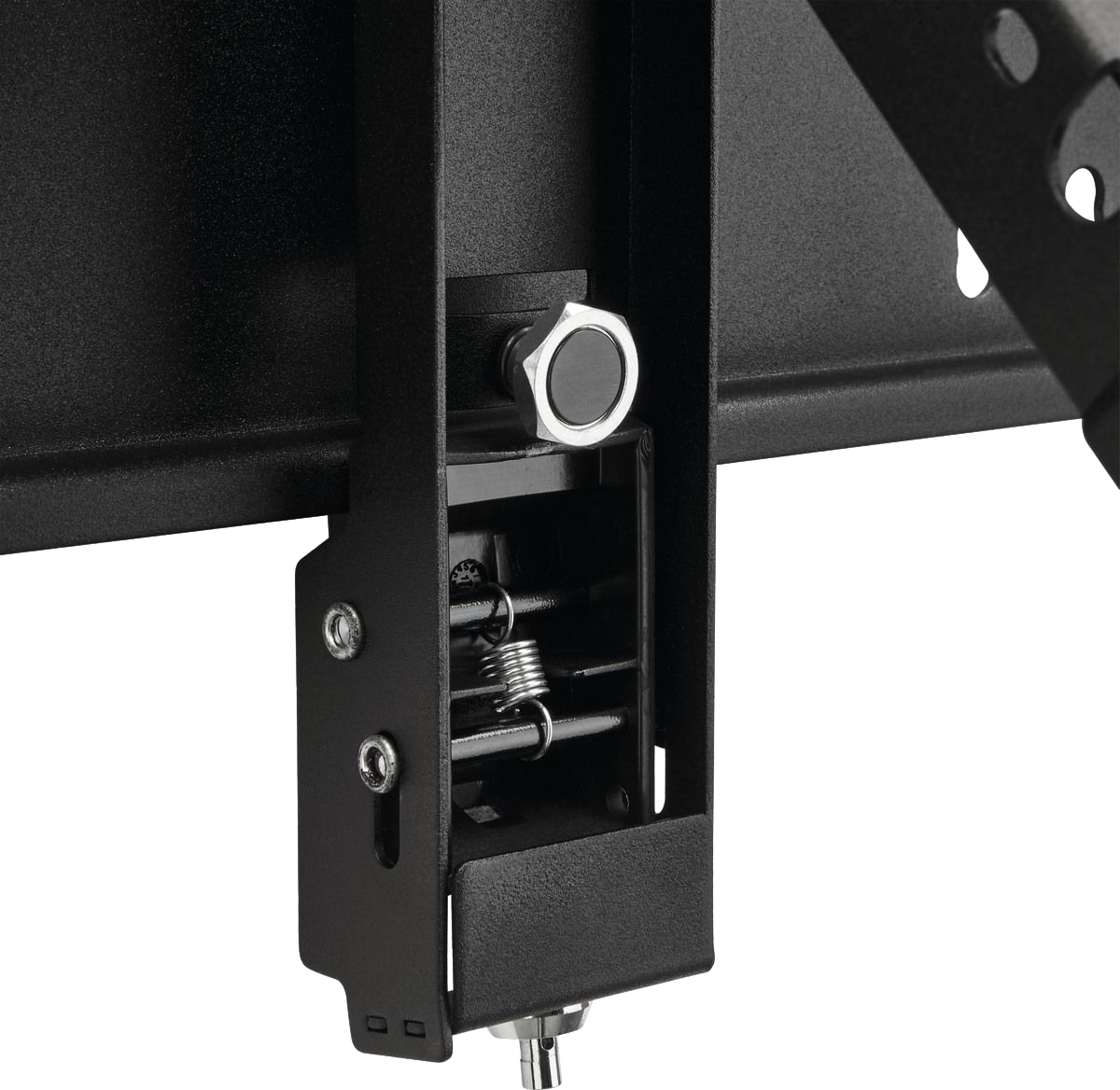

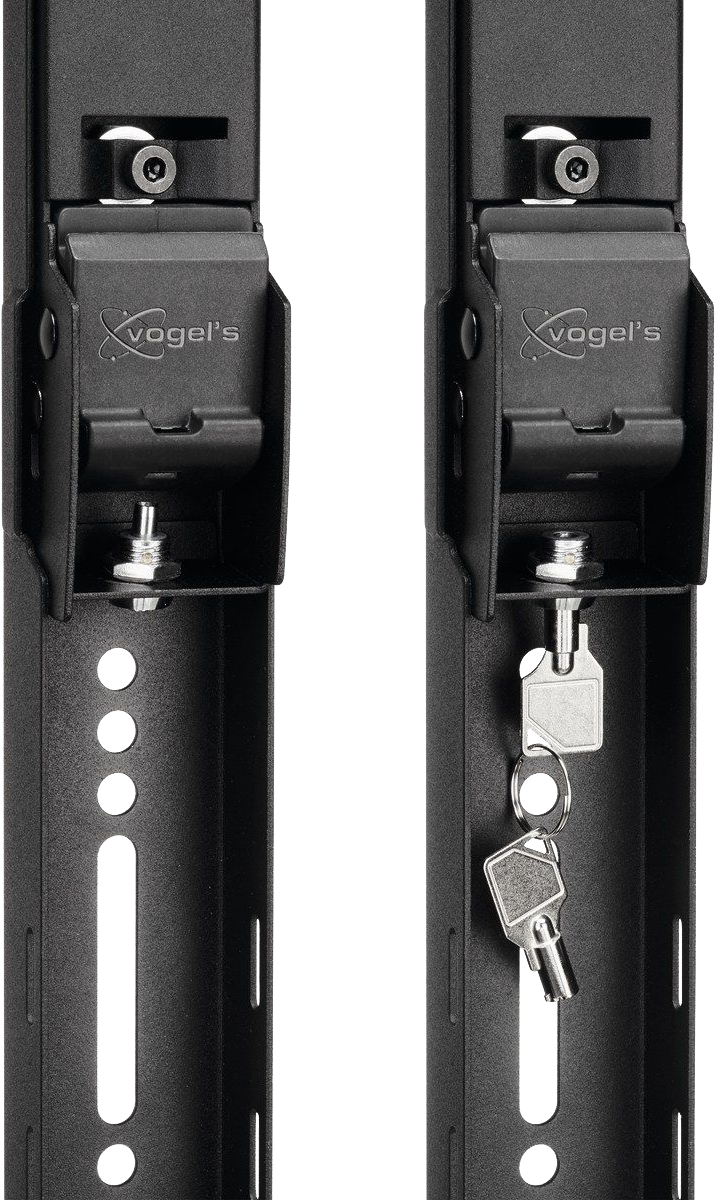

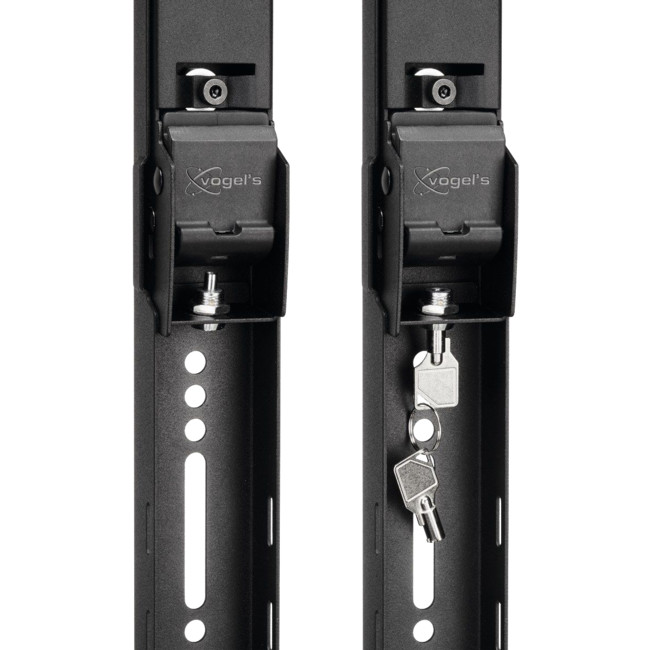

  • Integrated lock
  • Locked service position



Specifications

PFW6800 Wall mount

EAN single box 8712285334160
Series PFW 6000 Series
Awards AV Technology - Best of Show at ISE 2017
Product Group Display mount fixed
Guarantee 5 Years
Colour Black
Max. weight load (kg) 100
Min. screen size (inch) 65
Max. screen size (inch) 80
Orientation Landscape
T V certified Yes
Lock options Lock included / integrated

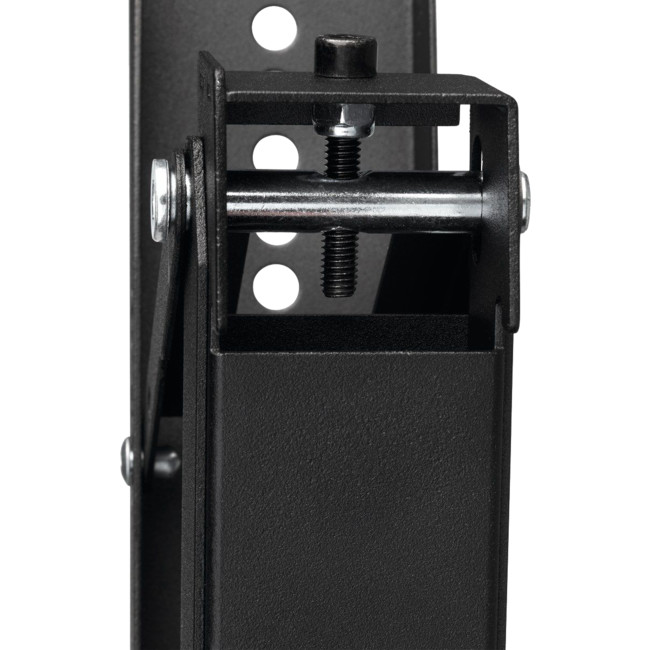

Levelling function Post-installation horizontal levelling

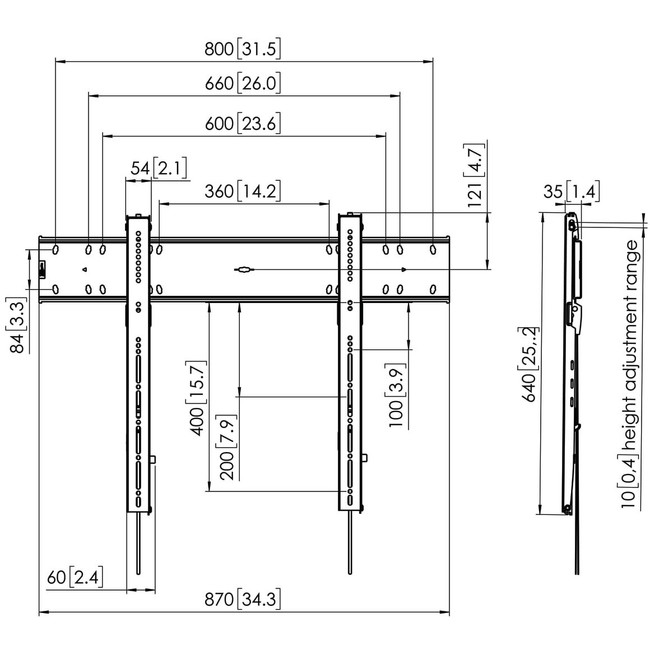

Min. horizontal hole pattern (mm) 75
Max. horizontal hole pattern (mm) 800
Min. vertical hole pattern (mm) 75
Max. vertical hole pattern (mm) 400
Min. distance to the wall (mm) 35

Service position

 Yes
Hole pattern (VESA)
  • 75 mm x 75 mm
  • 100 mm x 100 mm
  • 100 mm x 200 mm
  • 200 mm x 100 mm
  • 200 mm x 200 mm
  • 300 mm x 200 mm
  • 300 mm x 300 mm
  • 400 mm x 200 mm
  • 400 mm x 300 mm
  • 400 mm x 400 mm
  • 500 mm x 200 mm
  • 500 mm x 300 mm
  • 500 mm x 400 mm
  • 600 mm x 200 mm
  • 600 mm x 300 mm
  • 600 mm x 400 mm
  • 700 mm x 400 mm
  • 800 mm x 400 mm










PFW 6000 series Installation Video

Video not loading? Watch it over at YouTube!
