WP10-W REMOTE SOURCE AND VOLUME CONTROL

8 PROGRAMMABLE BUTTONS - SUITS ZONEMIX SYSTEM

Code: 39893772

9323383020351
EACH
Special
Buy-In
TRADE ALERT!
$250 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

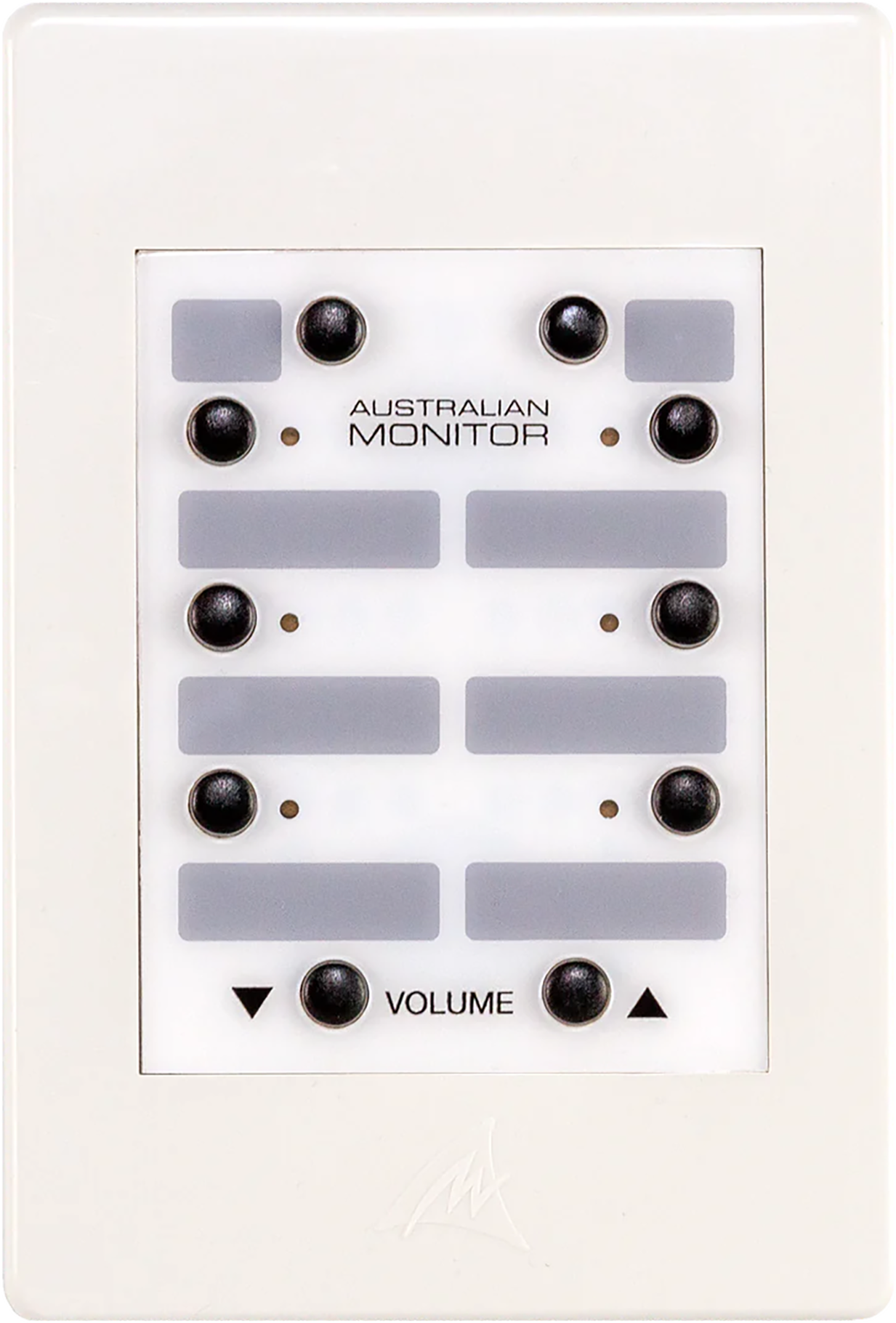

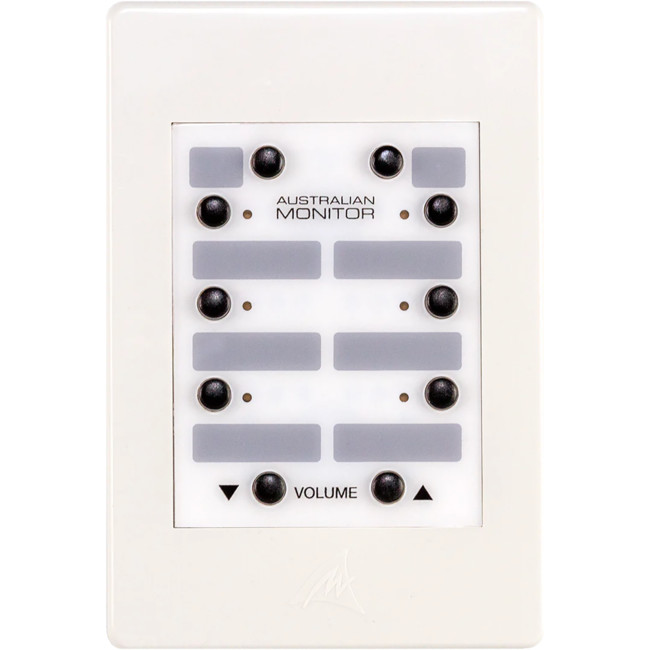

WP10-W White remote source and volume control

The WP10 wall panel is a 10 button controller featuring 8 programmable buttons, a dedicated volume control and 3 rear general purpose outputs for use with the ZONEMIX system.

Each button can be configured in software to provide a wide range of actions including source selection, volume control, muting, preset activation and more.

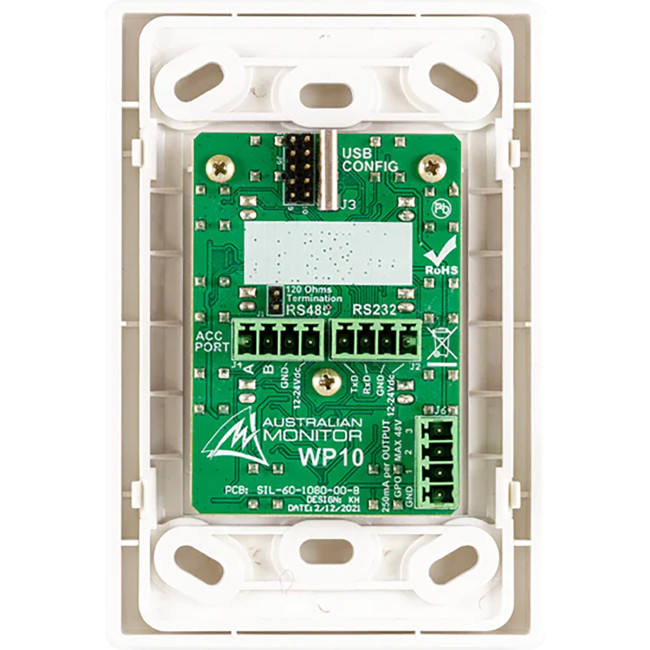

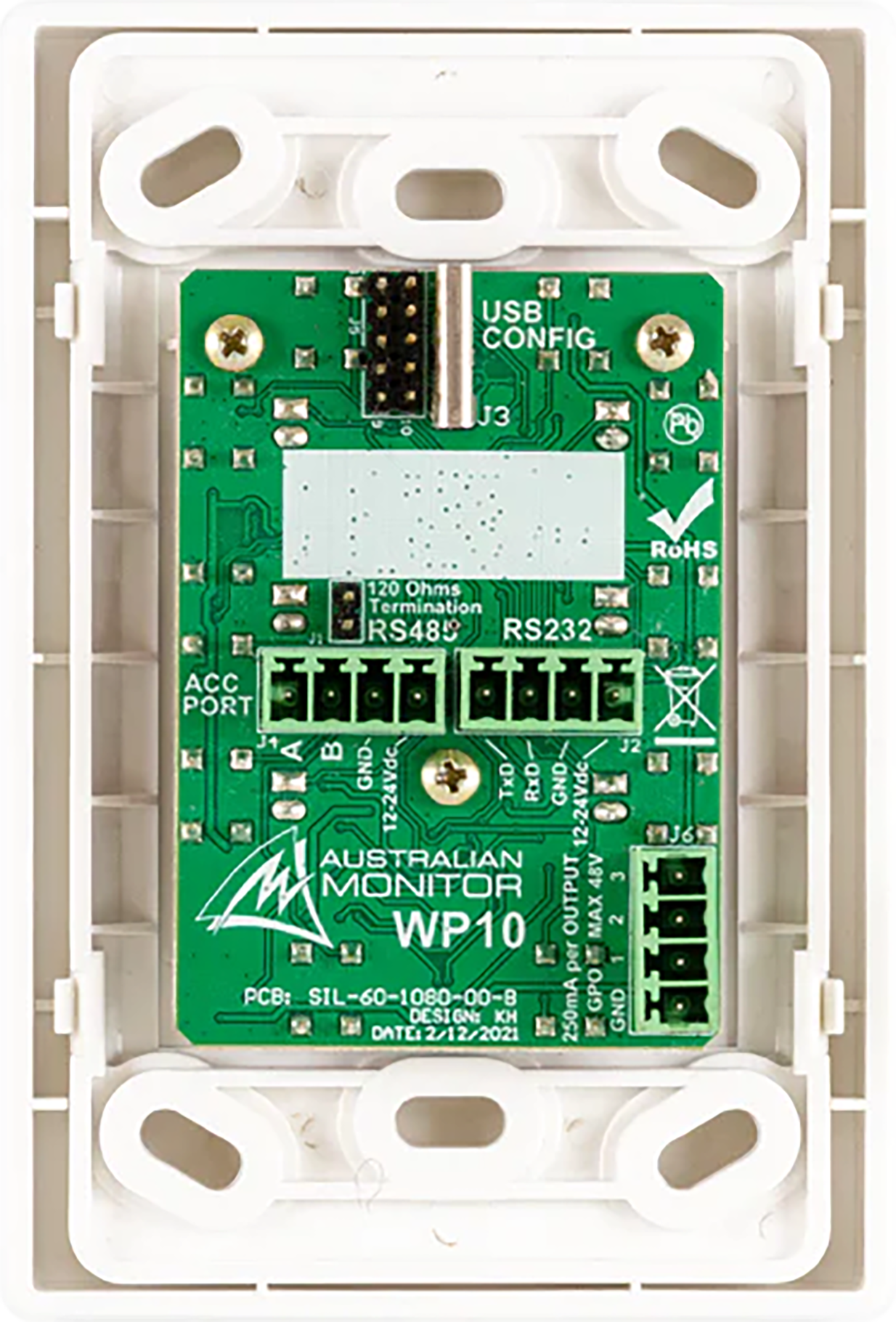

Three rear panel general purpose outputs can be connected to external systems requiring logic control, e.g. a projector screen.

The WP10 has LED button status indicators, ample button label space and is connected to the ZONEMIX system via Cat5 cabling.

The wall panel can also be optionally colour customised using HPM®VIVO™ cover plates to create a unique look for each installation.

Key Features

  • 8 programmable buttons and dedicated volume control
  • 3 rear general purpose outputs
  • Euroblock cable termination
  • Customisable colour scheme using HPM®VIVO™ cover plates
  • Also available in Black, WP10-B

Specifications

Zones N/A Paging Stations Connected N/A
Program Inputs N/A Paging Station P/N N/A
Local Inputs N/A Remote Source Control N/A
Tones N/A Mounting Wall
Input Voltage 24VDC Warranty 5 years
Product Dimensions
(W x D x H)
Shipping Dimensions
(W x D x H)
156mm x 132mm x 101mm
Net Weight Shipping Weight 0.2 Kg
GTIN EAN 9323383020351
