WT5800HTPDF01AS 64CH HANDHELD VOCAL MIC KIT

1 X WT5800 & 1 X WM5270 - TOA

Code: 28732916

1.83 kg
EACH
1 IN
STOCK
TRADE ALERT!
$1569 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

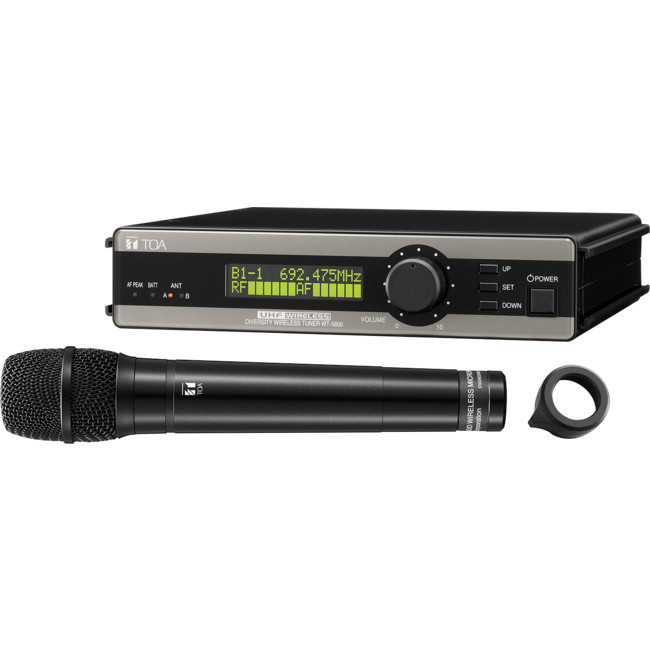

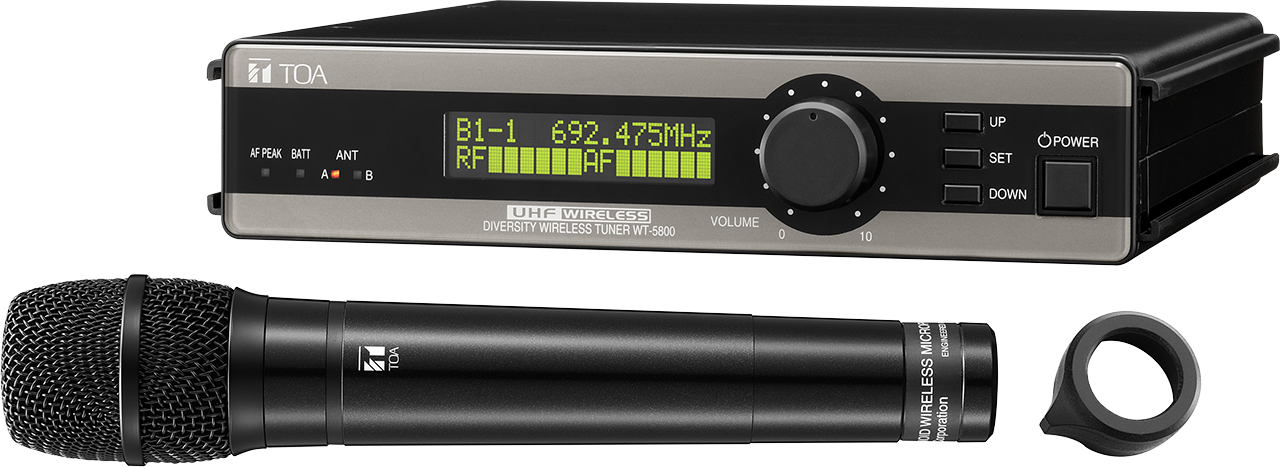

Toa WT5800HTPD-F01AS 64 Channel Hand Held Kit with Dynamic Vocal Microphone

The Toa WT5800HTPD Kit comprises

  • 1 x WT5800-F01AS True Diversity receiver
  • 1 x WM-5270- F01AS Dynamic Vocal Microphone

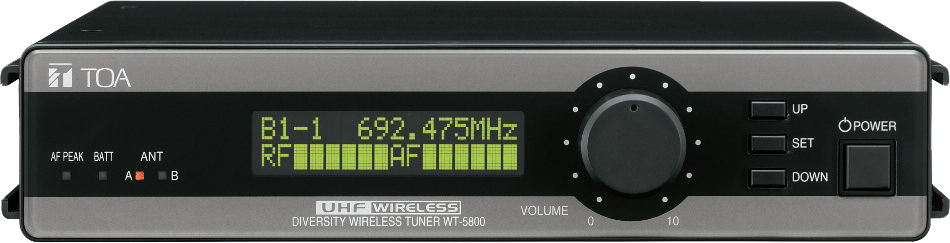

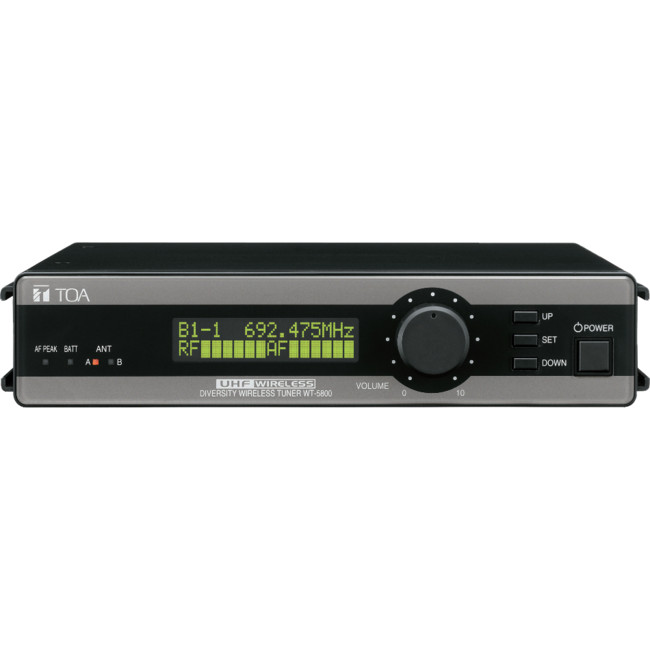

TOA - WT5800 UHF Wireless Tuner

The wireless tuner WT-5800 is a PLL-synthesizer controlled double superheterodyne true diversity tuner to beused in UHF wireless systems.

It employs a compander noise reduction circuit to minimize the influence of the ambient RF noise.

  • True Diversity F01 Band UHF (636-666MHz) PLL tuner
  • 2 Line LED display and environment scan
  • 64 selectable channels
  • Up to 150m range in open space (line of sight)
  • Rack Mountable with optional rack mount brackets (MBWT3 or MBWT4)
  • Antenna loop, allowing connecting two other receivers(three in total)
  • Optional YW4500 wall mount antenna available, directly powered from the tuner



TOA - WM5270 Microphone

64 Channel Dynamic Vocal Microphone with Metal Body

  • **not compatible with battery chargers**



Specification

Power Source AC mains (supplied AC adapter must be used)
Power Consumption 250 mA (12 V DC)
Receiving Frequency 576 - 865 MHz (*2), UHF
Channel Selectable 64 selectable frequencies
Receiving System Double super-heterodyne
Diversity System Space diversity (true diversity)

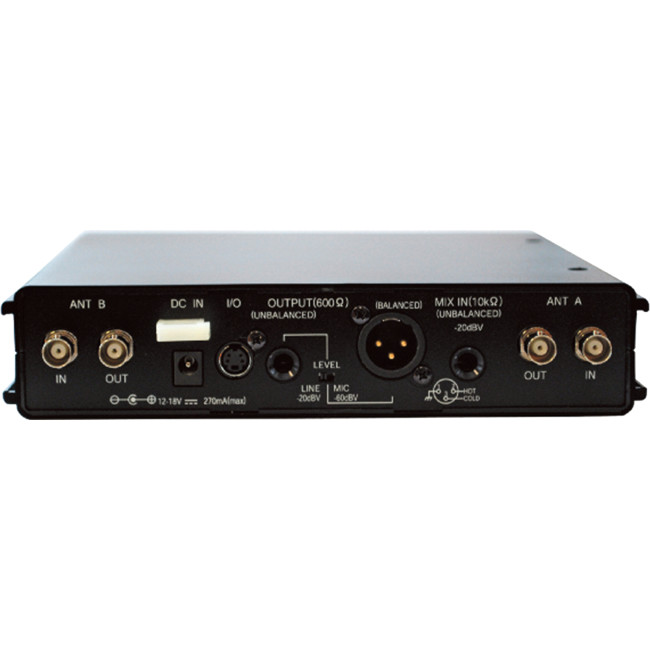

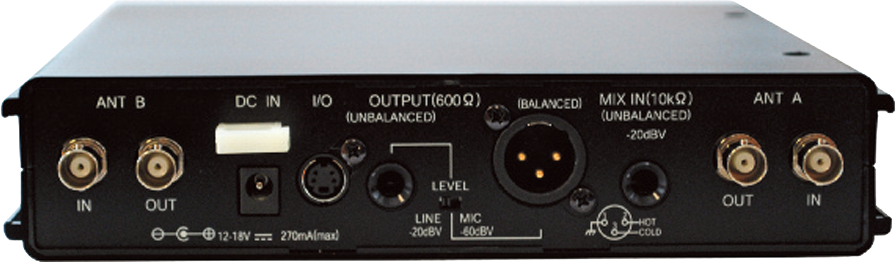

Mixing Output MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1)(LINE), 600 O
phone jack (unbalanced), 600 O XLR-3-32 type connector(balanced)
Mixing Input -20 dB (*1), 10 kO, unbalanced, phone jack
Antenna Input 75 O, BNC (phantom powering for antenna), 9 V DC, 30mA (max)
Antenna Output 75 O, BNC (Gain 0 dB)
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBµV input, 40 kHz deviation)
Squelch Sensitivity 16 - 40 dBµV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Tone Frequency 32.768 kHz
Indicator Audio (6 step), RF (6 step), ANT A/B, Audio (peak), Battery alarm
Channel Check Usable frequencies scanning
Signal to Noise Ratio 110 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1 % or less (typical)
Frequency Response 100 Hz - 15 kHz, ±3 dB
Operating Temperature -10 ? to 50 ? (14 ?F to 122 ?F)
Operating Humidity 30 % to 85 %RH
Finish Resin, black
Dimensions 210 (W) × 44 (H) × 205.1 (D) mm (8.27" × 1.73" × 8.07")
Weight 700 g (1.54 lb)
Accessory AC adapter (*3)?1, Whip antenna?2, Rubber foot?4
Option Mounting bracket kit: MB-WT3 (for rack mounting one WT-5800 unit)
MB-WT4 (for rack mounting two WT-5800 units)





Version Receiving Frequency
F01 636 - 666 MHz, UHF
H01 576 - 606 MHz, UHF
