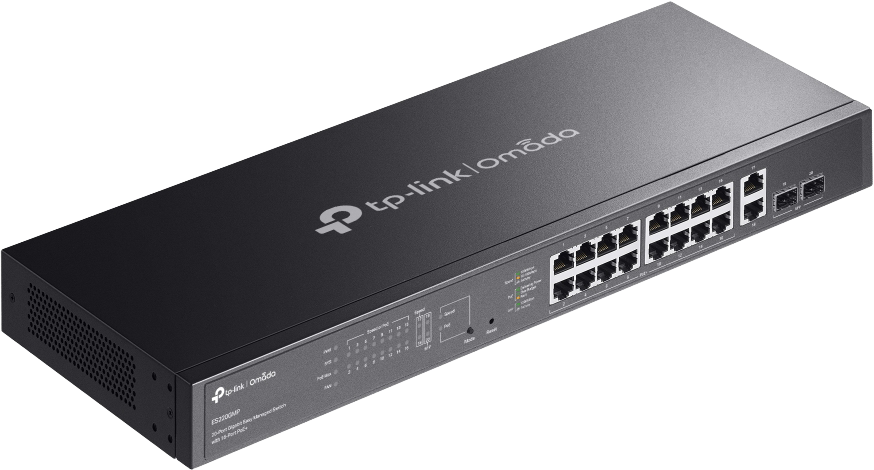

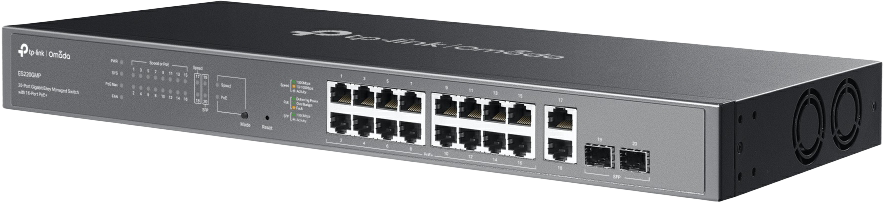

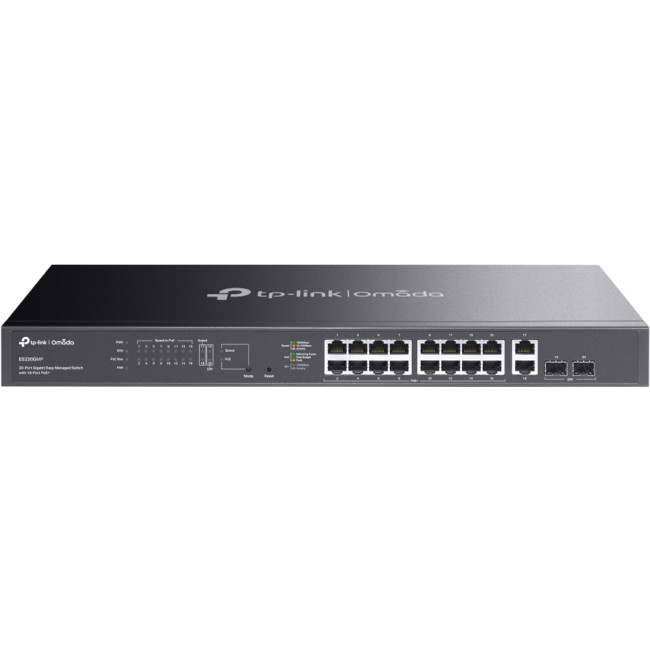

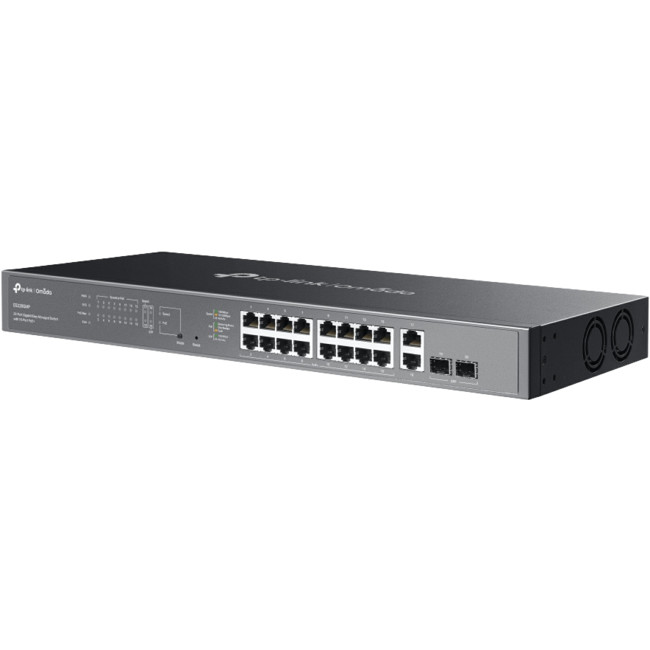

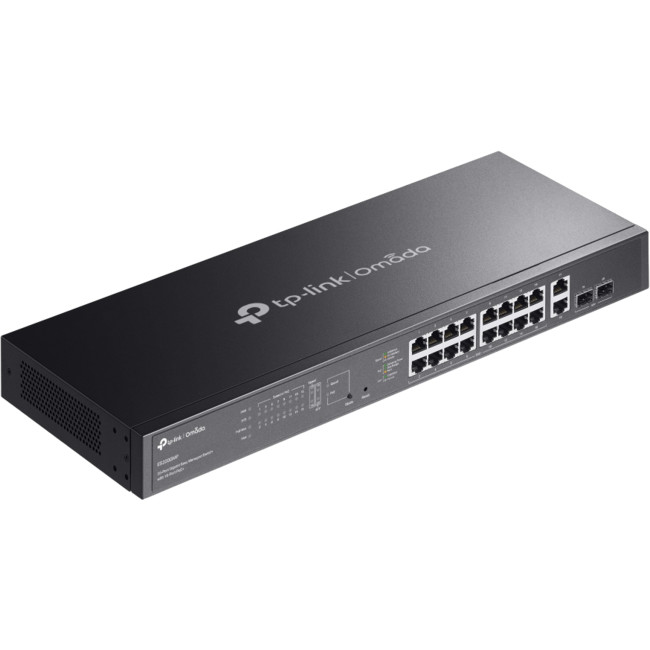

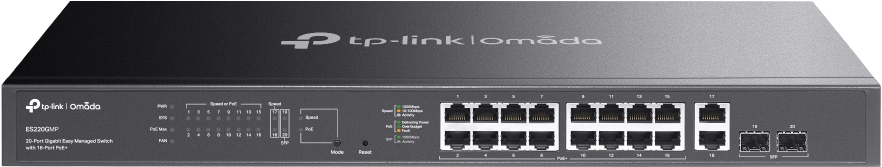

Name: ES220GMP 20 PORT GIGA EASY MANAGED POE SWITCH OMADA SDN CLOUD MANAGEMENT
Brand: TP-LINK
SKU: 09052416
Price: 299 AUD
Availability: InStock

OMADA SDN CLOUD MANAGEMENT

Code: 09052416

3.12 kg

8885020625943

EACH

Call for Availability!

$299 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE

16× Gigabit 802.3af/at-compliant PoE RJ45 ports
2× Gigabit RJ45 port, 2× Gigabit SFP port
250W Power Budget, with up to 30Wfor each PoE port*
Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app
Up to 250m PoE**, QoS?, PoE Auto Recovery , and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

HARDWARE FEATURES
Interface	• 16× 10/100/1000 Mbps PoE RJ45 Ports (support 802.3af PoE and 802.3at PoE ) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	2
Installation	Rackmountable
Physical Security Lock	v
Power Supply	100–240V AC, 50/60Hz
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE compliant • PoE Ports: 16 ports • PoE Budget: 250W available for all PoE ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection	±6kV

PERFORMANCE
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES220GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide
Environment	• Operating Temperature: -5°C~50°C (23°F~122°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
