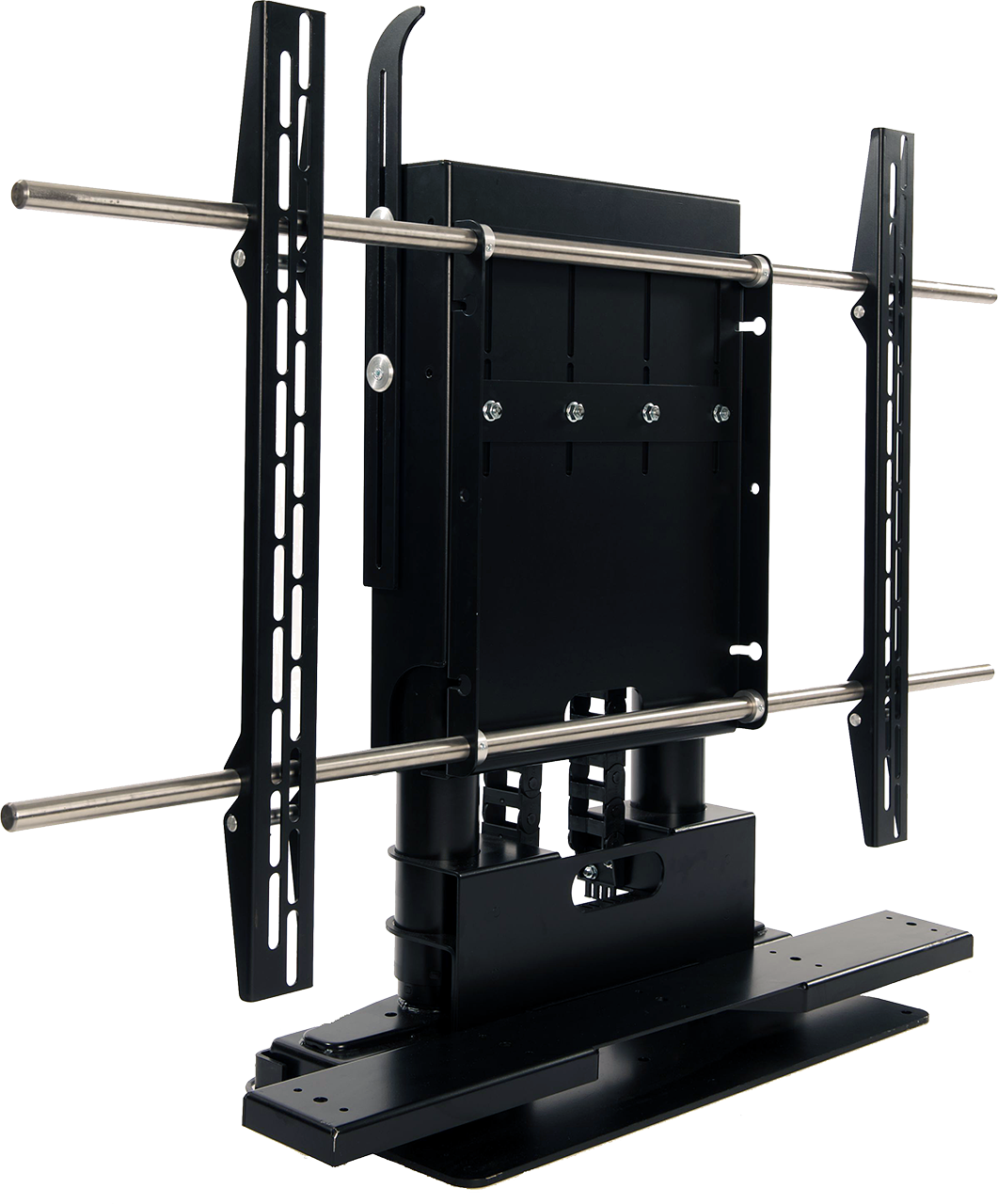

The AL965 is a TV Actuator Lift Mechanism from Future Automation.
The near silent motor system, combined with the most height efficient design on the market makes for a valuable addition to our range.
A push up lid and the limitless width design ensure simple and quick installation and ease of fitting.
TECHNICAL SPECIFICATION
Product Code
AL965
Control Box Dimensions
150 x 210 x 50mm (5.9 x 8.26 x 1.96")
Control Options
RS232 / Contact Closure / IR (RF Version Available)
Decibel Rating
50dB
Finish (Custom Available)
Satin Black Paint - RAL 9005
Lid Types Available
Standard - Push Flap Optional - Fixed Lid
Max Screen Height
930mm (36.51")
Max Weight
40kg (88lbs)
Movement Type
Motorised
Output Power Supply
Yes(12V)
Power Consumption
Max 200W
Power Consumption (Standby)
3W
Power Supply
240V or 110V
Screen Sizes (approx)
50-65" (approx)
Shipping Dimensions
40 x 96 x 100cm (15.74 x 37.79 x 39.37")
Shipping Weight
