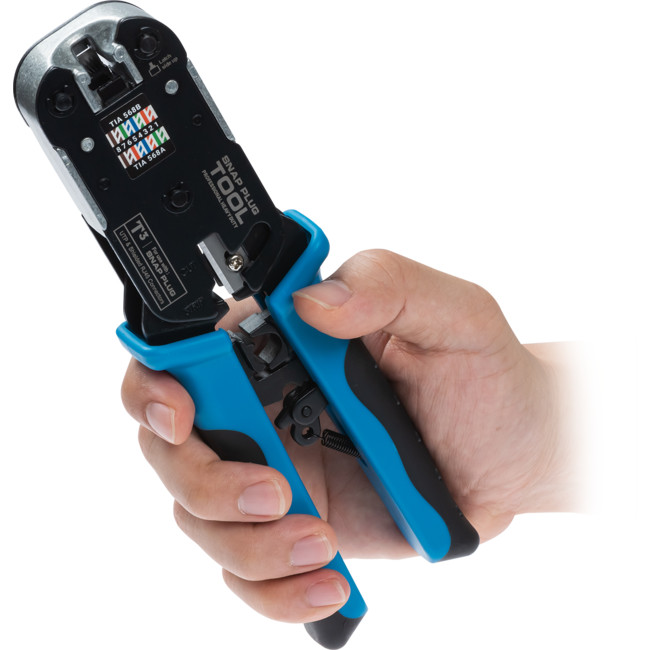

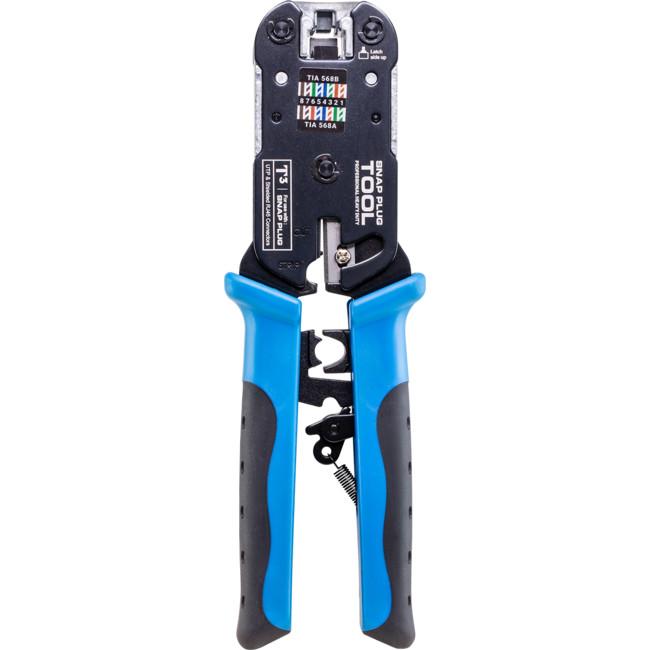

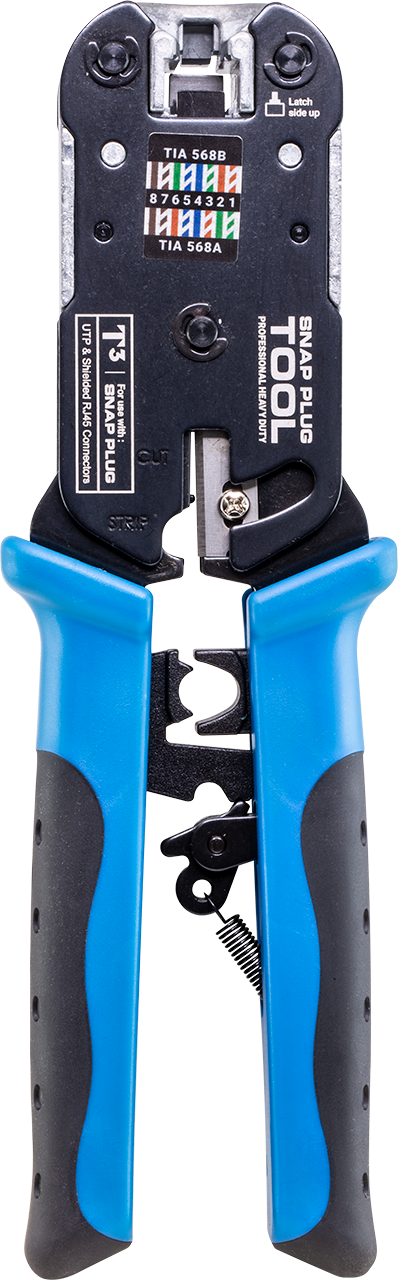

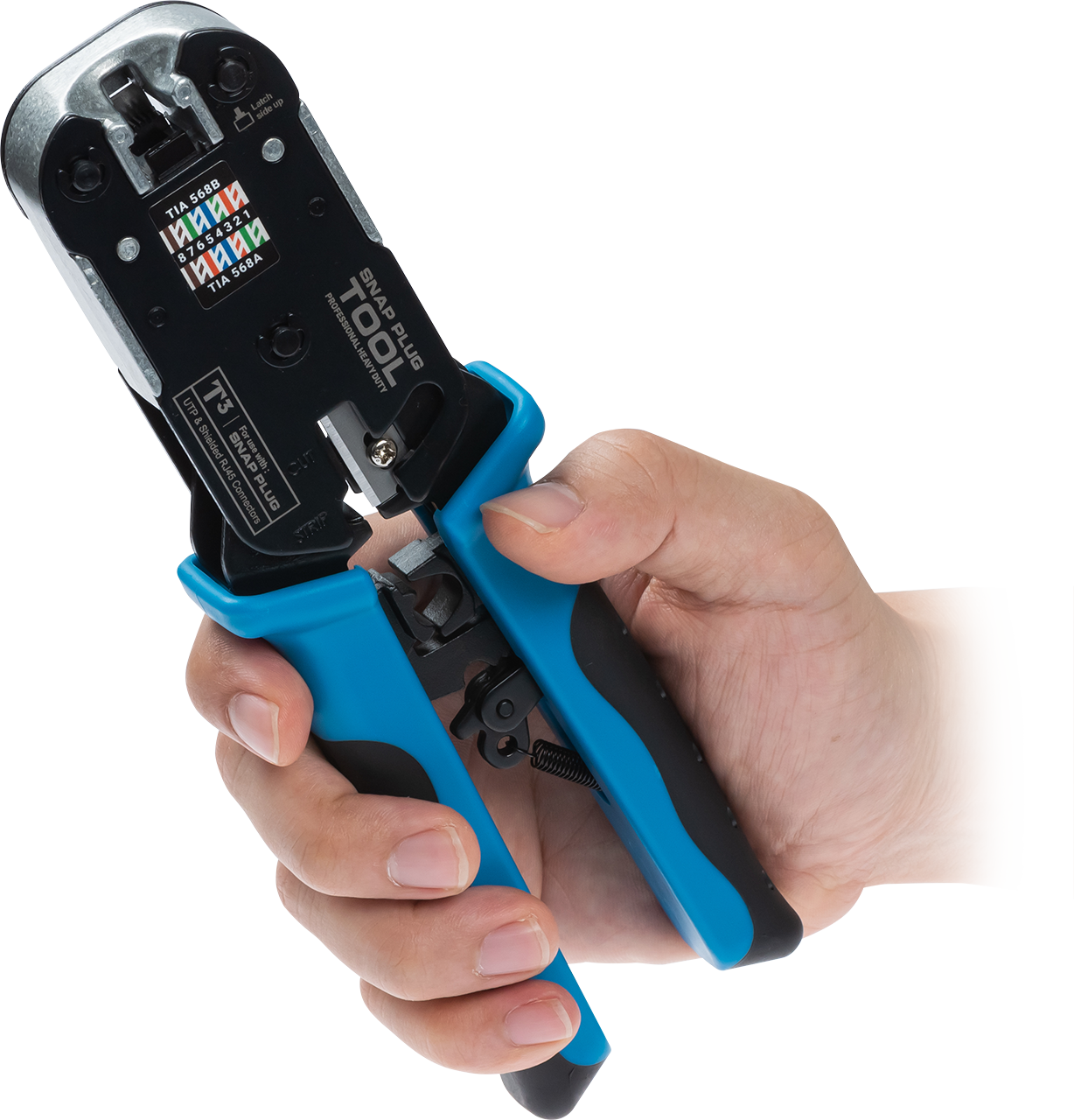

T10710EX RJ45 SNAP PLUG CRIMP TOOL

{tab Features}

PROFESSIONAL HEAVY DUTY SNAP PLUG CRIMPING TOOL

This tool is designed for use with SNAP PLUG Pass-ThroughModular Plugs. Crimp and trim in one easy step. Good for professional installation that requires high performance. While crimping, this tool will crimp and trim at the same time, increase efficiency at work, and reduce unnecessary crimping errors. It's a tool that could meet multiple needs for professional use and achieve the best termination in every single crimp.

The T10710EX is the upgrade model of T10710, two features are added:

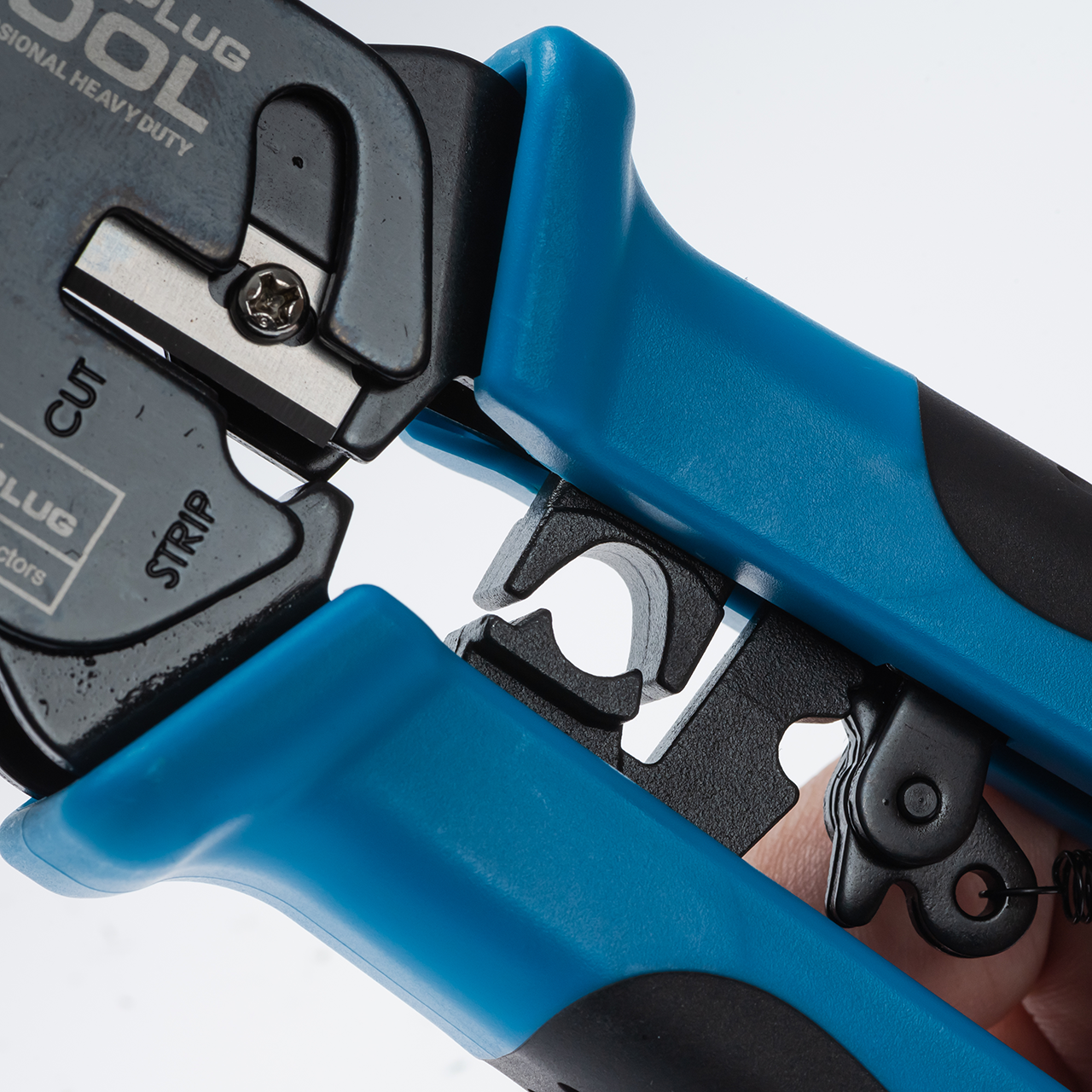

• External ground crimping nest (added on the inside of the handle)

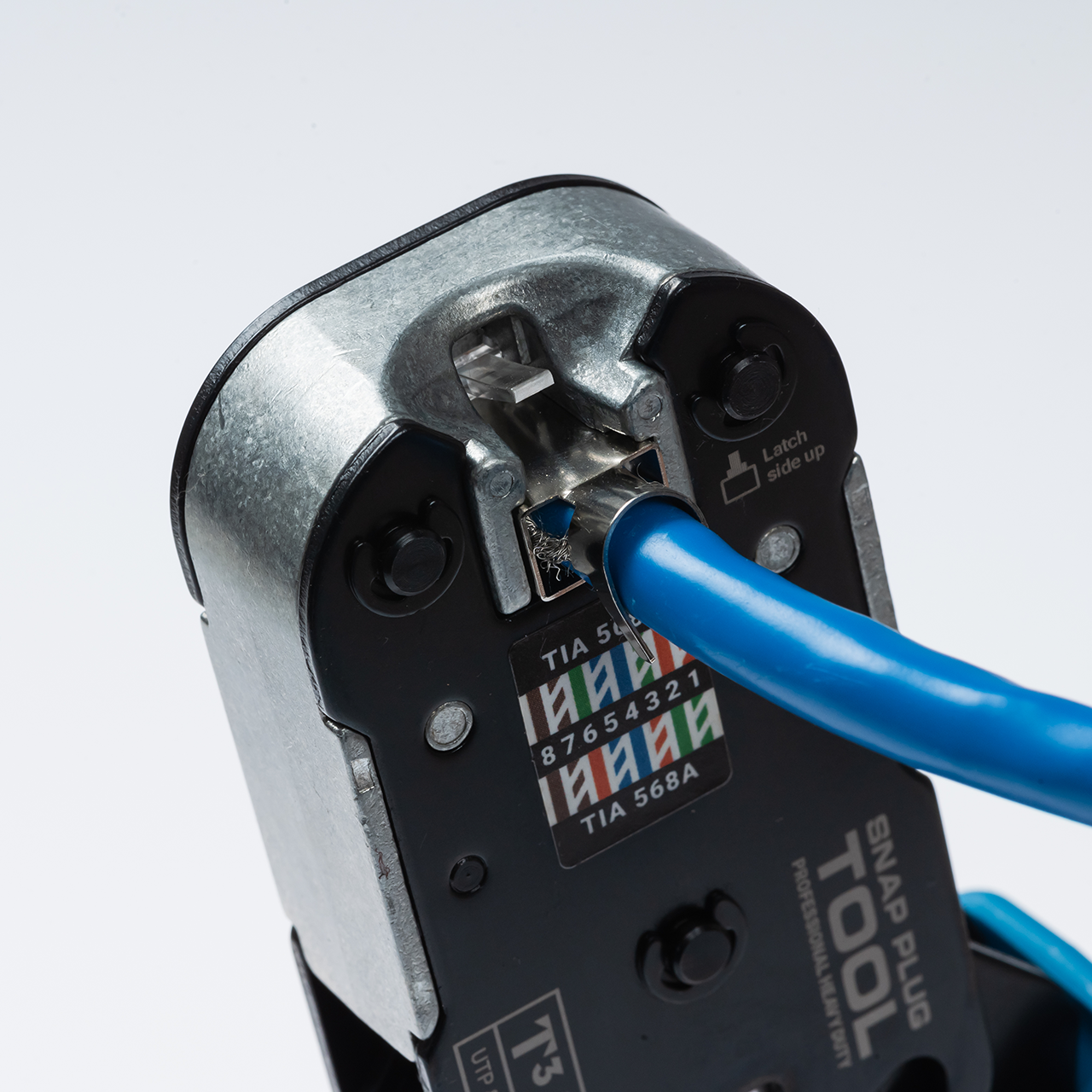

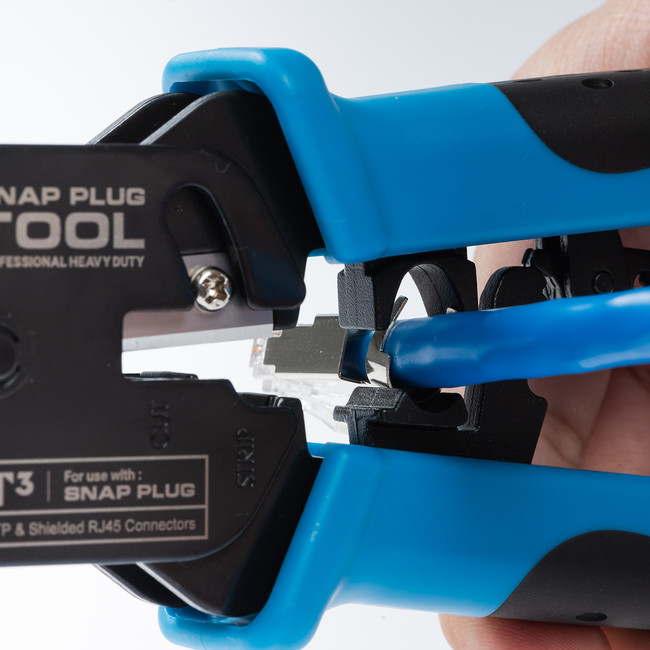

• Plug holder (connector would snap into the crimping nest, like keystone jack, so the plug won't fall out by accidentally)

Differences between the popular model T10520:

• No 6P crimping, only 8P8C RJ45 crimping
• Redesigned the frame and improved the trimming to get a cleaner and flush cut result.

Features

• Good for all SNAP PLUG Pass-Through Modular Plugs. Including Cat5e UTP, Cat6 UTP, Cat6a UTP Cat5e STP, Cat6 STP, and Cat6a STP.
• Crimp the Strain Relief/Snagless Boot for SNAP PLUG and SNAP PLUG Pass-through Modular Plugs in one easy step.
• Ratcheted for stable and precise crimping every time.
• Deliver more torque than other tools.

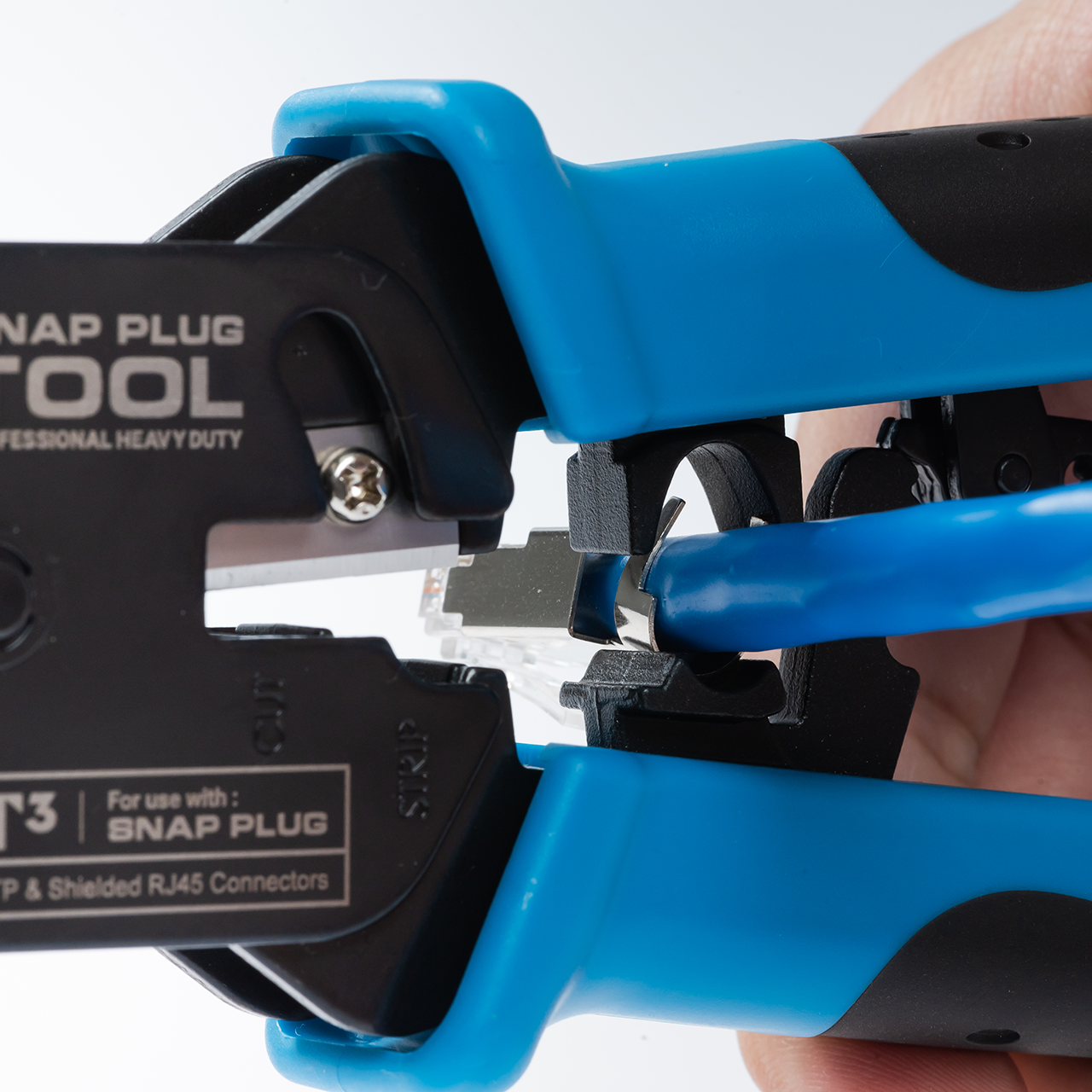

• Built-in LAN cable stripper and cutter for professional use.

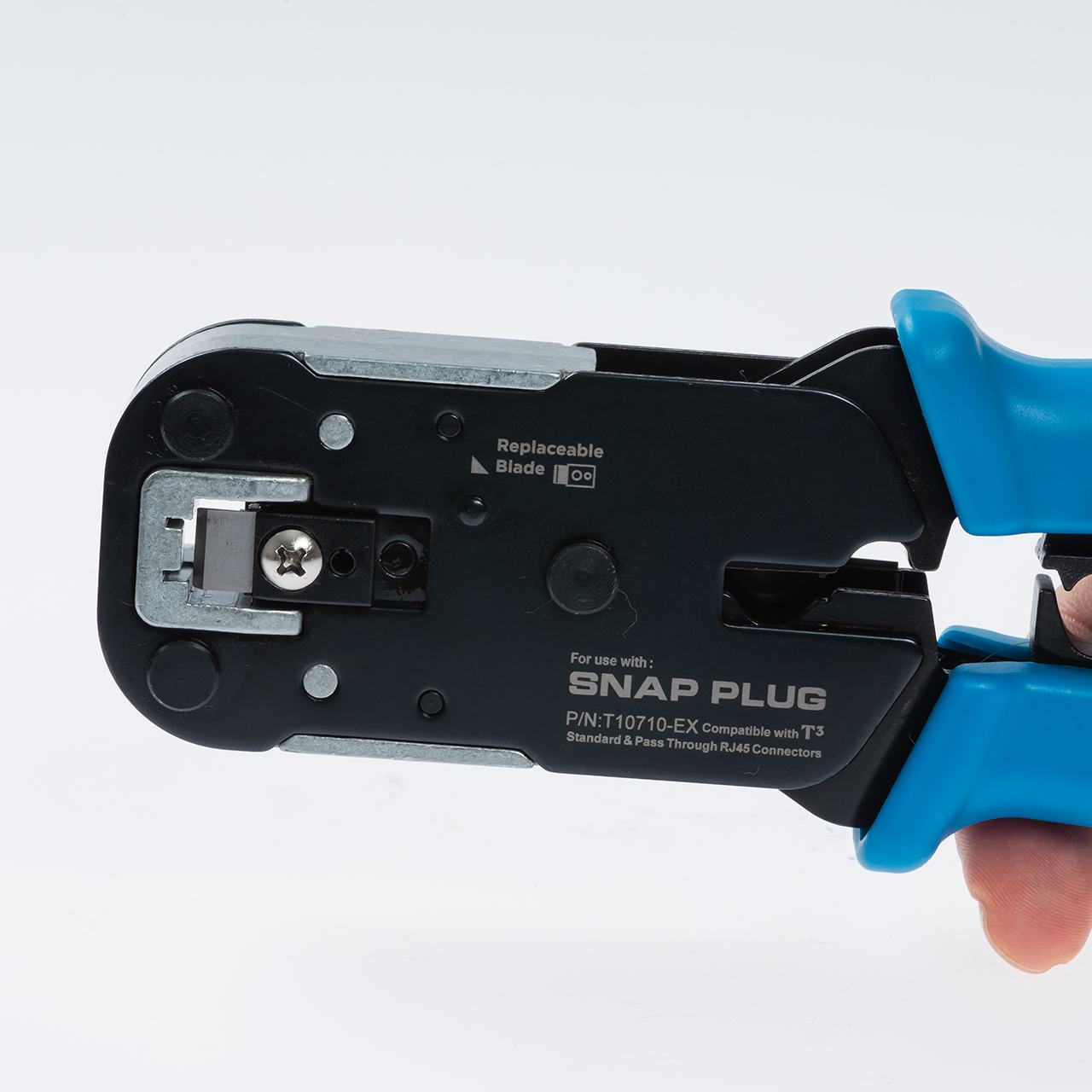

• Quick and easy trimming blade replacement.

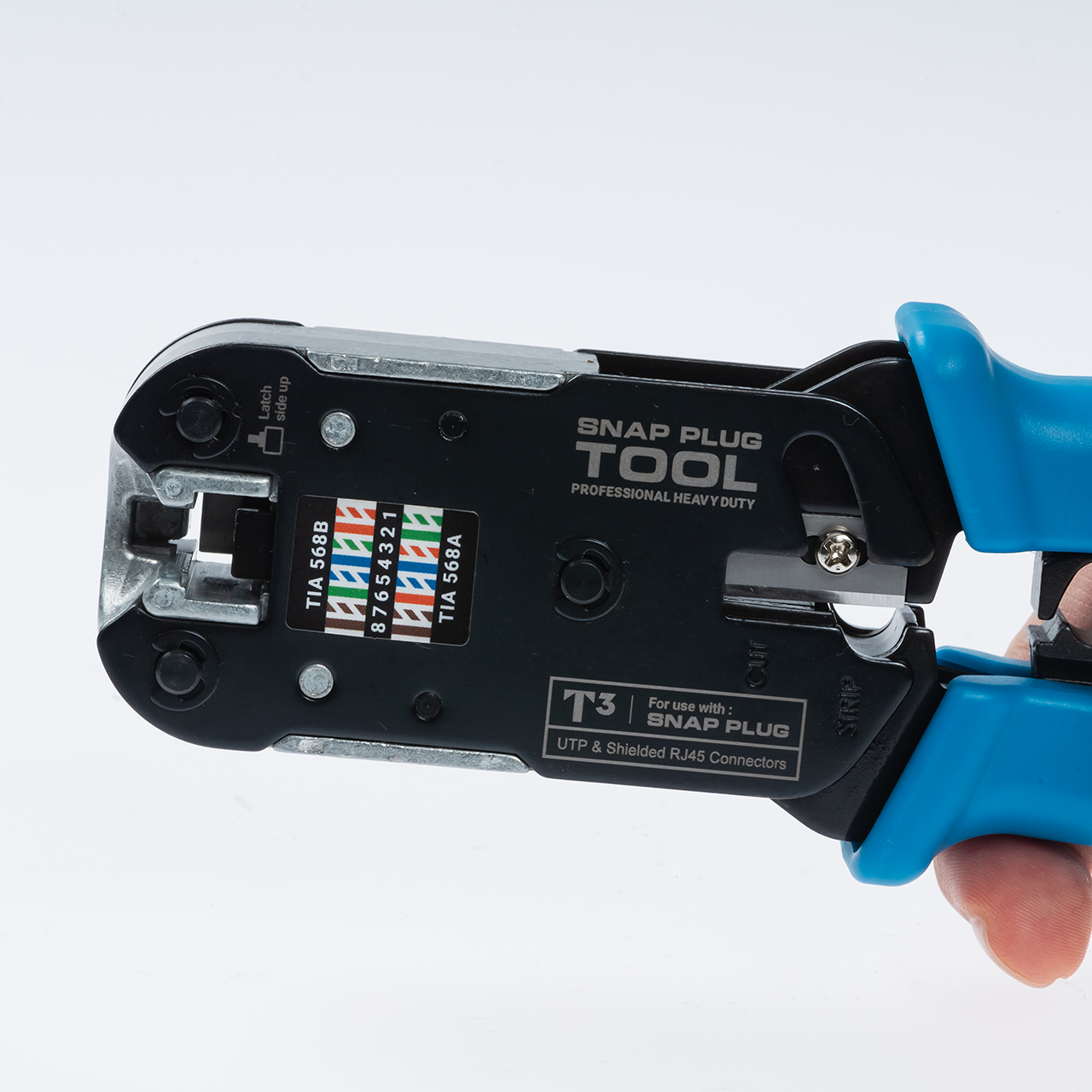

• Engraved guide for wire alignment order.
• Quality manufactured for durability and heavy-dutyuse.
• External ground crimping nest.
• Plug holder
• Not for use with standard RJ45 plugs.

Specifications

• Material-Body: Zinc
• Material-Handle & Cover Plate: Middle Carbon Steel
• Material-Grip: TPR Handle (55D durometer TPR for red, 65A durometer for black)
• Material-Trimming Blade: Machined SK5 (HRC57-67)
• Hardness-Handle & Cover Plate: HRC38~46
• Finish-Handle & Cover Plate: Black Oxide
• Overall Length: 205mm /-5mm
• Overall Weight: 430 /-10g

Q: I have a Platinum Tools crimper EZRJPROHD that was designed for the Platinum Tools EZ connectors. Can I use this crimper on the T3 Snap Plug?

A: The T3 products are designed with tight tolerances to work perfectly together. Platinum Tools manufacture theirEZ plugs in the US as opposed to Taiwan, so their matching crimper is designed to work with just their connectors. Having said this, in our samples, the Platinum crimper stillworked with T3 connectors. Below is a picture of the end result. Note the slight indentation (damage) on the T3 connector left by the Platinum Tools crimper. Please be aware, as the crimp tool is not designed for otherplugs, if you use it very often, your crimp tool will be worn out quickly.
