UTI120MOBILE ANDROID SMARTPHONE THERMAL IMAGER

IR 120x90 ANDRIOD TYPE C

Code: 47032510

0.1850 kg
6935750512616
EACH
4
Low Stock
$299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

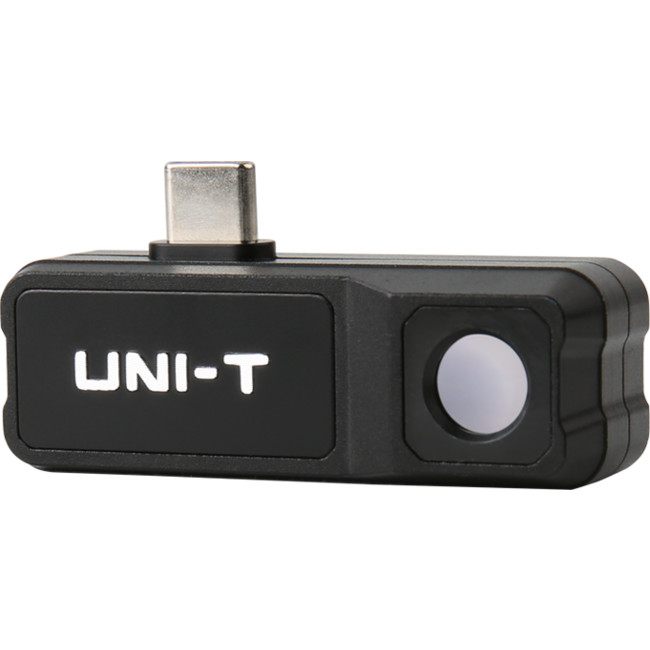

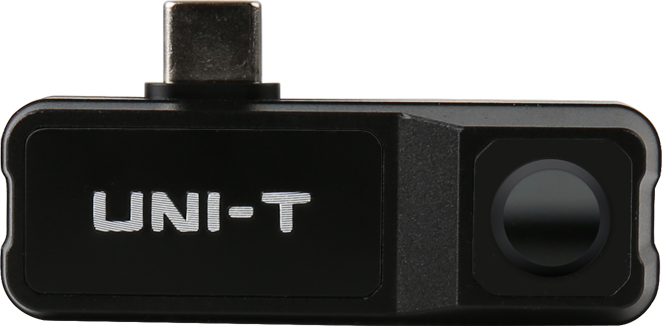

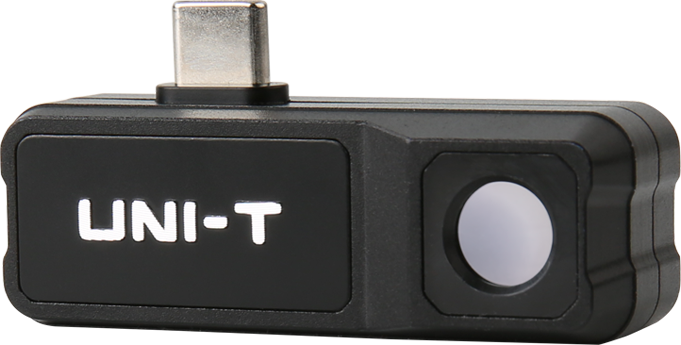

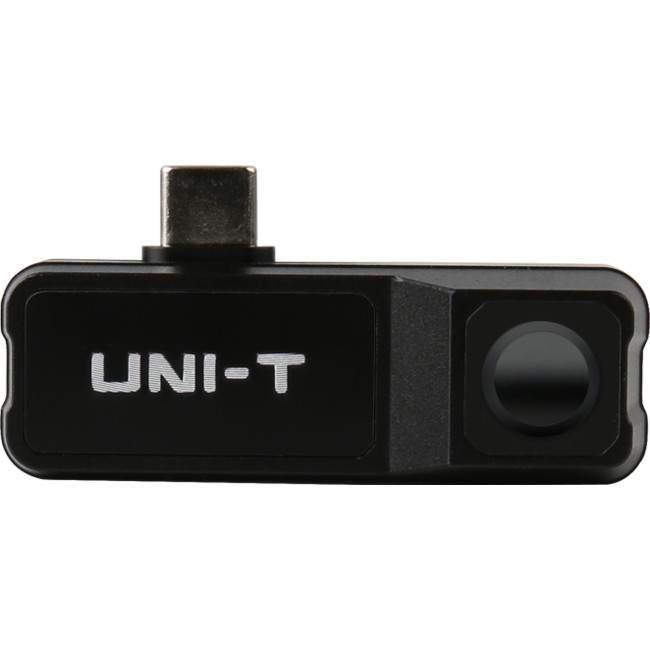

UTi120Mobile Thermal Camera Module for Andriod

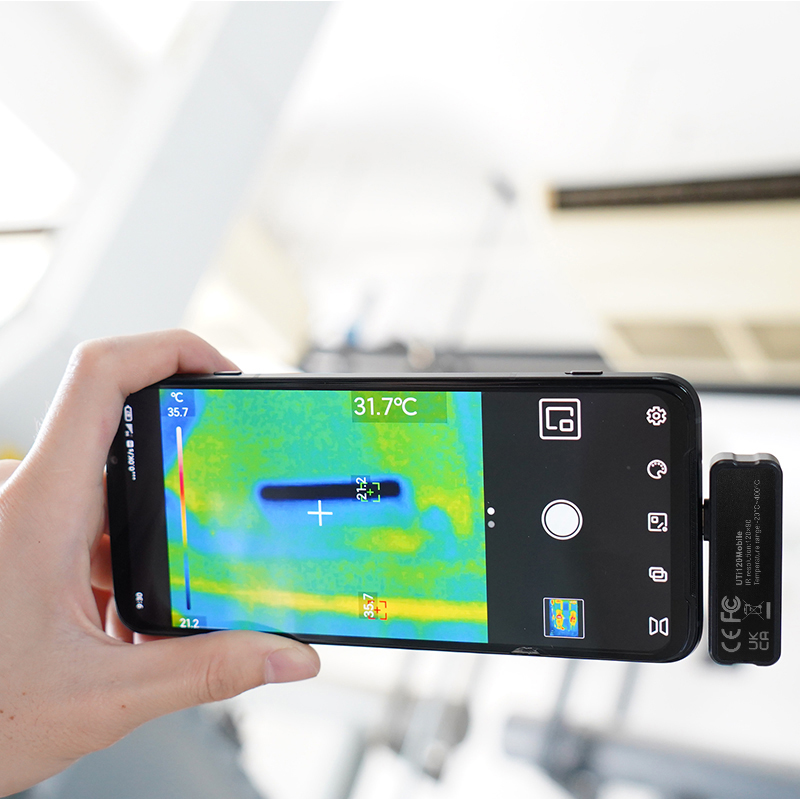

UTi120Mobile is a professional smartphone thermal camera module for Andriod devices, which is compact, portable, and easy to operate by connecting with mobile phones. UTi120Mobile provides a clear image with a fast response, and can also detect temperatures up to 400°C. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors builders, etc.

Features

  • Designed for Andriod smartphone
  • Plug and play with "Thermal Mobile" APP
  • IR Resolution: 120×90
  • Temperature measurement range: -20°C to 400°C / -4°F to 752°F
  • Compact size and easy to carry
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 6 Points / 6 Lines / 6 Rectangles / 6 Circles
  • Image capture
  • Video recording

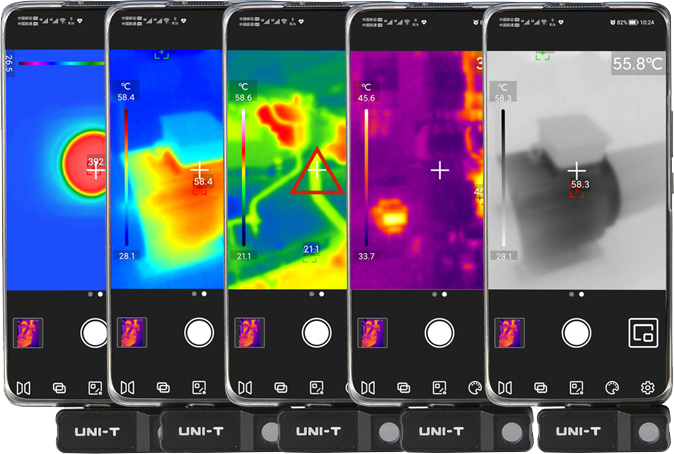

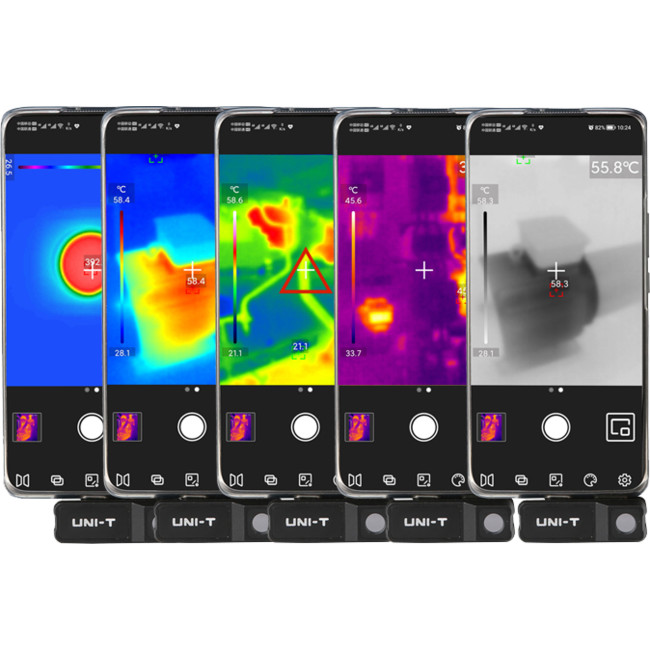

  • Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: Android USB Type-C interface
  • 2m drop-proof
  • Create report with on screen analyzer in the APP

Applications

  • Manufacturing Machine Inspection
  • PCBA Inspection
  • Freezer Inspection
  • Electricity Inspection
  • Pipeline Inspection

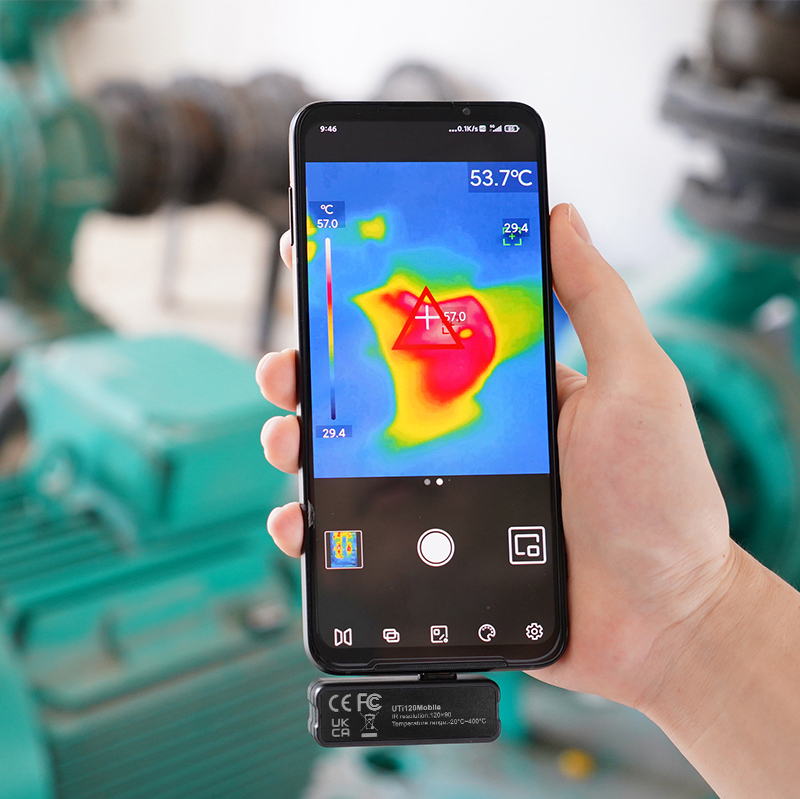

  • Motor Inspection

Specifications

Technical Data
IR resolution (Pixels) 120×90
Field of view(FOV) 50° H×38° V
Thermal sensitivity(NETD) ≤60mK  @25°C
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus free
Lens focal length 2.28mm
Temperature measurement range  -20°C ~ 400°C
Temperature display Center Spot, High Spot, Low Spot
Accuracy For temperature > -10'C, ±2% or±2'C(whichever is greater, ambient temperature 25'C)
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Temperature units °C, °F
Temperature resolution 0.1°
Image modes Thermal,Fusion,PIP
PIP Display visual image (on phone) and infrared image simultaneously
On screen analyzer 6 Points/6 Lines/6 Rectangles/6 Circles
Hi/Lo temperature alarm Yes
Hi/Lo tracking Real-time tracking of Hi/Lo spot in the thermal images
Image editing Saved images can be edited, but videos cannot
Video recording Yes (via the phone)
General Characteristics
USB Type C
Operating temperature 0- 45°C
Storage temperature -20- 60°C
Relative humidity 10%-85%RH, non-condensing
Altitude 2000m
Drop-proof 2m
Image/Video storage format JPEG, MP4
Certificates CE,UKCA,FCC,RoHS,MFi
Product net weight 25g
Product size 53mm×18.2mm×18.5mm

What is in the box?

  • UTi120MS x 1
  • UTi120MS case x 1
  • 1M USB Type C plug to socket extension cable x 1
  • Micro USB to Type C adapter x 1
  • English manual x 1
  • Documents download operation guide card x 1
  • Cleaning cloth x 1
