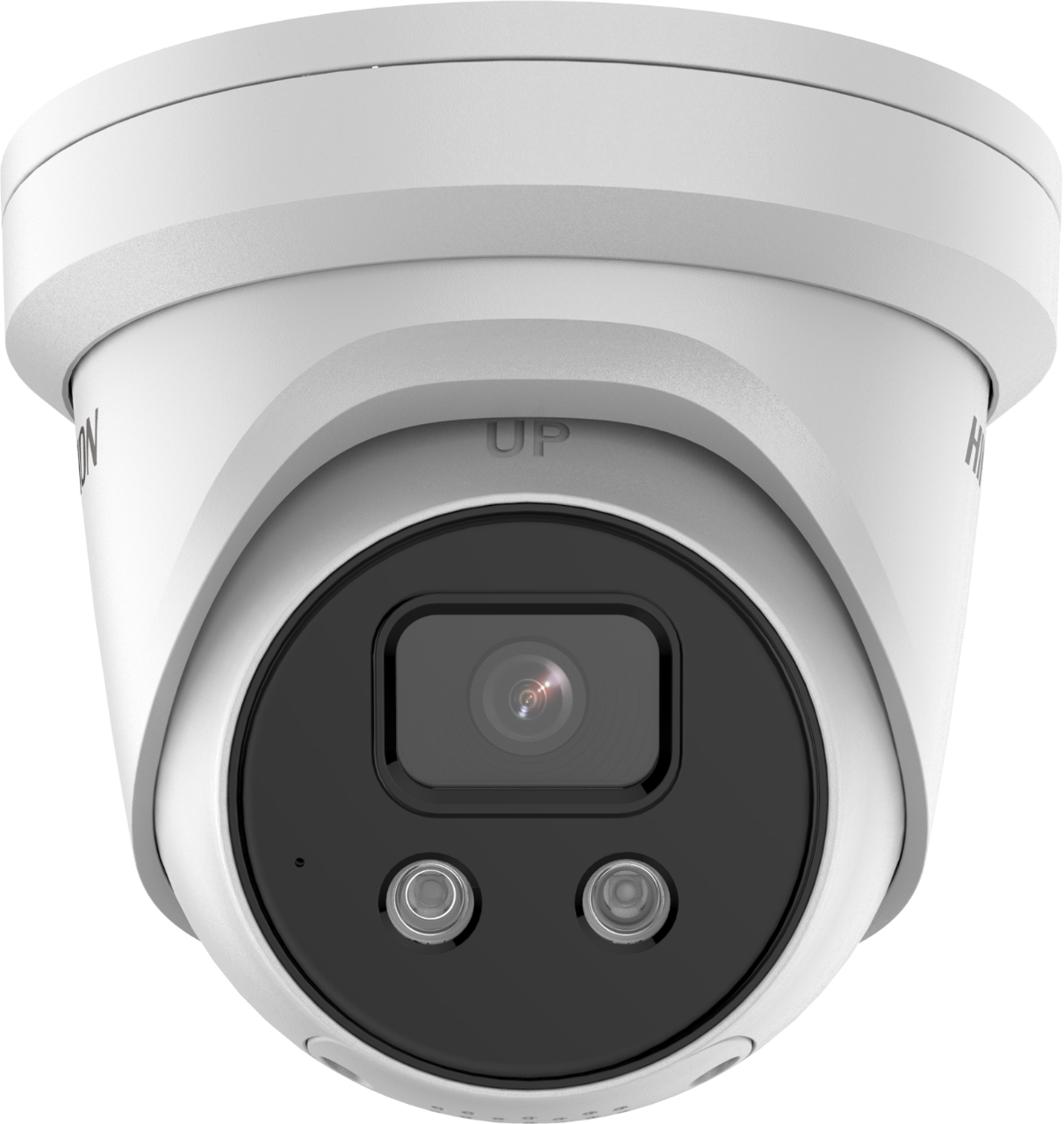

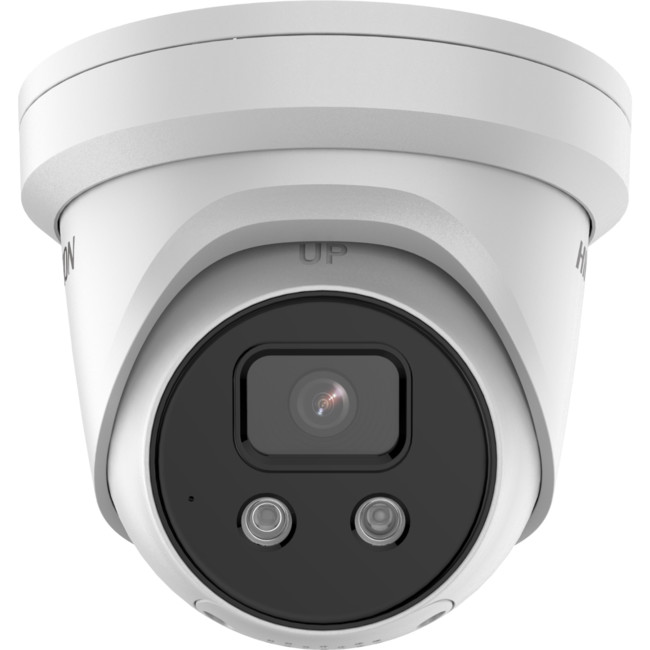

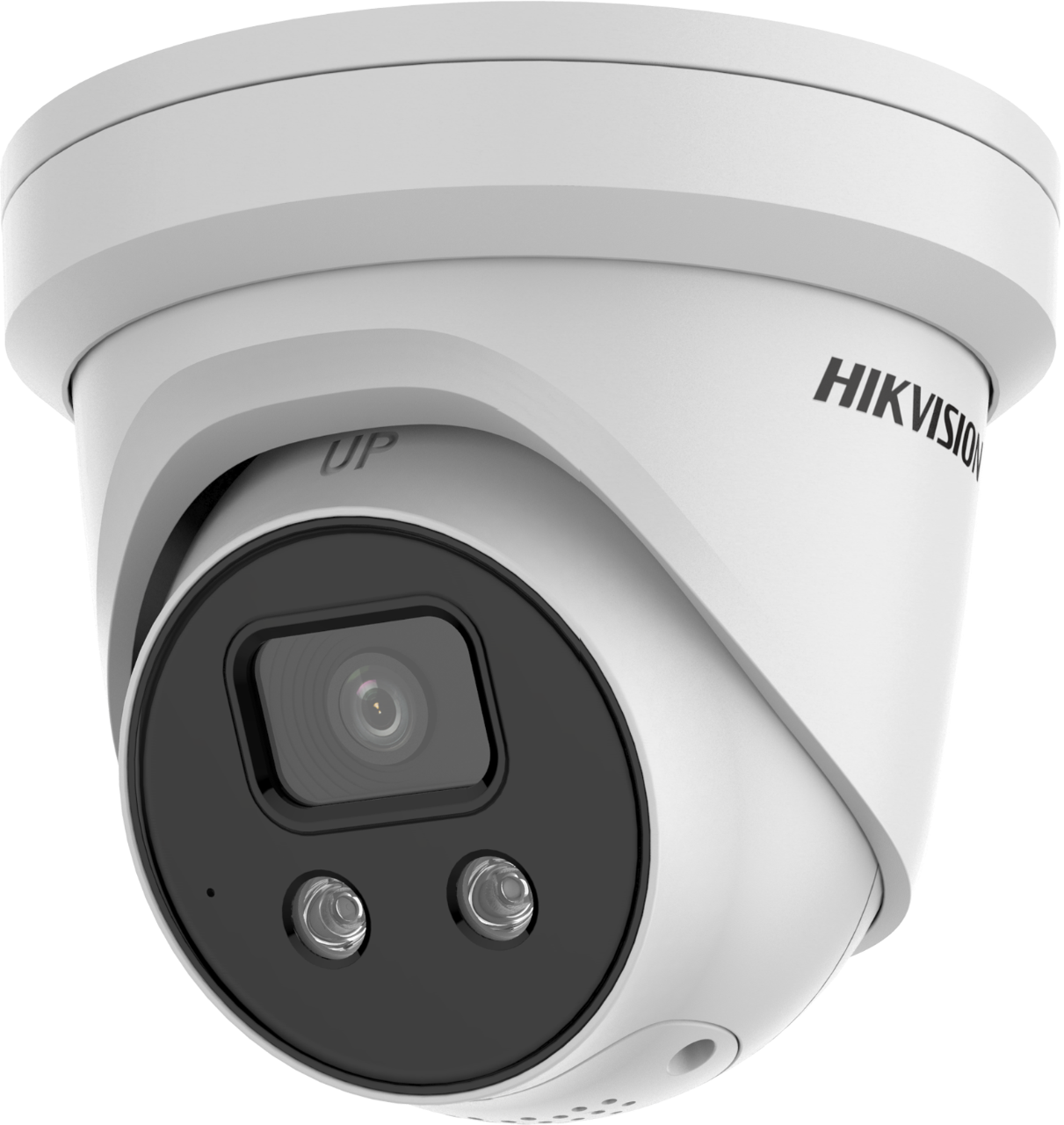

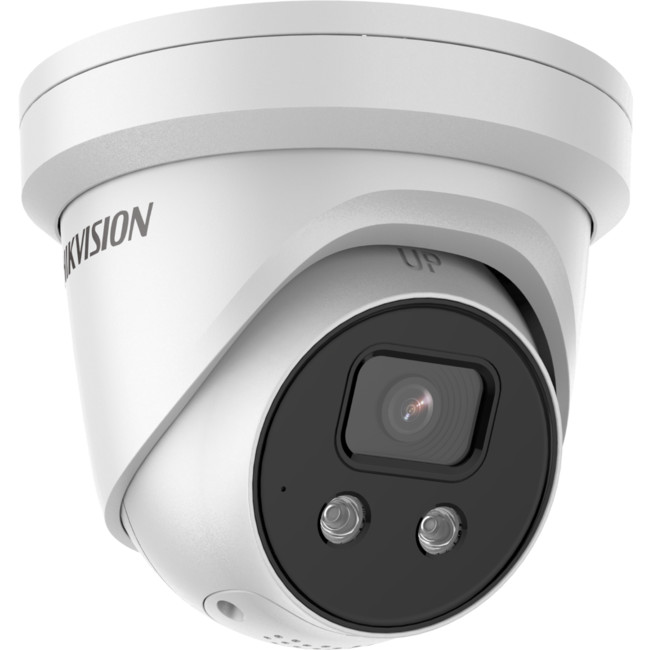

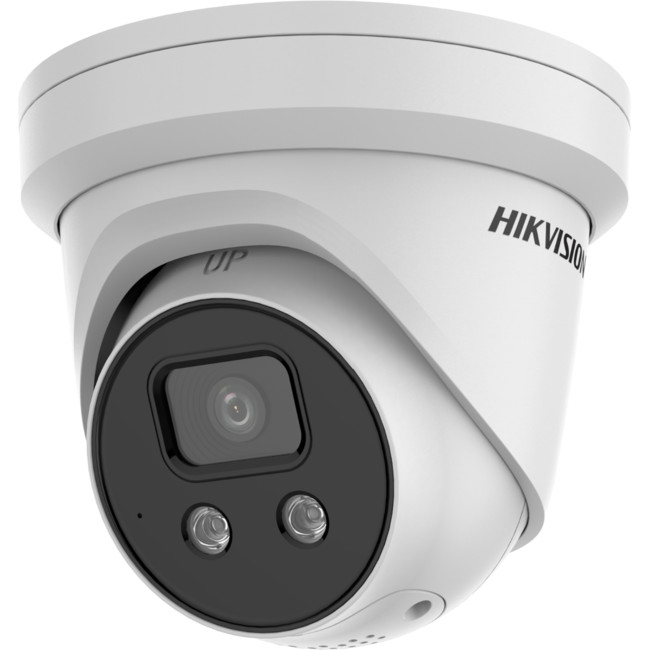

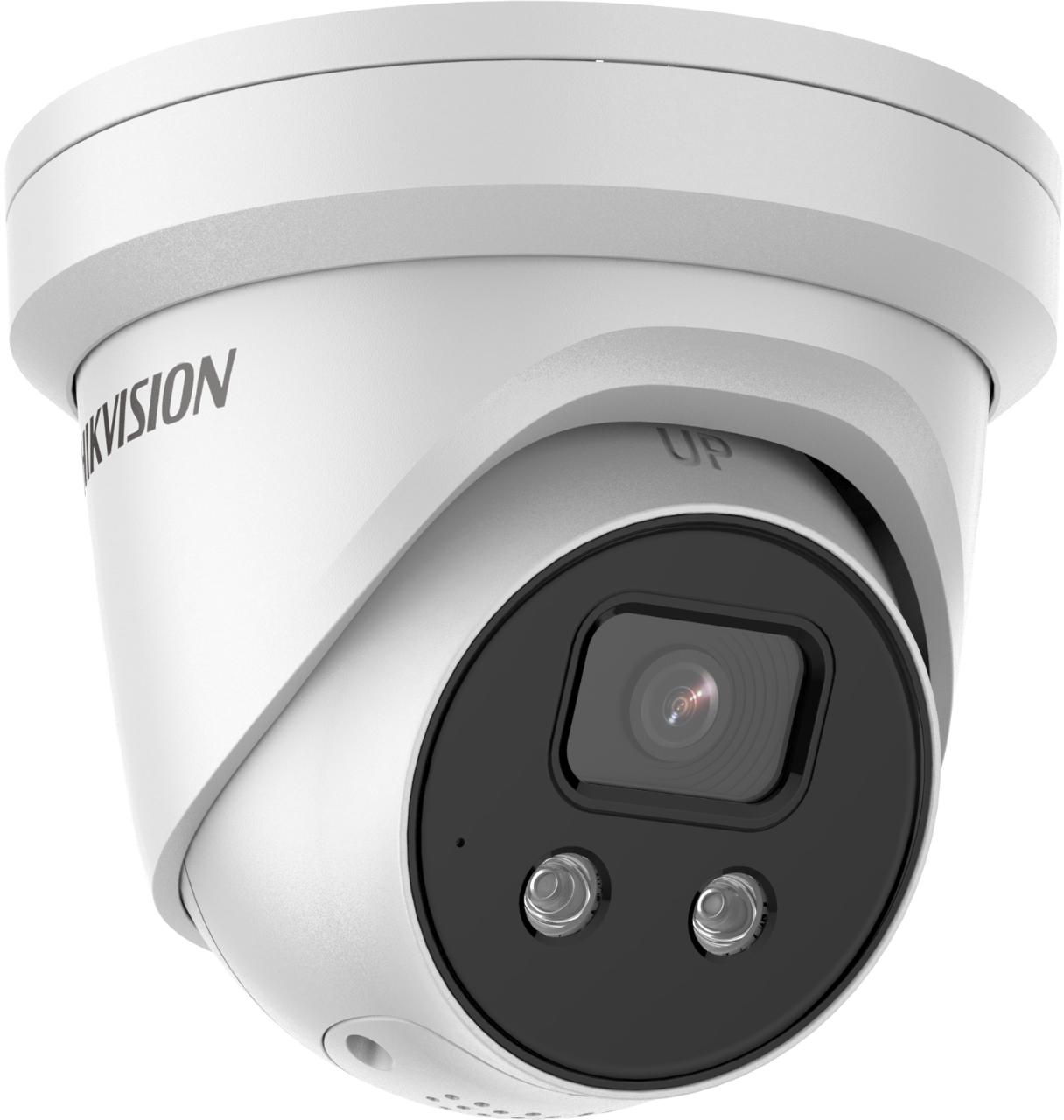

114-161C 2.8MM 8MP (4K) TURRET CAMERA - HIKVISION
4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification
alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than
humans or vehicles, vastly improving alarm efficiency and effectiveness.
{tab Features}
- High quality imaging with 8MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120dB true WDR technology
- Efficient H.265 compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
{tab Specs}
Camera
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Min. Illumination Colour: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed: 1/3s to 1/100,000s
- Slow Shutter: Yes
- P/NP/N
- Wide Dynamic Range: 120dB
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Max. Resolution: 3840 × 2160
Lens
DORI
Illuminator
- Supplement Light Type: IR
- IR Range: Up to 30m
- IR Wavelength: 850nm
- Smart Supplement Light: Yes
- Visual Alarm: Yes
- Supplement Light Range: Up to 30m
Video
- Max. Resolution: 3840 × 2160
- Main Stream
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60Hz: 24fps (3840 × 2160)
- 30fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50Hz: 25fps (640 × 480, 640 × 360)
- 60Hz: 30fps (640 × 480, 640 × 360)
- Third Stream
- 50Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60Hz: 10fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
- Main stream: H.265/H.264/H.264 /H.265
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate: 32Kbps to 16Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- H.264 Main stream supports
- H.265 Main stream supports
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region Of Interest (ROI) 1 fixed region for main stream and sub-stream
- Target Cropping: Yes
Audio
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHz/48kHz
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate: 64Kbps (G.711ulaw/G.711alaw)/16Kbps (G.722.1)/16Kbps (G.726)/32 to 192Kbps (MP2L2)/8 to 320Kbps (MP3)/16 to 64Kbps (AAC)
Network
- Simultaneous Live View: Up to 6 channels
- API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
- MicroSD/SDHC/SDXC card (256GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- Plug-in required live view: IE 10
- Plug-in free live view: Chrome 57.0 , Firefox 52.0
- Local service: Chrome 57.0 , Firefox 52.0
- SNR: ≥ 52dB
- Target Cropping: Yes
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR) 120dB
Interface
- Alarm: 1 input, 1 output (max. 24V DC / 24V AC, 500mA)
- Audio
- 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
- 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
- 1 built-in speaker, 1 built-in microphone
- Built-In Microphone: Yes
- Built-In Speaker Power: 1.2W. Max. sound pressure level: 10cm: 95dB.
- On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 256GB
- Hardware Reset: Yes
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
- Line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Supports human and vehicle targets classification
- Scene change detection
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Deep Learning Function
- Face Capture: Yes
- Perimeter Protection
- Line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Supports human and vehicle targets classification
General
- Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
- Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Software Reset: Yes
- Firmware Version: V5.5.112
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply
- 12V DC ± 25%, reverse polarity protection
- PoE: 802.3af, Class 3
- Power Consumption And Current
- 12V DC, 0.75A, max. 9W
- PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17A, max. 10W
- Power Interfac: eØ5.5 mm coaxial power plug
- Camera Material: Metal except for trim ring
- Camera Dimensions: Ø138.3mm × 124.5mm (Ø5.4" × 4.9")
- Package Dimensions: 170mm × 170mm × 150mm (6.9" × 6.9" × 5.9")
- Camera Weight: Approx. 840g (1.9 lb.)
- With Package Weight: Approx. 1160g (2.6 lb.)
- Power
- 12V DC ± 25%, 0.75A, max. 9W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE: 802.3af, Class 3, 36V to 57V, 0.28A to 0.17A, max. 10W
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 Am 1:2009 Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 Am 1:2009 Am 2:2013, IEC 62368-1:2014 )
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013)
