VLM4600B 37"-70" 35KG ARTICULATED MOUNT

VLM-4600B - ARTICULATED LCD WALL BRACKET

FEATURES:

• Enjoy the many benefi ts of mounting your flat panel screen on the wall. Ideal for both private homes and commercial premises alike.

• Easy to install the VLM-4600 comes fully assembled.Complete with an elegant articulated arm, with 3 pivot points, which allows the screen to be viewed from any position.

• Tilt correction facility allows the screen to be accurately levelled.

• Easily attaches to most 37” to 70” ( 94CM - 178CM )LCD screens weighing up to 35kgs using the supplied hardware kitand without the need for special tools.

• Heavy cast alloy construction is powder coated in an attractive silver or black finish.

• The stylish and unobtrusive design fits easily into any environment.

• TV Level adjustment -3° to 3°

PACKAGE INCLUDES:

• Wall mount plate assembled with adjustable reach arms, tilting screen plate with two adjustable vertical rails, quality mounting hardware and installation instructions.

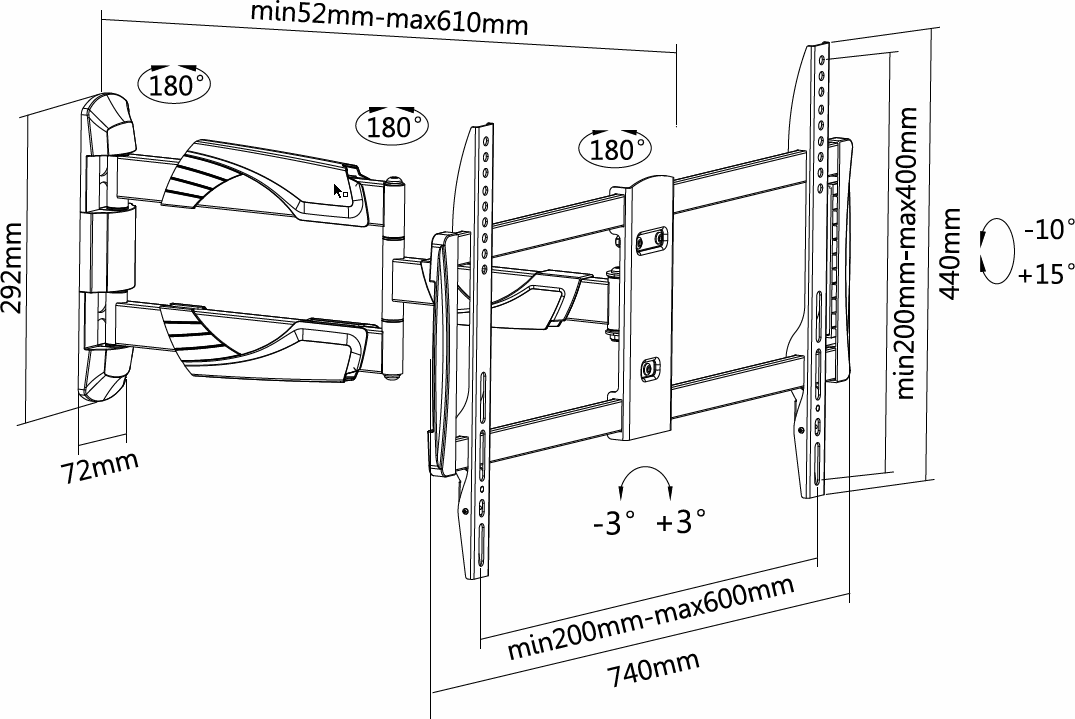

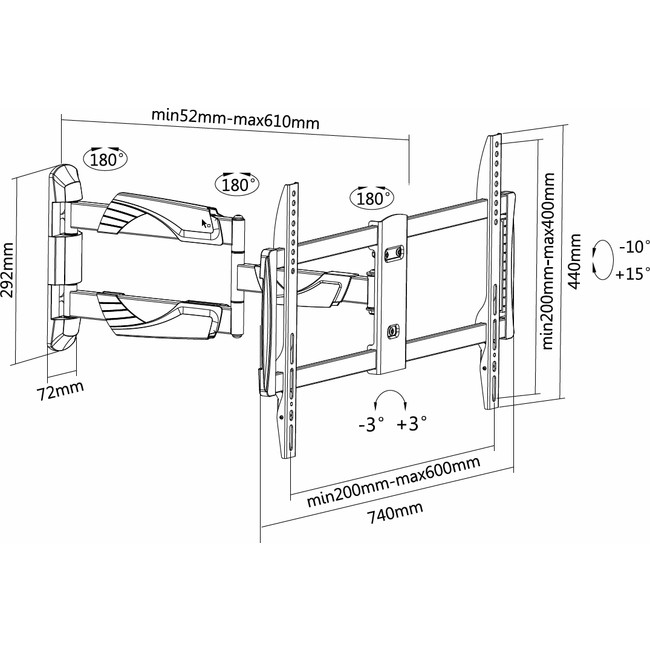

SPECIFICATIONS:

• Colour: Black (VLM-4600B)

• Weight Capacity: 35kg max (screen weight)

• Suits: LCD/LED TV Screens with VESA compliant hole patterns within the following ranges: Adjustable width; 200mm to 600mm. Adjustable height; 200mm to 400mm.

• Reach Adjustment: Minimum 52mm to Maximum 610mm from wall to Screen

• Retracted offset: 130mm

• Horizontal Pivot: 180°

• Tilt Range: -10° to 15° max

• Wall fasteners: 3 x wood and brick/concrete

• 10 Year Warranty
