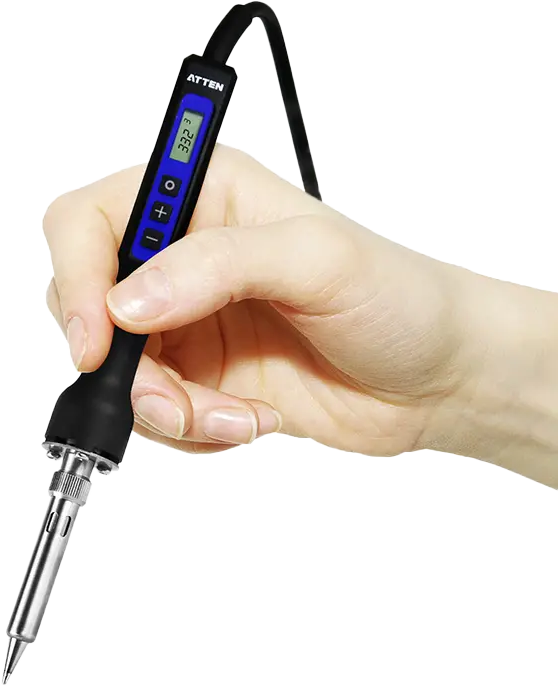

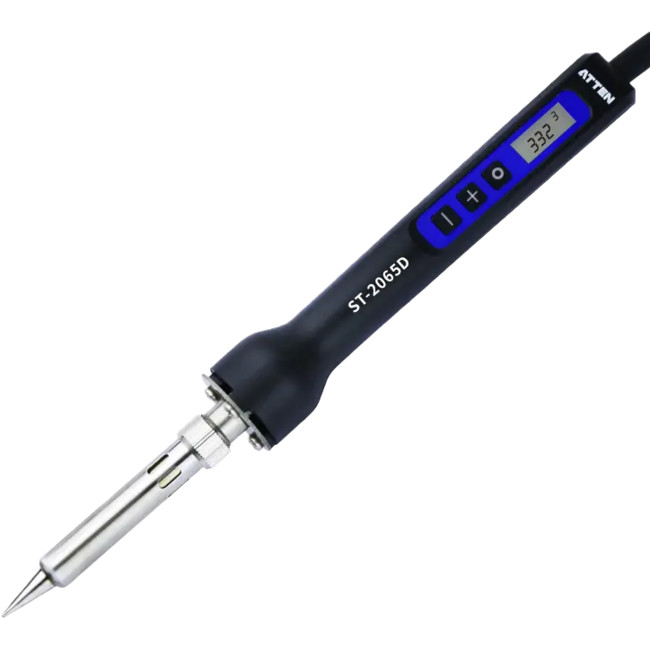

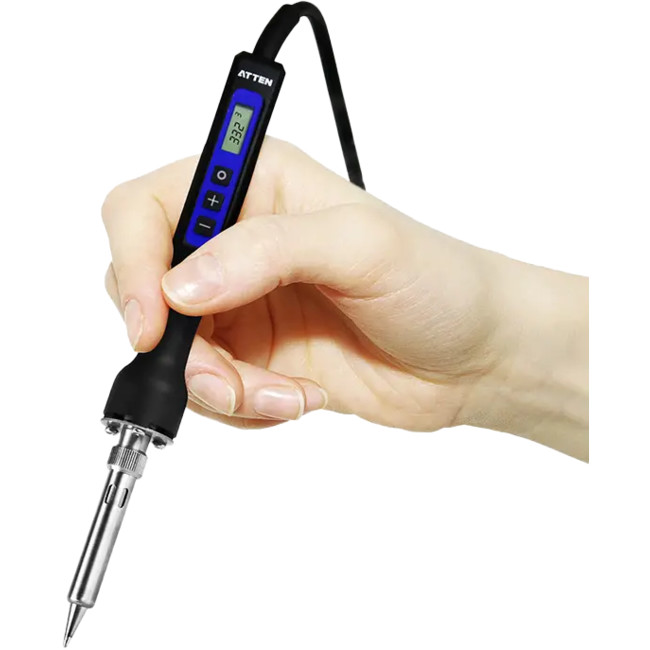

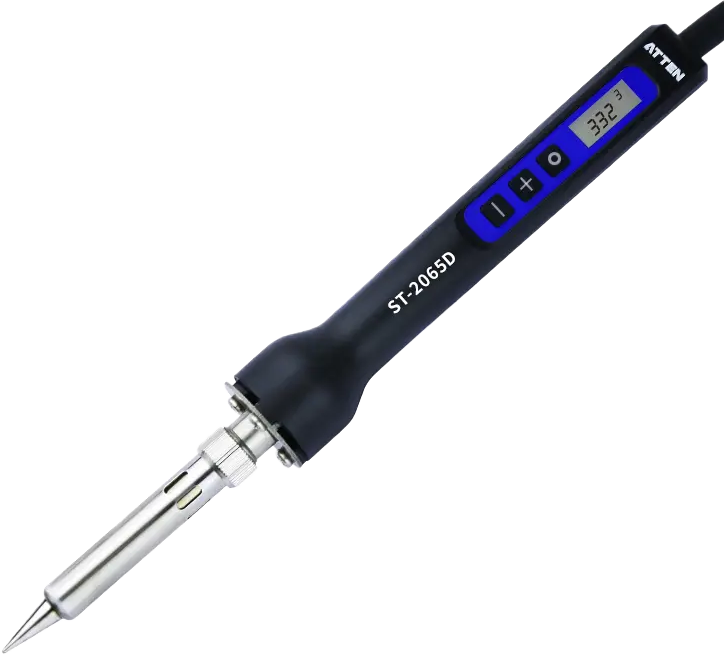

ST2065D 65W SOLDERING IRON WITH LCD DISPLAY

This 65W Atten St2065D soldering iron with LCD is a portable, temperature-adjustable, high-temperature controllable soldering iron. It uses a Four-core PTC heater that heats up quickly to a temperature of 250-480C. A built-in PID temperature system allows you to easily adjust the temperature via push buttons. The product has an LCD to display the temperature control status. The handle structure is ergonomically designed for a comfortable grip. Automatically sleeps after 10 minutes and shuts down after 20 minutes when the product has stopped operating. It is suitable for use with hobbyists, production lines, education, and industrial applications.

Features

• The product adopts LCD display and LED display design
• Built-in PID temperature control circuit, push-button temperature adjustment, easy to operate
• The structure of the handle is ergonomically designed for comfortable grip
• Use the bright blue LED to display the temperature control status
• The heating wire and sensor are made of PTC material, which is quick in temperature rise and accurate in temperature control
• The product has automatic sleep and auto power-off function
• Use a three-wire power cord
• The common temperature can be set and quickly retrieved
• Start up or shut down easily
• Temperature unit °C/°F switchable
• Easy to adjust setting mode
• The temperature compensation adjustment range is ±50°C/±90°F
• 9 groups shortcut temperature adjustment, In working status, press “ ” “-” to switch temperature group. 9 groups default temperature are: 250°C/482°F; 300°C/572°F; 325°C/617°F; 350°C/662°F; 375°C/707°F; 400°C/752°F; 425°C/797°F; 450°C/842°F; 480°C/896°F.
• Fault alarm function. When “H-E” is displayed on the screen, there is no temperature, which indicates that the heating element failed.When “S-E” is displayed on the screen, there is a fault in the sensor, which signifies that there is something wrong in the sensor or the related circuit of the sensor.

Specifications

• Power: 65W
• Temperature range: 250°C to 480°C
• Voltage: 110VAC/230VAC ±10% 50Hz/60Hz
• Temperature range: 80~480°C(176~896°F)
• Temperature offset range: ±50°C(±90°F)
• Temperature stability: ±2°Cat idle temperature
• Tip to ground resistance: <2Ω
• Tip to ground potential: <2mV
• Heating element: Four-core PTC heater
• Soldering tip: T900-B
• Blue LCDs temperature in °C or °F
• Automatic sleep after 10 minutes of inactivity
• Automatic shut down after 20 minutes of inactivity
• For use with T900 series tips
• Net weight 195±10g

What is in the box?

• Soldering iron ST2065D x 1pc
• Mania x 1pc
• Iron holder x 1pc

ST2080D ST2150D Soldering Iron (Small difference with ST2065D)

ST2080D ST2150D Soldering Iron (Small difference with ST2065D).
