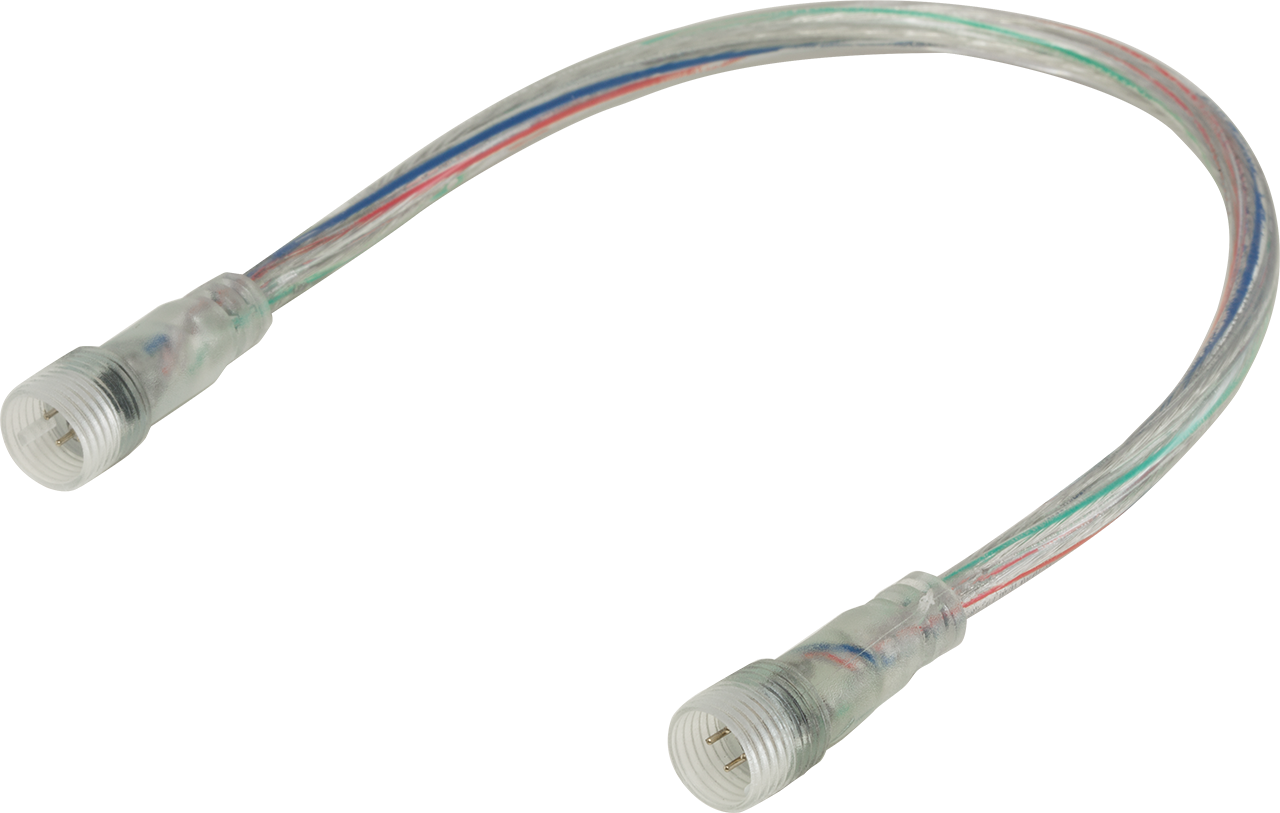

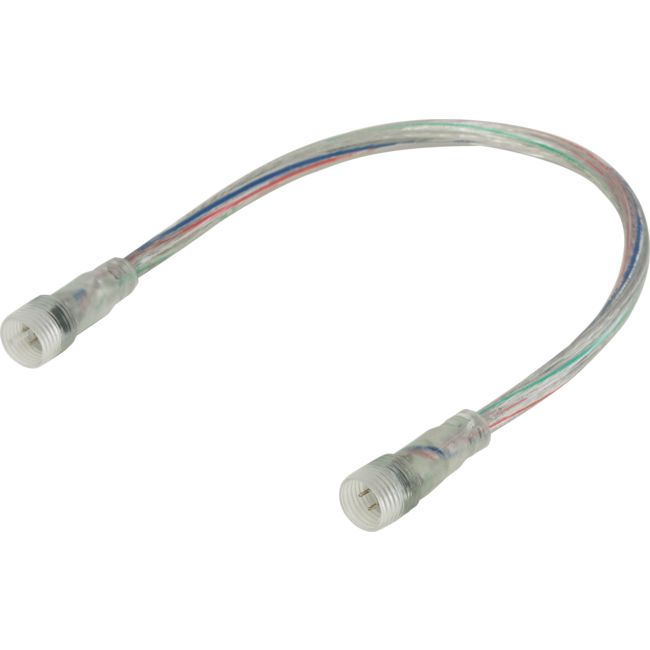

RGB15PP 4 PIN WATERPROOF PLUG-PLUG

LED CONNECTOR LEAD

Code: 25332712

0.0100 kg
9328202030375
EACH
In Stock
$2.50 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

4 PIN WATERPROOF CONNECTOR PLUG TO PLUG LEADS

FEATURES

This is waterproof connector is to connect the RGB light.

Connection to transformer, for connecting LED strips, LEDwall-washers, LED underground light, LED rope right, LED belt light, curtain light, twinkle light and many application.

Package Included: 1 Set ofWaterproof Connector 4 Pin Push In PLUG TO PLUG Wire RGB

  • Productive Craft:lead-free handmade soldering, once injection moulding and for all.
  • Cable lenth: 15cm
  • Voltage Rating: DC 0?24V,(AC110V,220V)
  • Current Rating: 1~5A
  • Breakdown Voltage: =1500V
  • Grage of Waterproof: IP68
  • Working Temperature:-40 c~120c
  • Material: Copper PVC(international standard)
  • NOTE:
    1.Finished products must have 100% electrical test, disallwing open circuit/short circuit, electrical sudden disconnection.
    2.Insulation Resistance: 5.0M ohm/least.
    3.Energy Impedance: 3.0 ohm
    4. The products passed the RoHS environmental requirements.
    5. Connecting point must be one to one.



    SPECIFICATIONS

    IP68 Waterproof 4 pin Connector PLUG
    1 Model No.
    2 Material Connector Body Nylon(PA66) GF UL94V-0 1/16''
    3 Contact Brass with Gold Plated
    4 Sealing Silica Gel
    5 Property Current Rating 1-5A
    6 Voltage Rating 500V
    7 Contact Resistance <10mO
    8 Insulation Resistance 10MO at DC200V
    9 Breakdown Voltage 1.5KV/1minute
    10 Temperature Rating -40°C~ 120°C
    11 Durability(Plug/Unplug) 3000 times
    12 Waterproof Rating IP68
    13 Cable Max. Diameter 10mm
    14 Pins Range 2,3, 4, 5, 6, 7, 8
    15 Certificate CCC; CE; ROSH

    Material

    Terminal: Space between 2.54 2*2P Pin Header, Plating gold/tin
    Sizing Material: 35P-PVC, transparent
    Waterproof Circle: Black
    Nut shell: Transparent

    Connect all kinds of LED lighting products for indoor andoutdoor, for example: LED Strips, LED Spotlights, LED Flood lights, LED Wall washers.
