NPA20DA COMPACT DANTE NETWORKED POWER AMPLIFIER

2 X 20W OR 1 X 20W MONO

Code: 01619018

0.6000 kg
9340242005014
EACH
4
Low Stock
TRADE ALERT!
$699 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

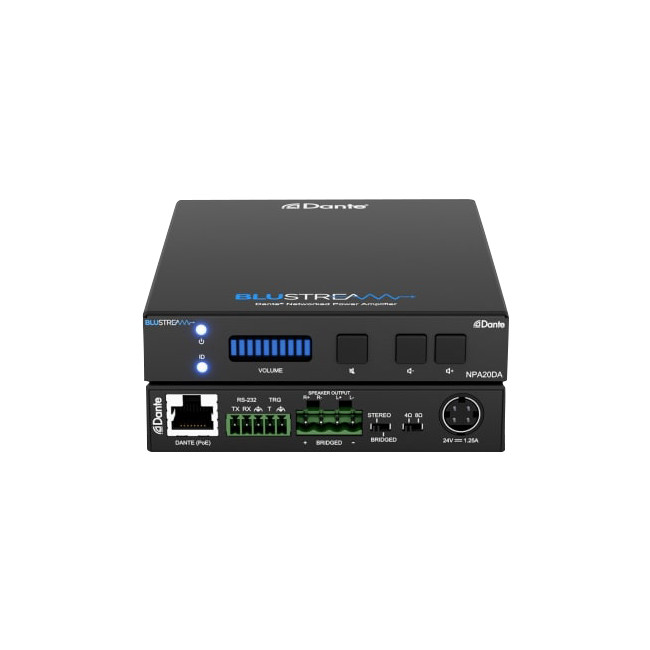

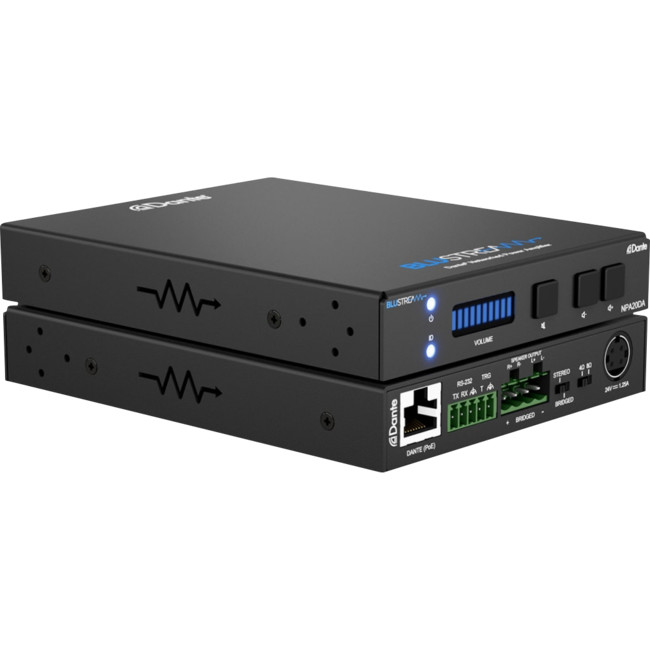

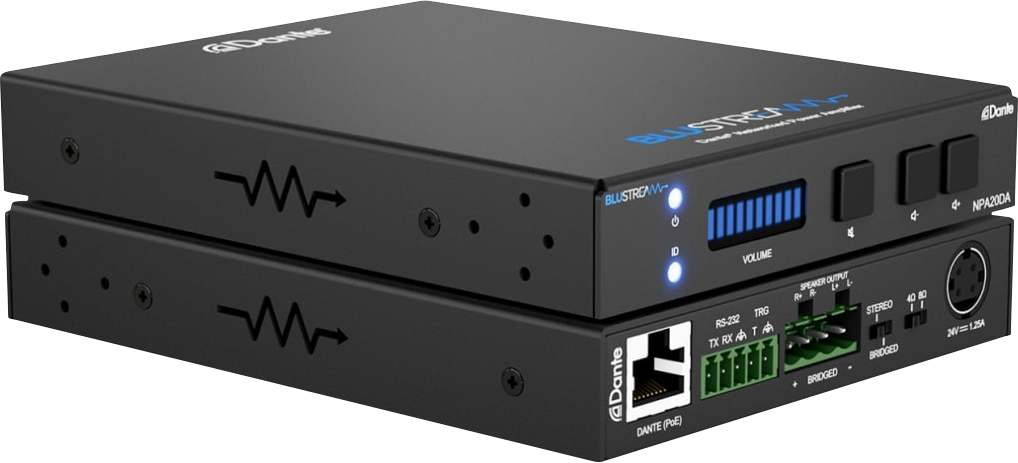

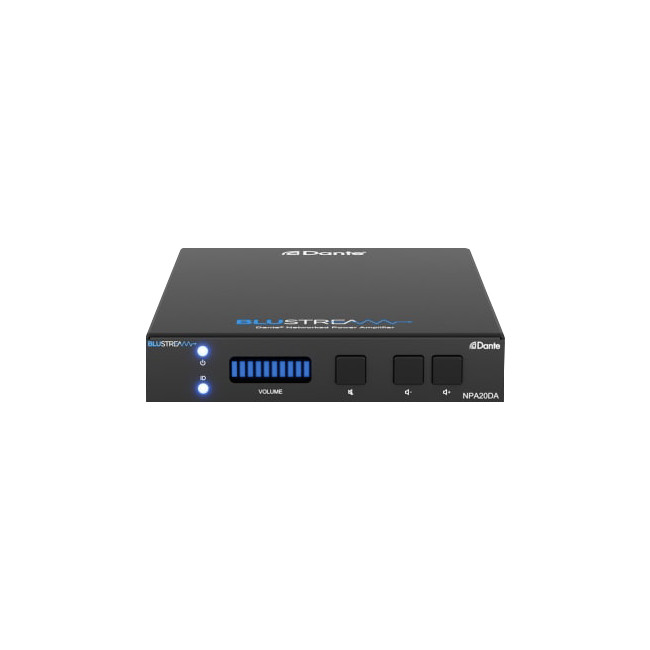

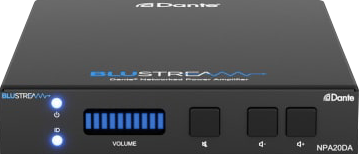

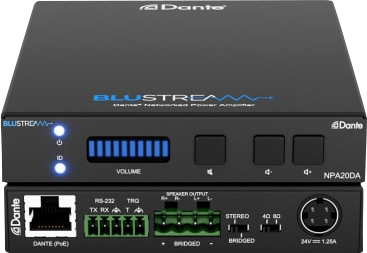

Blustream NPA20DA Networked Power Amplifier with Dante

Blustream's NPA20DA networked power amplifier delivers advanced audio integration within a commercial or residential AV installation.

The NPA20DA features a 2 x 10W digital amplifier (1 x 20W mono) audio output and Dante® audio integration.

The NPA20DA can be powered via PoE or PoE from a compatible network switch, or locally should the switch not support PoE. The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, DSP with a 31 band EQ, audio delay for lip sync correction, and control via front panel, RS-232, TCP/IP, web-GUI or 12V trigger.

AMPDantePoE plusWEB GUI

Key Features

  • Advanced network audio amplifier with Dante® integration
  • Supports 2 x 10W @ 4 / 8 ohm, 1 x 20W @ 4 / 8 ohm
  • Supports power via PoE on Dante® LAN connection or local power supply*
  • 2ch Dante® / AES67 audio input
  • DSP with 31 band EQ with 3dB/-10dB and audio delay
  • Local 0V / 5~12V input trigger for automated power control
  • Control via front panel, RS-232 and IP
  • Auto standby mode with signal sensing

Specifications

  • Audio Inputs: 1 x RJ45 Dante® Audio connection
  • Speaker Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker)
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • Trigger Input: 1 x 2-Pin Phoenix connector
  • Casing Dimensions (W x H x D): 112mm x 144mm x 22mm
  • Shipping Weight: 1.0kg
  • Operating Temperature: 32 F to 104 F (0 C to 40 C)
  • Storage Temperature: -4 F to 140 F (-20 C to 60 C)
  • Power Supply: PoE Type 2 Class 4, or 24V/1.25A DC 4-pin DIN (power supply not included)

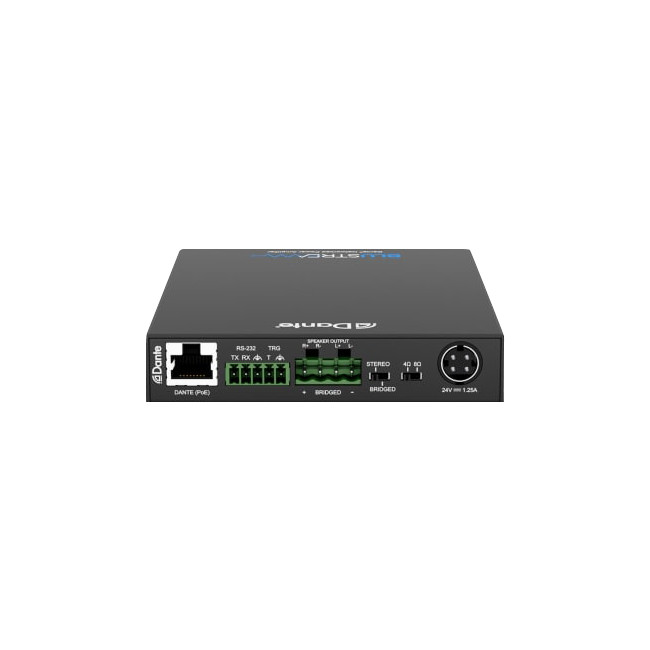

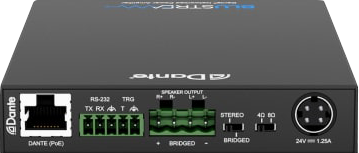

Connectivity

  • Audio Inputs: 1 x RJ45 Dante® Audio connection
  • Speaker Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker)
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • Trigger Input: 1 x 2-Pin Phoenix connector

Package Contents

1 x NPA20DA
1 x Mounting Kit
1 x User Manual
