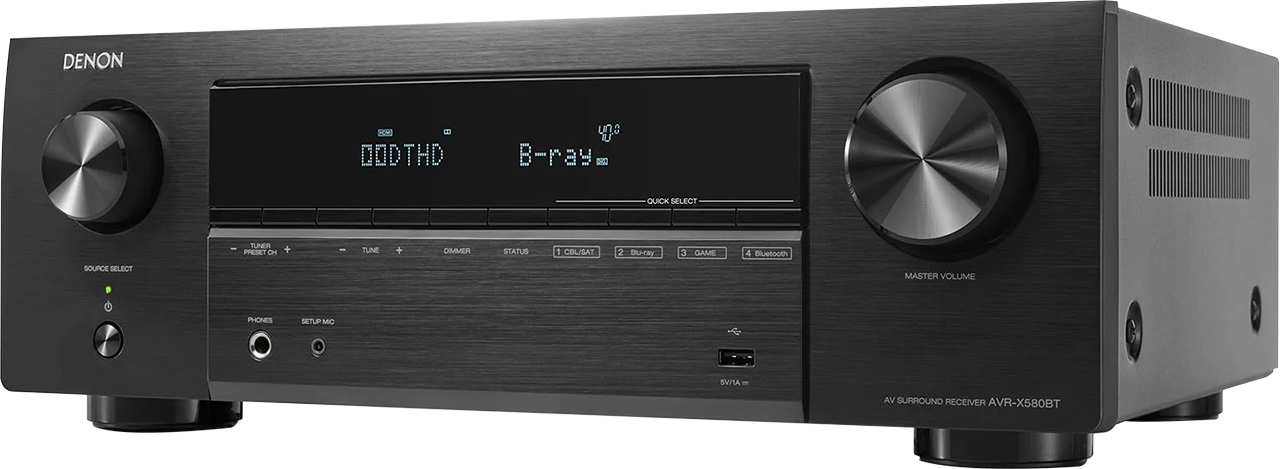

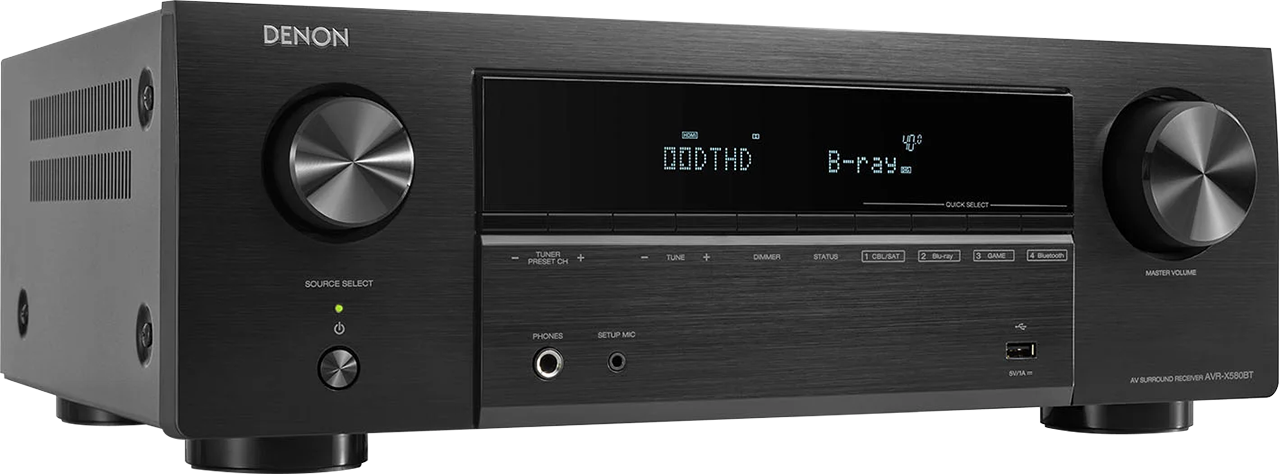

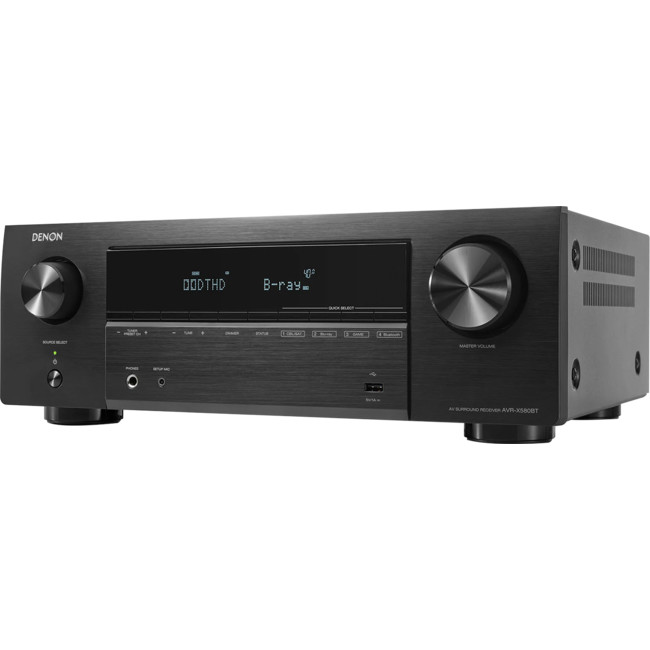

AVRX580BT 5.2CH 70W AV RECEIVER

Code: 01611163

9.40 kg
747192138585
EACH
ETA
2024-03-27
DON'T PAY $799
$599 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

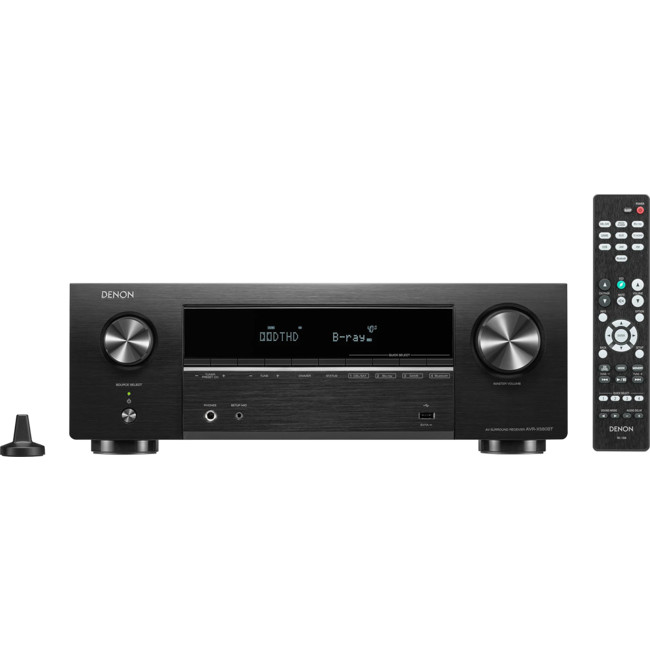

Denon AVR-X580BT 5.2 channel 130w 8K Home theatre Receiver

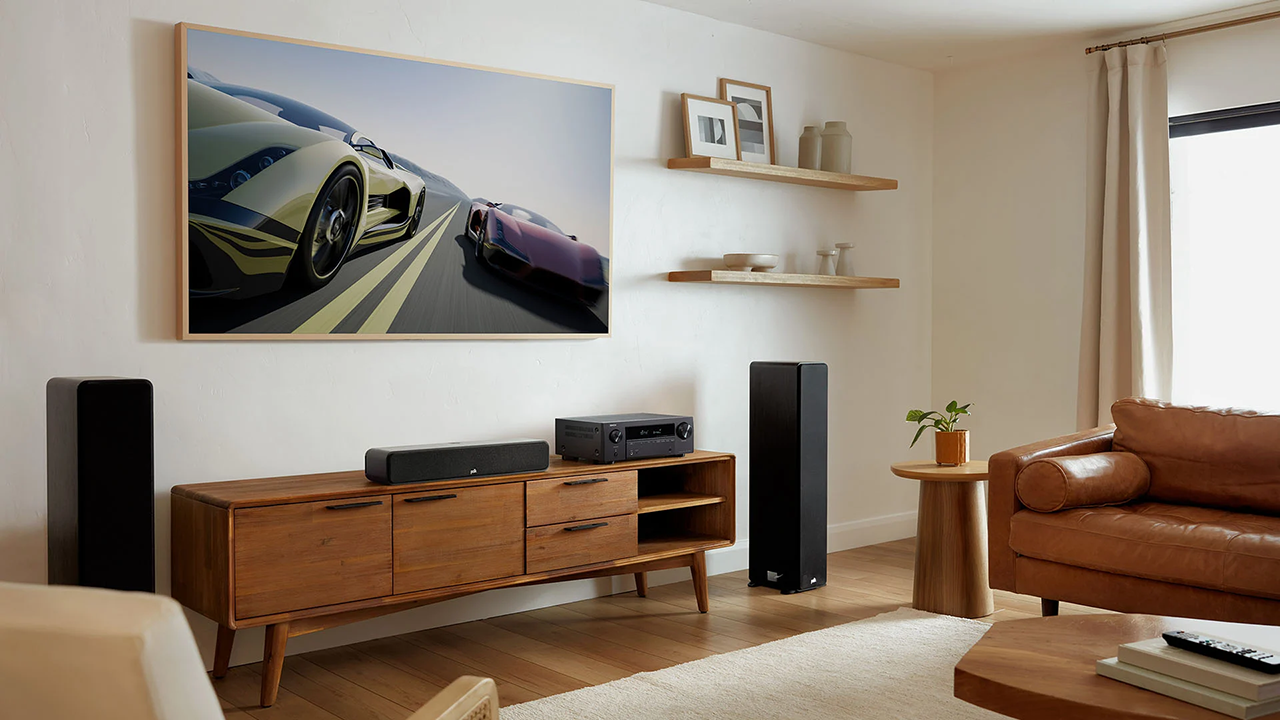

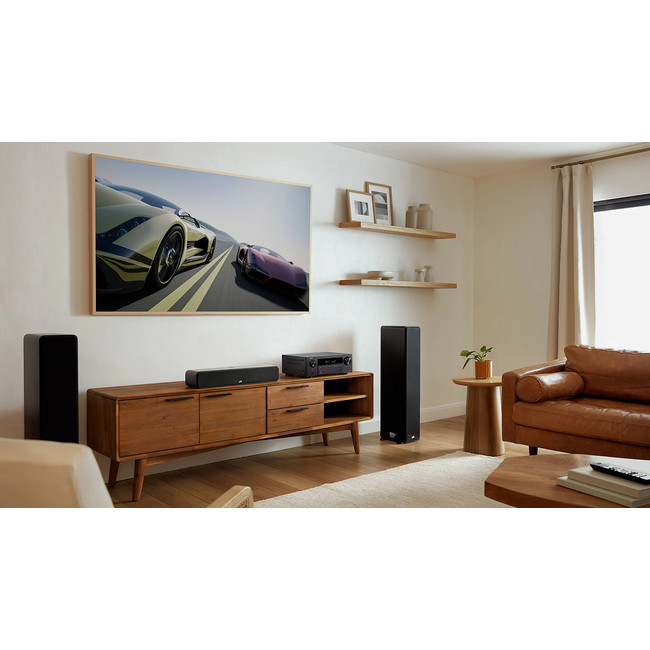

Welcome to 8K Home Theatre

Bring movies to life in smaller spaces with amazing 8K picture quality and true surround sound.

Enjoy all your favourite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth®.

Key Features

  • True surround sound experience: Supports Dolby TrueHD and DTS-HD for high-fidelity, lossless surround sound playback as well as Dolby and DTS upmixers up to 5.1 channels.
  • Affordable 8K: Supports the latest 8K HDMI technology so you can enjoy amazing picture quality.
  • Easy music streaming: Stream audio from your favourite music service via Bluetooth from any smart device.
  • Lag-free gaming: Brings together the latest technologies to ensure a smooth, lag-free gaming expericence.

Powerful, discrete 5-channel amplifier

With up to 130W per channel (at 6 ohms, 1kHz, THD 1%), there is enough power to drive high-quality sound from any speaker.

Dolby TrueHD

High-fidelity lossless DolbyTrueHD and Dolby Digital, DolbyDigital Plus signal decoder, and Dolby Pro Logic II upmixer for 2-channel audio signals to create a full 5.1 surround sound experience.

DTS Surround Technology

High-fidelity lossless DTS-HD and DTS Surround, DTS 96/24signal decoding, along with DTSNeo 6 upmixer for 2-channel audio signals to create a full 5.1 surround sound experience.

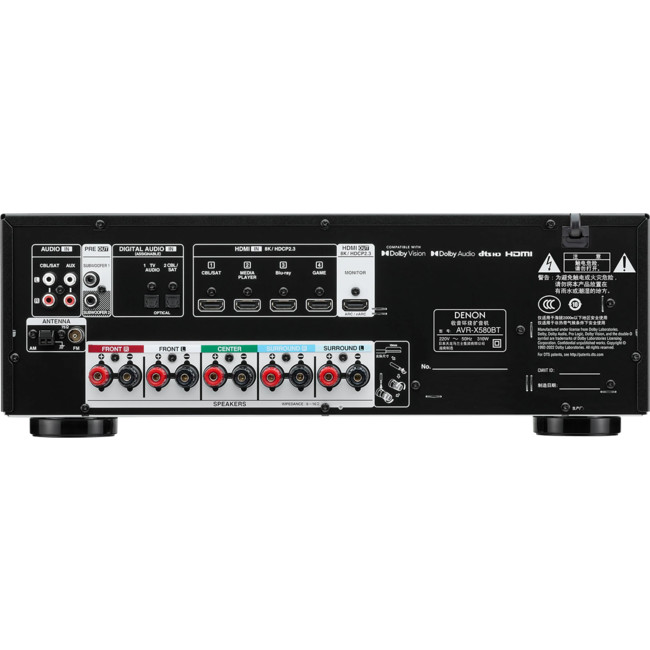

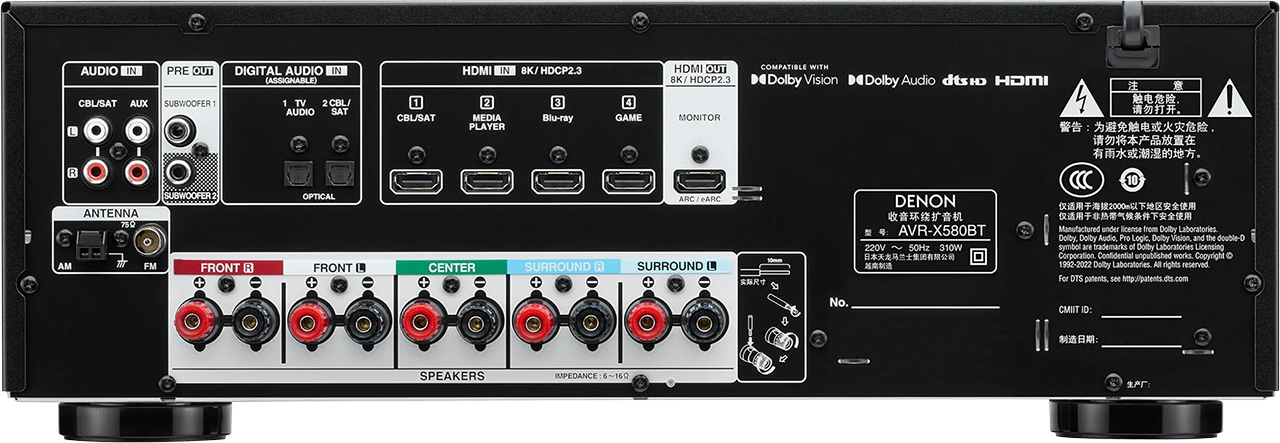

HDMI Connectivity with ARC/eARC

Supports the latest technology on all HDMI inputs and the output. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection. eARC provides HD and 3D audio transmission such as Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is limited to conventional 5.1ch audio formats or PCM.

8K / HDCP 2.3

Enjoy pristine picture quality on your 8K TV or projector. 8K/60Hz pass-through and 8K upscaling on 1080p or 4K content is supported on all four HDMI inputs and one output. Supports HDCP 2.3, the latest copy protection standard, for peace of mind when streaming copy protected content.

Brilliant color from HDR 10

Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10 pass-through. HLG offers HDR technology overbroadcast content. Both Dynamic HDR and HDR10 use dynamic metadata to optimize shadows and highlights as screens change.

Dolby Vision

Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen. Compatible with Dolby Vision so you can enjoy Dolby Vision content from a compatible source device and TV.

Next-generation gaming

Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for smooth, lagfree gaming experience when connected with the compatible gaming devices.

Wireless music streaming via Bluetooth®

Enjoy listening to your favourite eaudio content wirelessly from your smart devices.

High-resolution audio via USB input

Discover the incredible fidelity of high-resolution audio tracks and enjoy music as the artist intended. A front USB port supports up to 24bit/192kHz Hi-Res audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.

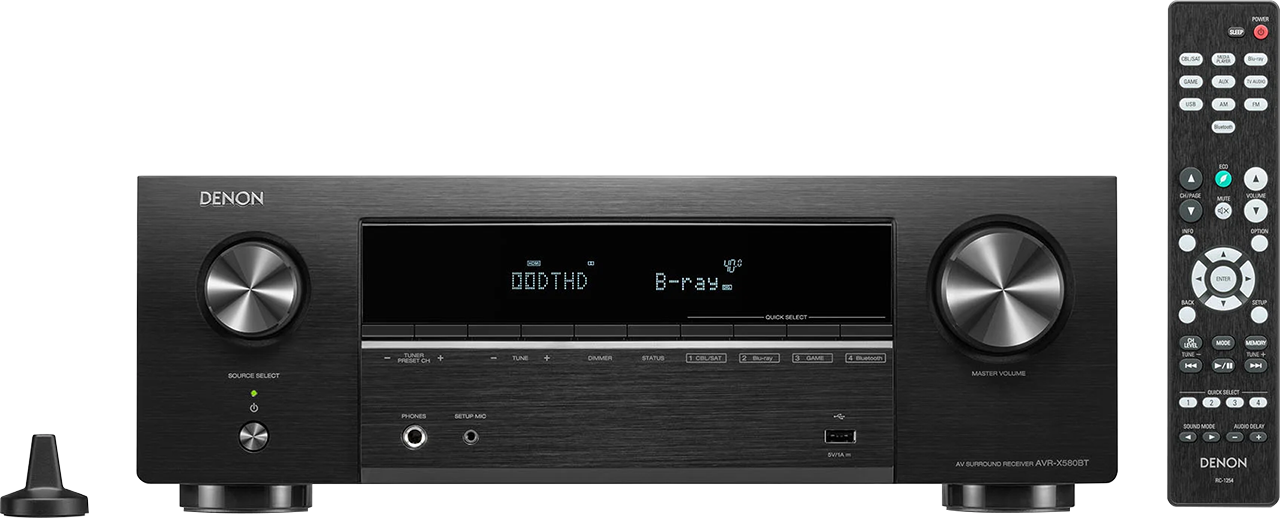

Quick Select

Press one of the four QuickSelect buttons on the front panel to easily store andretrieve your favorite audio settings, such as an input source, volume level, or sound mode. You can also access QuickSelect buttons on the Denon 500 series remote app downloaded on your phone.

Denon 500 Series Remote App

This iOS or Android control app allows you to turn the receiver on and off, select an inputsource, adjust volume level, and browse music from your phone or in a USB drive when connected to the receiver.

Dual subwoofer outputs

Immerse yourself in evenly distributed, accurate bass. Two subwoofer outputs smooth outlow frequencies and provide better dispersion. No audible peaks or dips just powerful, room-filling bass.

Guided Setup Asisstant on TV

Award-winning Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen to connect your speakers, perform speaker measurements, and connect source devices.

Auto Setup and Room EQ

As part of setup, follow the instructions on your TV to complete speaker setup and measurement using the included microphone. The receiver uses the measurements to optimize sound for the room, bringing the best out of your system. Just sit back and enjoy great sound.



Specifications

AUDIO
Front 70 W 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) 90 W 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Centre 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround 70 W 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) 90 W 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output Connectors 6 – 16 Ω/ohms
ANALOGUE
Input sensitivity / Input impedance: 200 mV/47 kΩ/kohms
Frequency response: 10 Hz – 100 kHz 1, −3dB (Direct mode)
Signal to noise 98 dB (IHF–A weighted, Direct mode)
TUNER SECTION FM AM
  (Note: V at 75 Ω/ohms, 0 dBf = 1 x 10–15W)
Frequency range: 87.5 MHz – 108.0 MHz 522 kHz – 1611 kHz
Effective Sensitivity 1.2 V (12.8 dBf) 18 V
50dB Sensitivity MONO – 2.8 V (20.2 dBf)
S/N ratio

MONO – 70 dB (IHF–A weighted, Direct mode)

STEREO – 67 dB (IHF–A weighted, Direct mode)


Distortion

MONO – 0.7 % (1 kHz)

STEREO – 1.0 % (1 kHz)


BLUETOOTH SECTION
Communication System Bluetooth Version 4.2
Transmission power 0.25 - 10 mW (Class 1)
Maximum range Approx. 10 m in line of sight
Frequency band 2.4 GHz
Modulation Scheme FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.6


Corresponding Codec

SBC, AAC


Transmission range (A2DP) 20 Hz - 20,000 Hz
