HDMI 4X4 18G MATRIXHDCP2.2 SPDIF RS232

  • Code:

    64510365
  • Model:

    HDMIMX44V18G
  • Brand:

  • Unit:

    Each
  • Weight:

    1.0870kg
  • Stock:

    16
  • +
Be the first to review!

Freight Estimator Enter 4 digit postcode


Your Price
$499.00



Features

  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Bandwidth upto 18Gbps
  • HDCP2.2 input ,HDCP2.2 output
  • HDCP1.4 input, HDCP1.4 output
  • Support HDR10
  • 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
  • Any one of the 4 Ultra HD sources to any one of the 4Ultra HD displays
  • Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
  • Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
  • Support firmware updating through USB port
  • Unit size: L216XW105XH34mm

Specifications

  • Operating Temperature: 23°F to 113°F (-5°C to 45°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Resolution: 480p@60hz,576P@50hz,720P@60hz,1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
  • HDCP Compliant: HDCP2.2 and HDCP1.4
  • Output: Video HDMI2.0 and HDMI 1.4
  • Audio Format: Supported PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos
  • RS-232 serial port: 3PIN terminal block connectors
  • Ethernet port: (IP control) RJ45, female
  • IR Ext port: 1x3.5mm stereo jack
  • USB port: Micro 5P female
  • Bandwidth: 18 Gbps
  • Default IP: 192.168.1.168
  • Rack-Mountable Rack ears included
  • Dimensions(WxHxD): L216XW105XH34mm
  • Net Weight: 0.72kg
  • Power consumption:13W(Max)

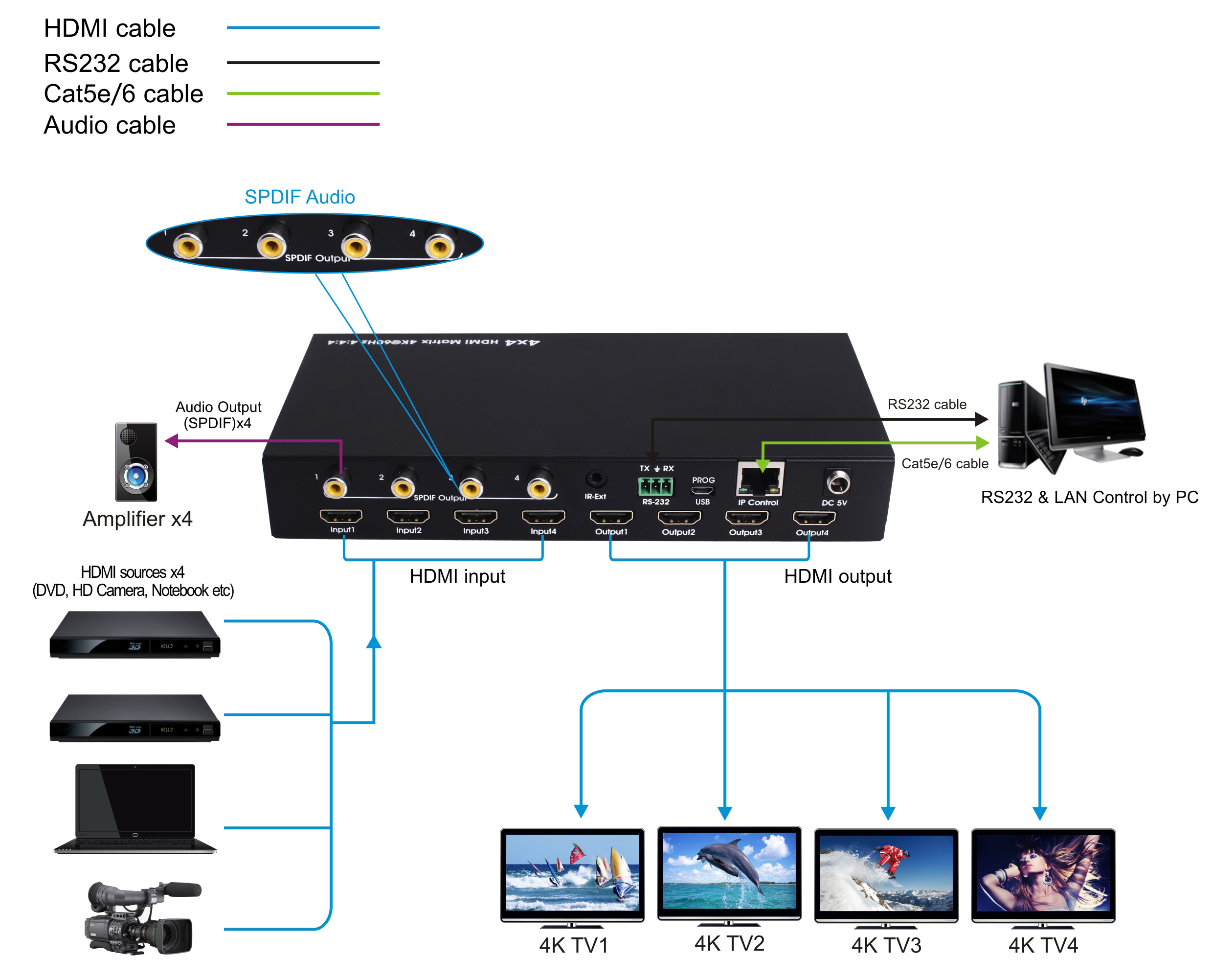

Wiring diagram
