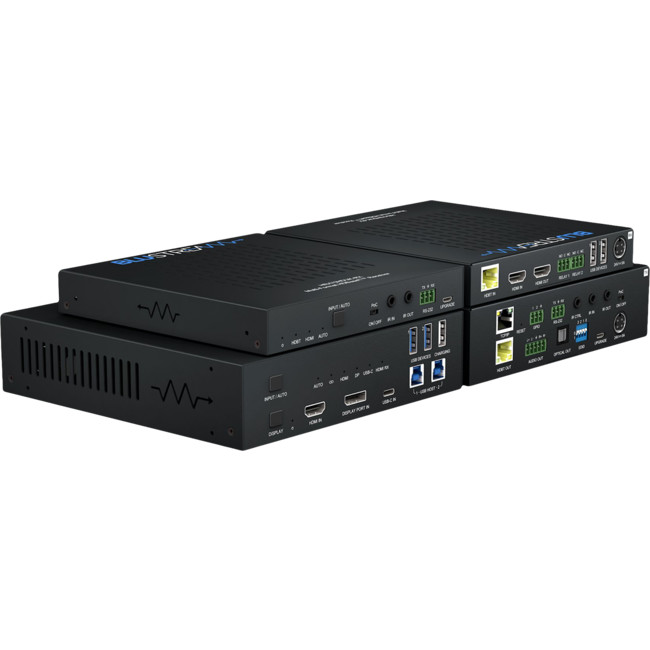

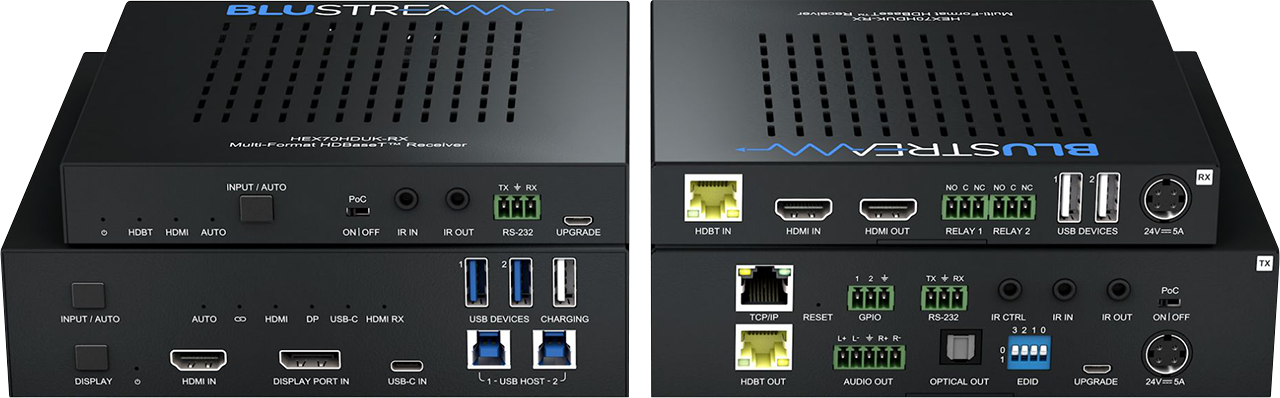

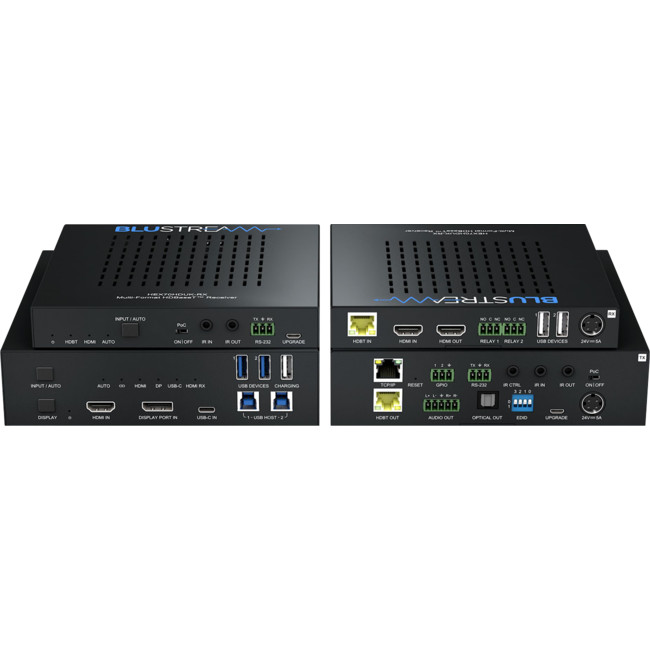

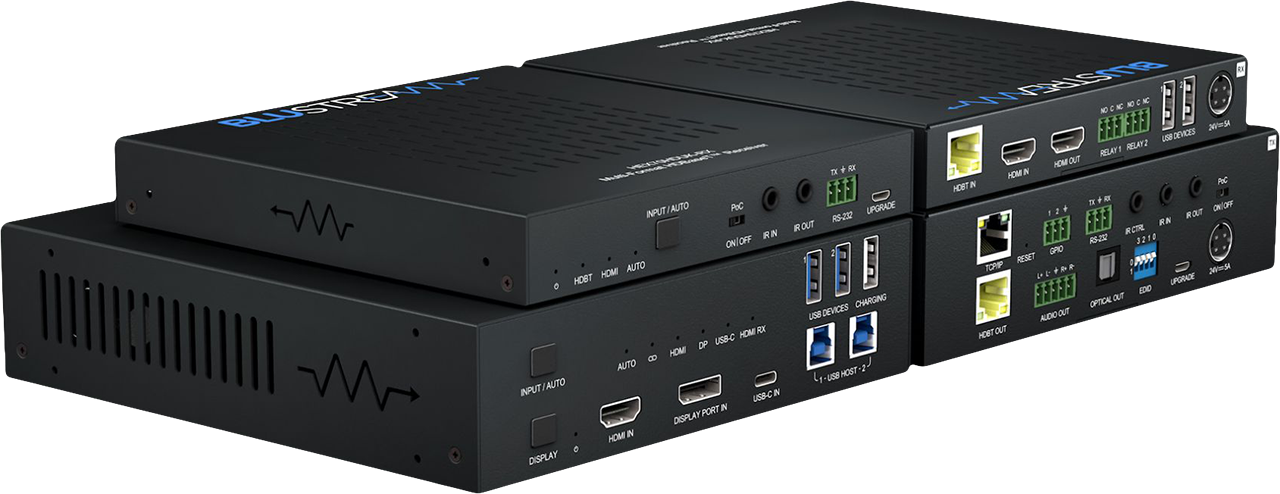

Blustream HEX70HDUK-KIT Multi Format HDBaseT™ CSC Extender Set
The HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort™ up to lengths of 40m (70m at 1080p) over a single CAT cable.
The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.
The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.
Key Features
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable.
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR.
- Features 1 × HDMI, 1 × USB-C and 1 × DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection.
- Features 1 × local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display.
- Supports 4K 60Hz 4:4:4 UHD video up to 40m.
- Extends HDMI 1080p up to a distance of 70m over single CAT cable.
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission.
- Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*¹.
- Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2.
- Features 2 × USB-Type A devices (RX: peripherals), 2 × USB-Type A devices (TX: peripherals) and 2 × USB Type-B (TX: host source specific) that support a combined data transmission bandwidth of up to 250Mbps.
- USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device.
- Independent USB Type-A connection to support charging only of devices up to 5V 2A.
- Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently*².
- Bi-directional IR pass-through.
- Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232.
- Web interface module for control and configuration of HEX70HDUK-KIT.
- Control via front panel, IR, RS-232 and TCP/IP.
- Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end.
- Advanced EDID ad HDCP management.
*1: USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device.
*2: Analogue audio breakout supports 2ch PCM only.
Specifications

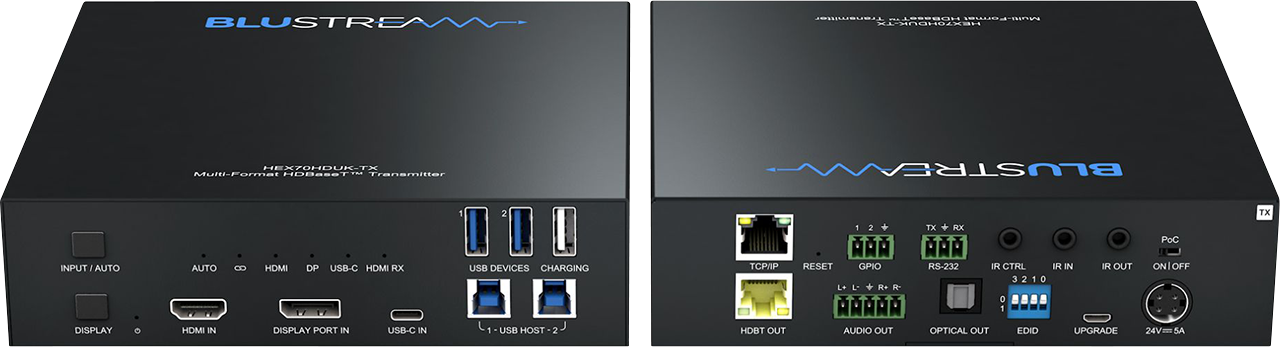

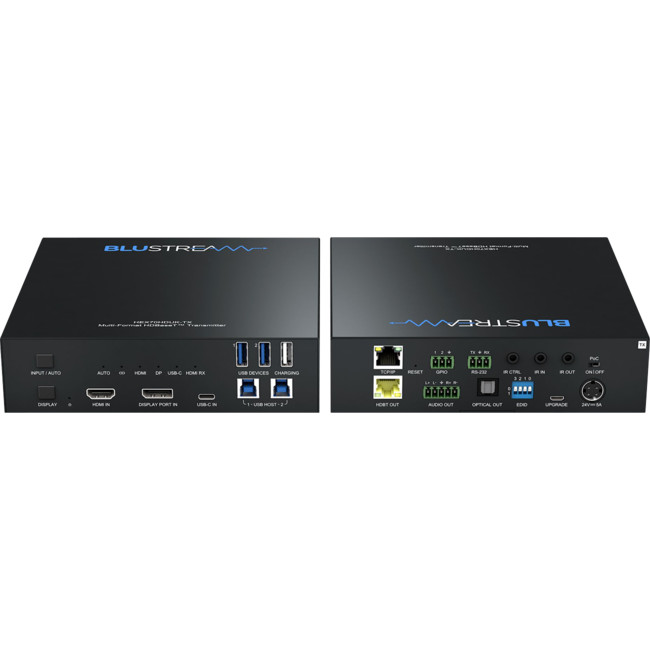

HEX70HDUK-TX
| Video Input Connectors | - 1 × HDMI Type A, 19-pin, female
- 1 × USB-C Type C
- 1 × DisplayPort™
|
|---|
| Video Output Connectors | 1 × HDBaseT™ RJ45 connector |
|---|
| RS-232 Serial Port | 1 × 3-Pin Phoenix connector |
|---|
| TCP/IP Control | 1 × RJ45, female |
|---|
| IR Input Ports | 2 × 3.5mm stereo jack |
|---|
| IR Output Ports | 1 × 3.5mm mono jack |
|---|
| USB Ports | - 3 × USB Type-A (1 × for charging only)
- 2 × USB Type-B
|
|---|
| EDID | 4-pin DIP switch |
|---|
| Product Upgrade | 1 × Micro USB, female |
|---|
| Local Power Input | 1 × 24V/5A 4-pin DIN connector |
|---|
| Casing Dimensions (W×H×D) | 183mm × 44mm × 173mm |
|---|

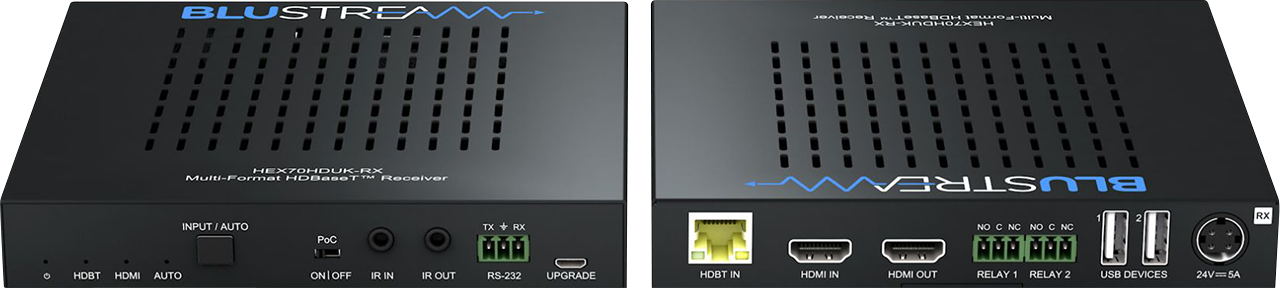

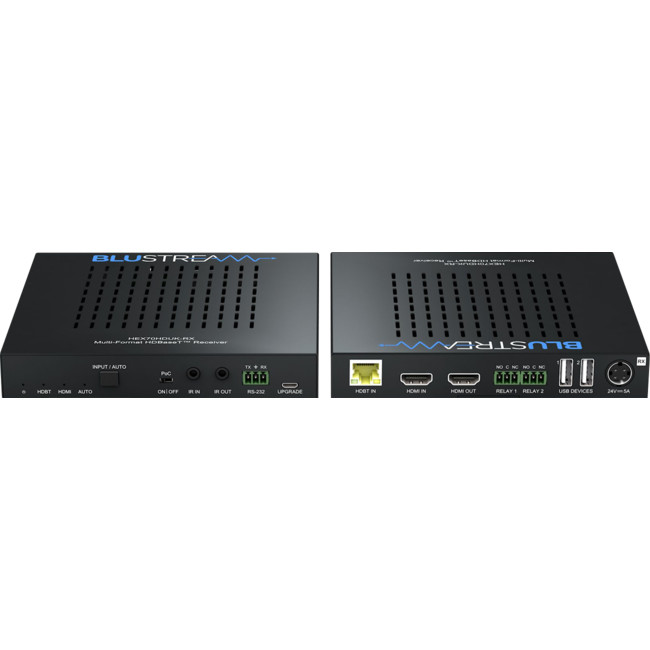

HEX70HDUK-RX
| Video Input Connectors | - 1 × HDMI Type A, 19-pin, female
- 1 × HDBaseT™ RJ45 connector
|
|---|
| Video Output Connectors | 1 × HDMI Type A, 19-pin, female |
|---|
| RS-232 Serial Port | 1 × 3-pin Phoenix connector |
|---|
| Relay Control | 2 × 3-pin Phoenix connector |
|---|
| IR Input Ports | 1 × 3.5mm stereo jack |
|---|
| IR Output Ports | 1 × 3.5mm mono jack |
|---|
| USB Ports | 2 × USB Type-A |
|---|
| EDID | 4-pin DIP switch |
|---|
| Product Upgrade | 1 × Micro USB, female |
|---|
| Local Power Input | 1 × 24V/5A 4-pin DIN connector |
|---|
| Power Supply | 24V/5A 4-pin DIN connector |
|---|
| Operating Temperature | −5°C to +55°C (32°F to 104°F) |
|---|
| Storage Temperature | −25°C to +70°C (−4°F to 140°F) |
|---|
| Casing Dimensions (W×H×D) | 155mm × 24mm × 155mm |
|---|
| Shipping Weight | 3.35kg |
|---|
Box Contents
- 1 × HEX70HDUK-TX
- 1 × HEX70HDUK-RX
- 1 × 24V/5A DC power supply
- 1 × USB-A to USB-B cable
- 1 × IRE1 emitter
- 1 × IRR receiver
- 1 × RS-232 control cable
- 2 × Mounting kit
- 1 × Quick Reference Guide
*HEX70HDUK-TT Table Top Enclosure sold separately.
