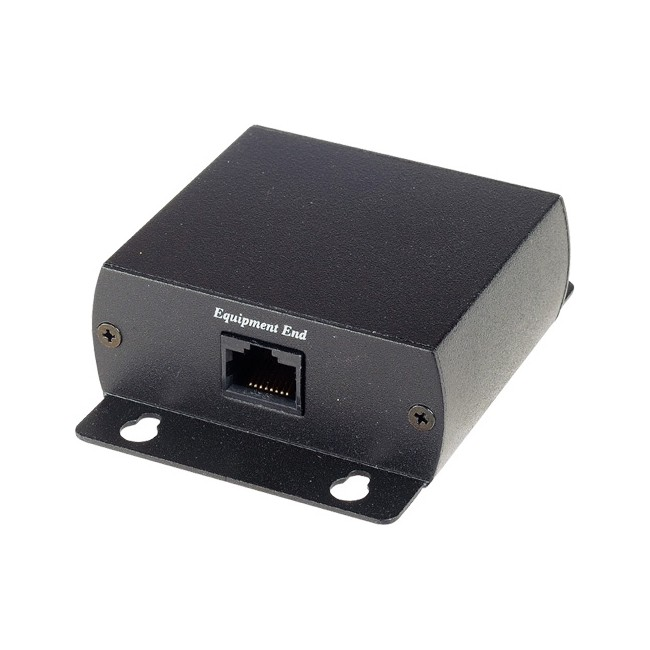

SP006 NETWORK SURGE PROTECTOR

Code: 43151055

0.1760 kg
9328202030283
EACH
4 IN
STOCK
TRADE ALERT!
$99 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

SP006 SURGE PROTECTOR

Specifications:

  • RJ45 Jack to RJ45 Jack, Hi Frequency for both CCTV and CATV use
    • Four Pairs protection
  • Surge Protection Attack Time: 1 ns
    • Maximum Surge Current:4 KV
    • Surge Life:300 surges of 100Amps
  • Normal Resistance Across Coax: 10,000 M£[
    • Surge ResistanceApprox: 0£[
  • BAND PASS: 0~1 GHZ
  • Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps
    • Insertion Loss:Less than 0.2 dB
    • Return Loss (75 ohms):16dB
  • Return Loss (75 ohms): 16dB
    • Dimension: 87 x 67 x 27 mm
    • WEIGHT: 134g

Features:

  • Performs a different function than grounding requirements.
  • Protects equipment from high voltage surges from nearby lightning strikes.
  • Two stage protection: under 1ns-90V, over 10ns-12V.
  • Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR...etc.
  • Protects UTP Twisted Pair transmission products.
